Control Modules In Front Part Of Vehicle, Overview

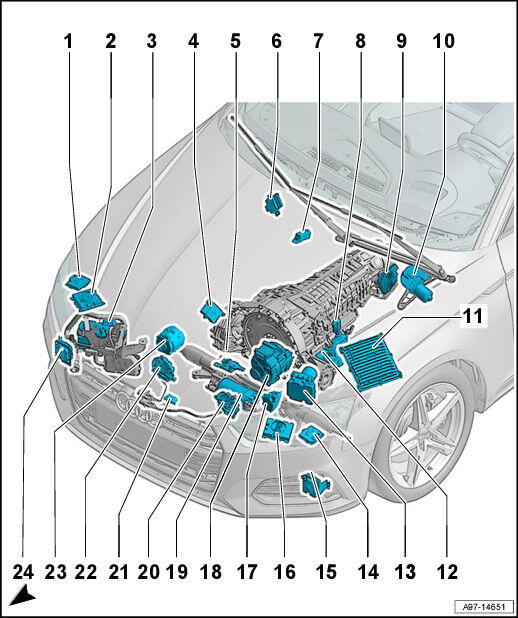

Fig 1: Identifying Control Modules In Front Part Of Vehicle

Courtesy of AUDI OF AMERICA, LLC

1. Right light control module -J1023-
   • Component Location, through September 2019 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2-, THROUGH SEPTEMBER 2019
2. Right LED Headlamp Power Output Stage 1 -A27-
   • Component Location, through September 2019 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2-, THROUGH SEPTEMBER 2019
   • Component Location (8EX), from October 2019 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2-, (8EX) FROM OCTOBER 2019
   • Component Location (8IY, 8IZ), from October 2019 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2-, (8IY, 8IZ) FROM OCTOBER 2019
3. Auxiliary Heater Control Module -J364-
   • Component Location Auxiliary Heater Control Module -J364- COMPONENT LOCATION AND CONNECTOR END VIEW
   • Pin Arrangements Pin Arrangements Auxiliary Heater Control Module -J364-
4. Automatic Glow Time Control Module -J179-
   • Component Location Automatic Glow Time Control Module -J179-, FOR VEHICLES WITH ENGINE CODE DEWA, DEWB
   • Pin Arrangements Pin Arrangements Automatic Glow Time Control Module -J179-, FOR VEHICLES WITH ENGINE CODE DEWA, DEWB
5. NOX Sensor Control Module -J583- / -GX30-
   • Component Location NOX Sensor Control Module -J583- / -GX30- COMPONENT LOCATION AND CONNECTOR END VIEW
   • Pin Arrangements Pin Arrangements NOX Sensor Control Module -J583- / -GX30-
6. Structure-Borne Sound Control Module -J869-
   • Component location left-hand drive vehicles Structure-Borne Sound Control Module -J869- COMPONENT LOCATION AND CONNECTOR END VIEW
   • Pin Arrangements Pin Arrangements Structure-Borne Sound Control Module -J869-
   • Component location right-hand drive vehicles mirror-inverted
7. Automatic Glow Time Control Module -J179-
   • Component Location Automatic Glow Time Control Module -J179-, FOR VEHICLES WITH ENGINE CODE DFVA, CZHA, DESA, DETA, DETB, DEUA, DEUB, DEUC, CRTC, CSWB, DCPC, DCPE
   • Pin Arrangements Pin Arrangements Automatic Glow Time Control Module -J179-, FOR VEHICLES WITH ENGINE CODE DFVA, CZHA, DESA, DETA, DETB, DEUA, DEUB, DEUC, CRTC, CSWB, DCPC, DCPE
   • Component Location and Pin Arrangements for 3.0L Diesel Engine, Engine code DEWA, DEWB  . Automatic Glow Time Control Module -J179-
   • Component Location and Pin Arrangements for 3.0L Diesel Engine, Engine code DMKC, DMGA  . Automatic Glow Time Control Module -J179-
8. Direct Shift Gearbox (DSG) Mechatronic -J743-
   • Component Location Direct Shift Gearbox (DSG) Mechatronic -J743- (7-SPEED DIRECT SHIFT GEARBOX)
   • Pin Arrangements Pin Arrangements Direct Shift Gearbox (DSG) Mechatronic -J743-
9. All-Wheel Drive Control Module -J492-
   • Component location on transmission All-Wheel Drive Control Module -J492- COMPONENT LOCATION AND CONNECTOR END VIEW
   • Pin Arrangements Pin Arrangements All-Wheel Drive Control Module -J492-
10. Wiper Motor Control Module -J400-
    • Component location left-hand drive vehicles Wiper Motor Control Module -J400- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Component location right-hand drive vehicles mirror-inverted
    • Pin Arrangements, left-hand drive vehicles Pin arrangements, left-hand drive, Wiper Motor Control Module -J400-
    • Pin Arrangements right-hand drive vehicles Pin arrangements, right-hand drive, Wiper Motor Control Module -J400-
11. Engine Control Module (ECM) -J623-
    • Component location, 196-pin Engine Control Module (ECM) -J623-, 196-PIN
    • Component location, 315-pin Engine Control Module (ECM) -J623-, 315-PIN
    • Component location, 280-pin Engine Control Module (ECM) -J623-, 280-PIN
    • Component location, 336-pin Engine Control Module (ECM) -J623-, 336-PIN
12. Transmission Control Module (TCM) -J217-
    • Component Location Transmission Control Module (TCM) -J217-
    • Pin Arrangements Pin Arrangements Transmission Control Module (TCM) -J217-
13. ABS Control Module -J104-
    • Component Location ABS Control Module -J104- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin Arrangements Pin Arrangements ABS Control Module -J104-
14. Left light control module -J1018-
    • Component Location, through September 2019 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2-, THROUGH SEPTEMBER 2019
15. Distance Regulation Control Module 2 -J850-
    • Component Location Distance Regulation Control Module 2 -J850- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin Arrangements Pin Arrangements Distance Regulation Control Module 2 -J850-
16. Left LED Headlamp Power Output Stage 1 -A31-
    • Component Location, through September 2019 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2-, THROUGH SEPTEMBER 2019
    • Component Location (8EX), from October 2019 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2-, (8EX) FROM OCTOBER 2019
    • Component Location (8IY, 8IZ), from October 2019 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2-, (8IY, 8IZ) FROM OCTOBER 2019
17. Control unit for electric compressor -J1123-
    • For vehicles with 48 V hybrid system
    • Component Location Control unit for electric compressor -J1123- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin Arrangements Pin Arrangements Control unit for electric compressor -J1123-
18. Starter generator -C29-
    • for vehicles with 12 V hybrid system
    • for vehicles with 48 V hybrid system  . Starter generator -C29-
    • Component Location Starter generator -C29-, FOR VEHICLES WITH 12 V HYBRID SYSTEM
    • Pin Arrangements Pin Arrangements Starter generator -C29-
19. Power Steering Control Module -J500-
    • Component Location Power Steering Control Module -J500- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin Arrangements Pin Arrangements Power Steering Control Module -J500-
20. Coolant Fan Control (FC) Control Module 2 -J671-
    • Component Location with 800 watt or 1200 watt coolant fan Coolant fan control module -J293- / Coolant Fan Control (FC) Control Module 2 -J671-, WITH 800 WATT OR 1200 WATT
    • Pin Arrangements with 800 watt or 1200 watt coolant fan Pin Arrangements Radiator Fan Control Module -J293- / -J671-, with 800 watt or 1200 watt
21. Automatic Glow Time Control Module -J179-
    • Component Location Automatic Glow Time Control Module -J179-, FOR VEHICLES WITH ENGINE CODES DMKC, DMGA
    • Pin Arrangements Pin Arrangements Automatic Glow Time Control Module -J179-, FOR VEHICLES WITH ENGINE CODES DMKC, DMGA
22. Coolant fan control module -J293-
    • Component Location with 400 watt or 600 watt coolant fan Coolant fan control module -J293-, WITH 400 WATT OR 600 WATT
    • Component Location with 800 watt or 1200 watt coolant fan Coolant fan control module -J293- / Coolant Fan Control (FC) Control Module 2 -J671-, WITH 800 WATT OR 1200 WATT
    • Pin Arrangements with 400 watt or 600 watt coolant fan Pin Arrangements Radiator Fan Control Module -J293-, with 400 watt or 600 watt
    • Pin Arrangements with 800 watt or 1200 watt coolant fan Pin Arrangements Radiator Fan Control Module -J293- / -J671-, with 800 watt or 1200 watt
23. Starter generator -C29-
    • For vehicles with 48 V hybrid system
    • Component Location Starter generator -C29-, FOR VEHICLES WITH 48 V HYBRID SYSTEM
    • Pin Arrangements Pin Arrangements Starter generator -C29-
24. Distance Regulation Control Module -J428-
    • Component Location Distance Regulation Control Module -J428- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin Arrangements Pin Arrangements Distance Regulation Control Module -J428-
