NOX Sensor Control Module -J583- / -GX30- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

Near frontend.

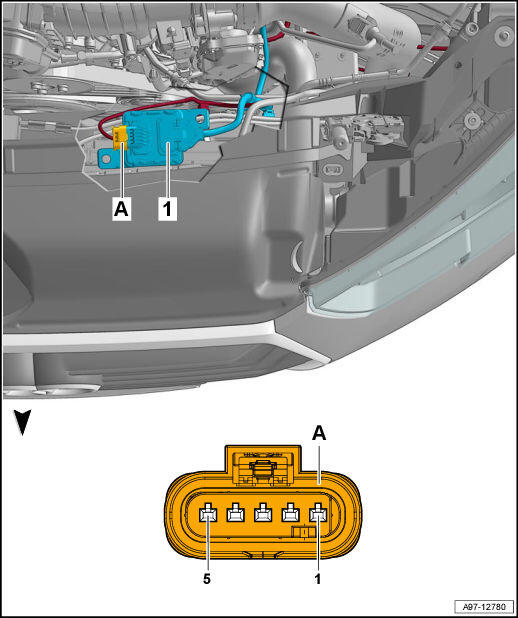

Fig 1: NOX Sensor Control Module -J583- / -GX30- Component Location And Connector End View
GWWA97-12780Courtesy of AUDI OF AMERICA, LLC
  1. NOX Sensor Control Module -J583- / -GX30-
  1. 5-Pin Connector -T5w-, black
