Particulate sensor -G784- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

On underbody

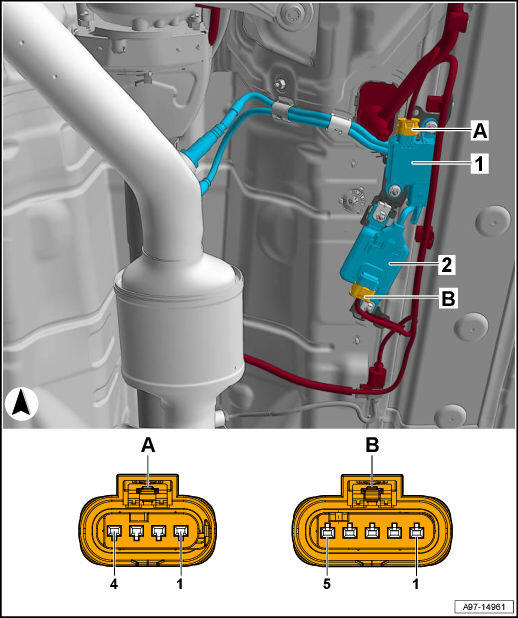

Fig 1: Particulate Sensor -G784- Component Location And Connector End View
GWWA97-14961Courtesy of AUDI OF AMERICA, LLC
  1. Particulate sensor -G784-
  2. Ignore
  1. 4-Pin Connector -T4s-, black
  2. Ignore
