Roof Electronics Control Module -J528-, CABRIOLET: Notes

Component Location

in Front roof module -WX3-.

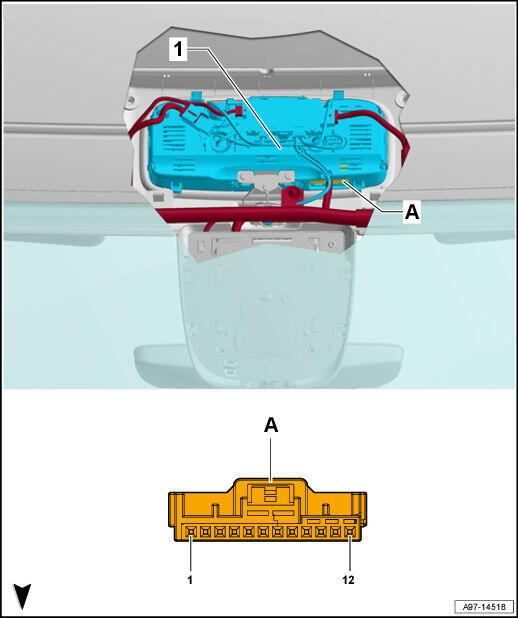

Fig 1: Roof Electronics Control Module -J528-, Cabriolet Component Location And Connector End View
GWWA97-14518Courtesy of AUDI OF AMERICA, LLC
  1. Roof Electronics Control Module -J528-
  1. 12-Pin Connector -T12e-, black
