Seat Belt Microphone Control Module -J886- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

Below left front seat.

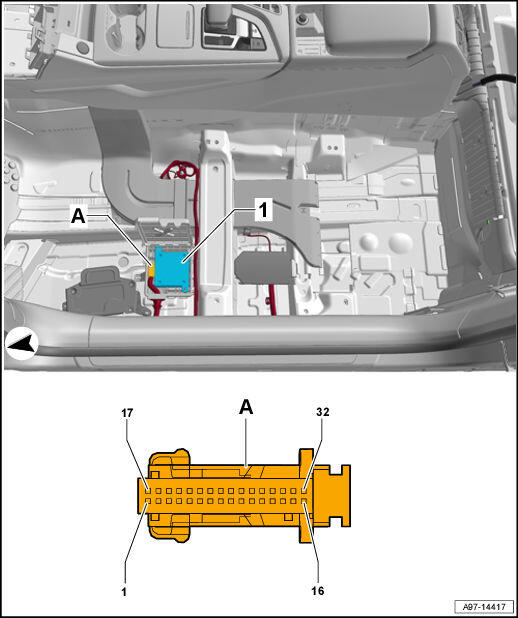

Fig 1: Seat Belt Microphone Control Module -J886- Component Location And Connector End View
GWWA97-14417Courtesy of AUDI OF AMERICA, LLC
  1. Seat Belt Microphone Control Module -J886-
  1. 32-Pin Connector -T32h-, black
