Part II

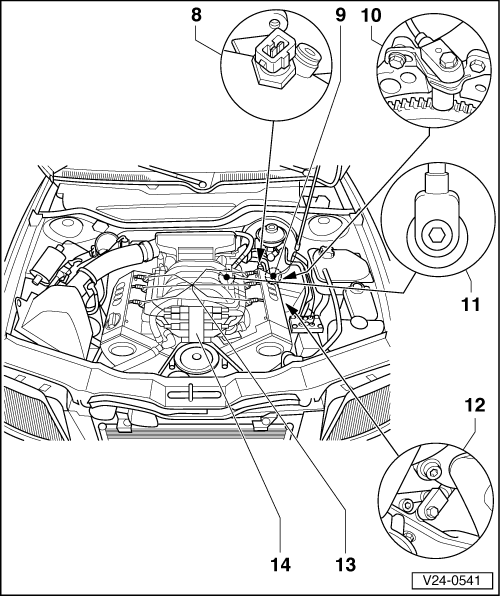

Fig 1: Identifying Engine Components (2.8L, AFC/AAH) (2 Of 3)
GWWV24-0541Courtesy of AUDI OF AMERICA, LLC
  1. 8 -  Engine coolant temperature sensor -G62-
  2. 9 -  Heated oxygen sensor 2 -G108-
  3. 10 -  Engine speed sensor -G28-
  4. 11 -  Knock sensor 2 -G66-
  5. 12 -  Crankshaft position sensor -G4-
  6. 13 -  Fuel Injectors
  7. 14 -  Ignition Coils
