Lane Change Assistance Control Module 2 -J770- Component Location And Connector End View: Notes

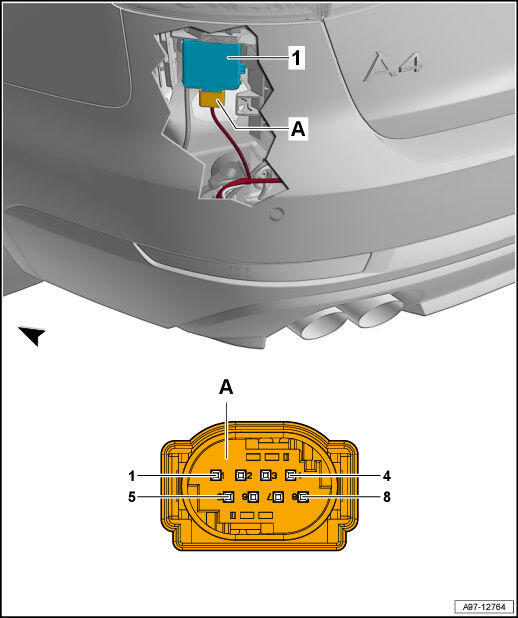

Component Location
Behind left rear bumper trim.
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Lane Change Assistance Control Module 2 -J770-
- A -
8-Pin Connector -T8q-, black
