Engine Control Module (ECM) -J623-, 196-PIN

Component Location

In engine compartment, left.

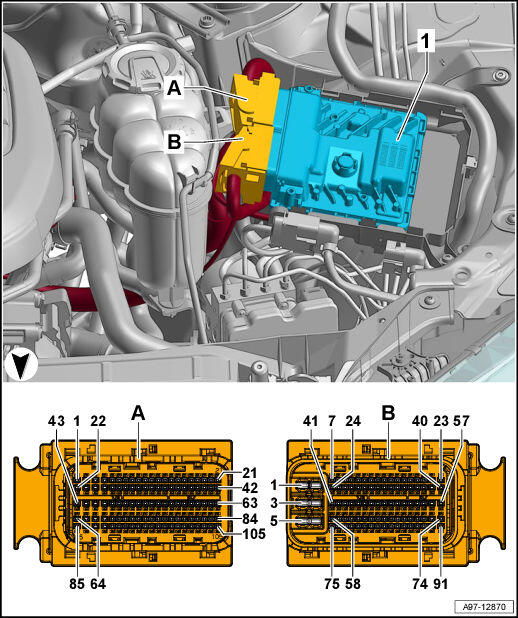

Fig 1: Engine Control Module (ECM) -J623-, 196-Pin Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1 - Engine Control Module (ECM) -J623-
A - 105-Pin Connector -T105-, black
B - 91-Pin Connector -T91-, black
