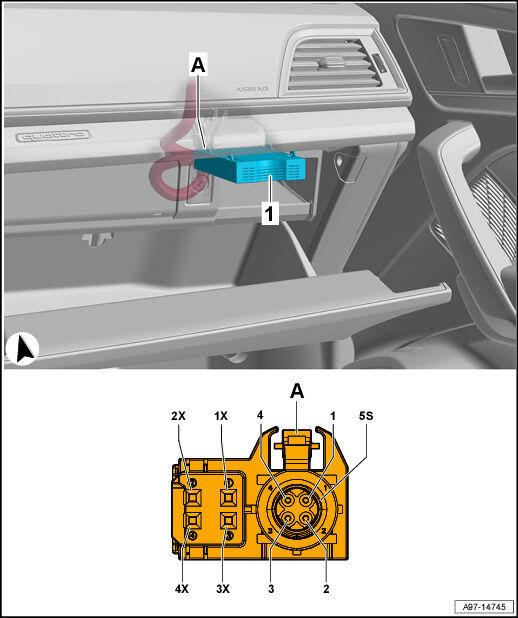

Android Operating System Control Module -J1243- Component Location And Connector End View
Component Location
In glove compartment
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Android Operating System Control Module -J1243-
- A -
9-Pin Connector -T9r-, blue
