Close Range Communication Control Module 2 -J1170- Component Location And Connector End View: Notes

Component Location

Below center console.

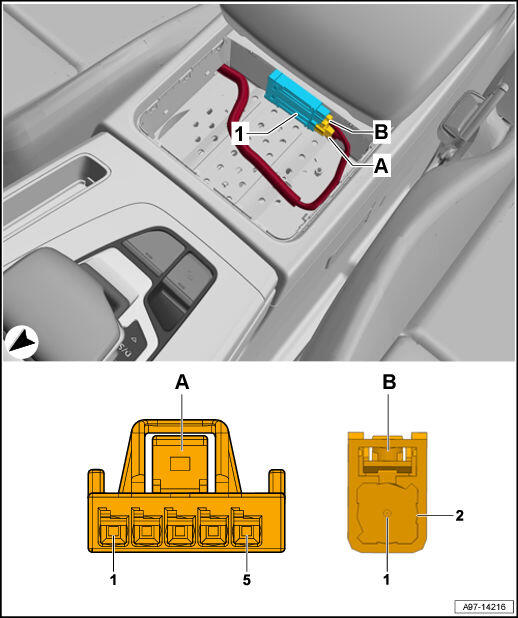

Fig 1: Close Range Communication Control Module 2 -J1170- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1 - Close Range Communication Control Module 2 -J1170-
A - 5-Pin Connector -T5cc-, black
B - 2-Pin Connector -T2nf-, black
