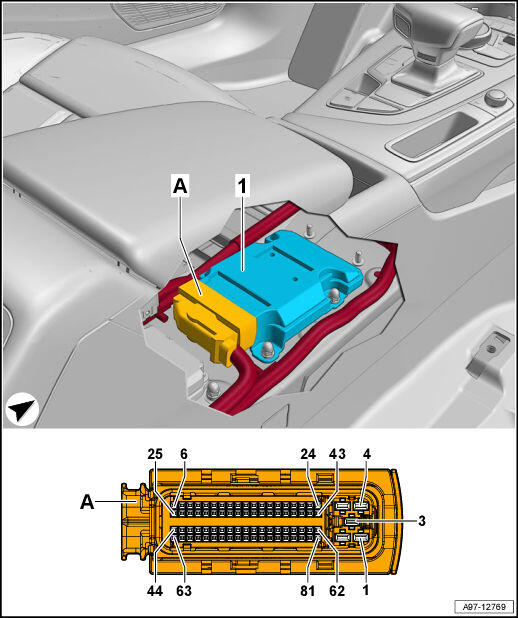

Drivetrain Control Module -J775- Component Location And Connector End View: Notes
Component Location
Below front center console on centre tunnel.
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Drivetrain control module -J775-
- A -
81-Pin Connector -T81-, black
