Windshield Projection Head Up Display Control Module -J898- Component Location And Connector End View: Notes

Component Location

In driver's instrument panel.

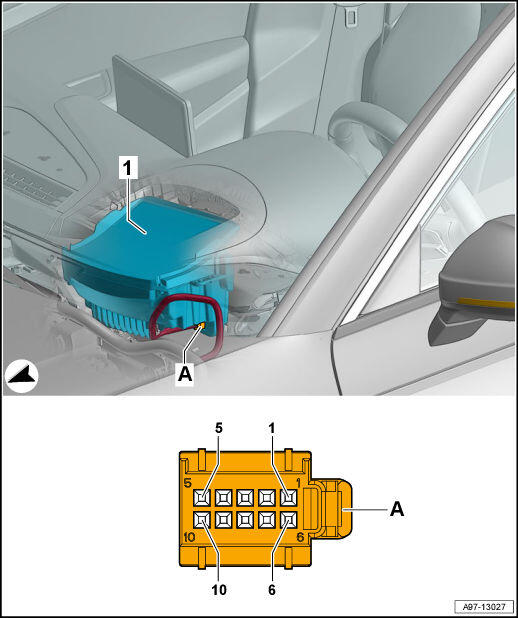

Fig 1: Windshield Projection Head Up Display Control Module -J898- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1 - Windshield Projection Head Up Display Control Module -J898-
A - 10-Pin Connector -T10d-, black
