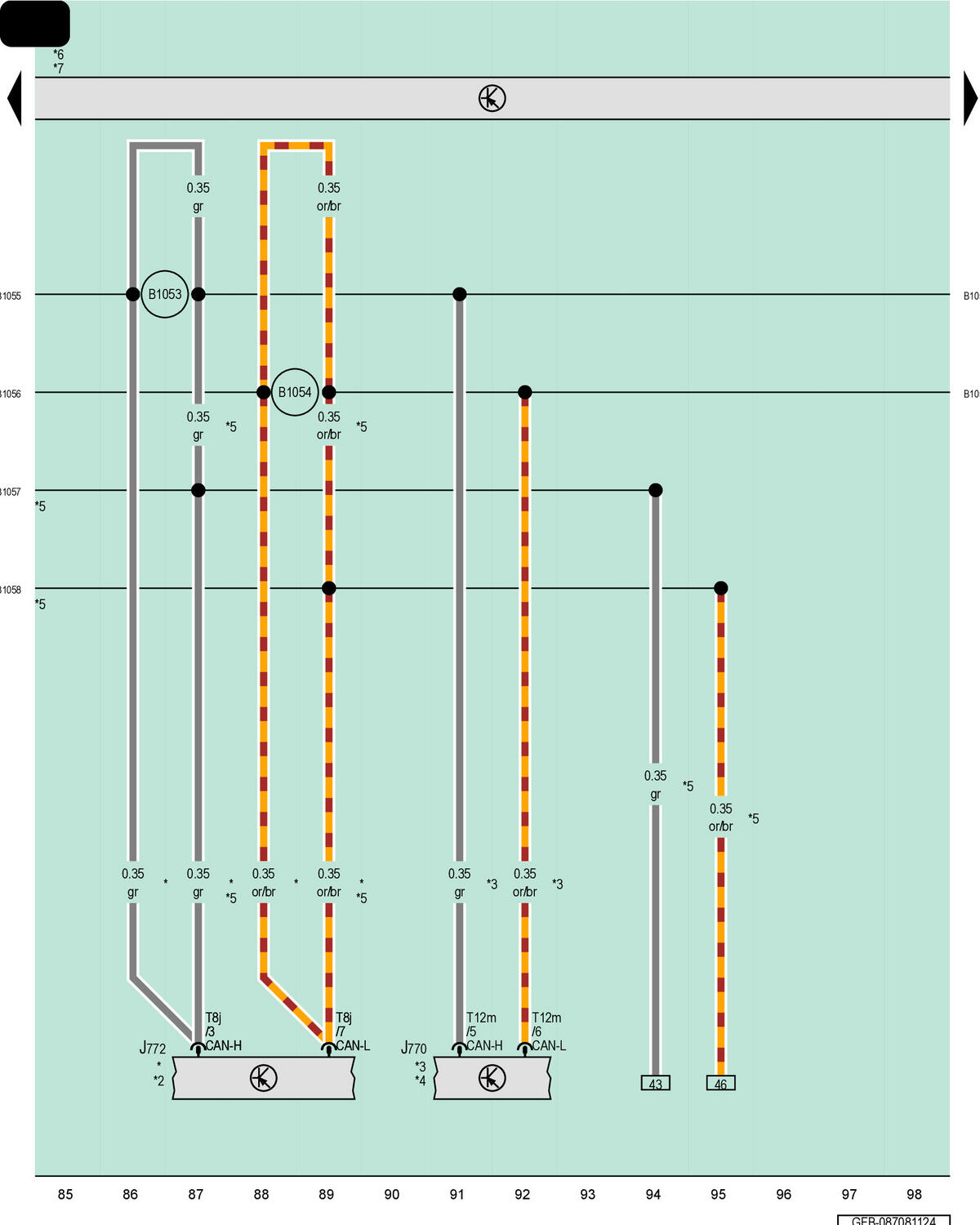

Lane Change Assistance Control Module 2, Rearview Camera System Control Module, Control Module For Drive And Suspension Functions
J770
Lane Change Assistance Control Module 2
J772
Rearview Camera System Control Module
J1312
Control Module for Drive and Suspension Functions
T8j
8-Pin Connector, White
T12m
12-Pin Connector, Black
B1053
CAN Bus 5, J1312 High Connection 2 (in Main Wiring Harness)
B1054
CAN Bus 5, J1312 Low Connection 2 (in Main Wiring Harness)
B1055
CAN Bus 5, J1312 High Connection 3 (in Main Wiring Harness)
B1056
CAN Bus 5, J1312 Low Connection 3 (in Main Wiring Harness)
B1057
CAN Bus 5, J1312 High Connection 4 (in Main Wiring Harness)
B1058
CAN Bus 5, J1312 Low Connection 4 (in Main Wiring Harness)
*
For Vehicles with Rearview Camera System
*2
Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*3
For Vehicles with Lane Change Assistance
*4
Refer to Applicable Lane Change Assistance Wiring Diagram
*5
Sportback
*6
Refer to Applicable Electric Drive System, Engine/Motor Control Module Wiring Diagram
*7
Refer to the Applicable Adaptive Chassis DCC Wiring Diagram
