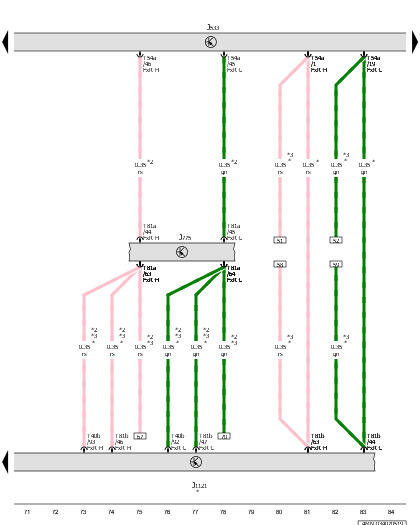

Data Bus On Board Diagnostic Interface, Drivetrain Control Module, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J775

Drivetrain Control Module

J1121

Driver Assistance Systems Control Module

T40b

40-Pin Connector, Black

T54a

54-Pin Connector, Black

T81a

81-Pin Connector, Black

T81b

81-Pin Connector, Black

*

For Driver Assistance System

*2

For Vehicles with Level Control System

*3

Depending on Equipment
