Steering Pump Overhaul: Reassembly

To reassemble, reverse disassembly procedure.

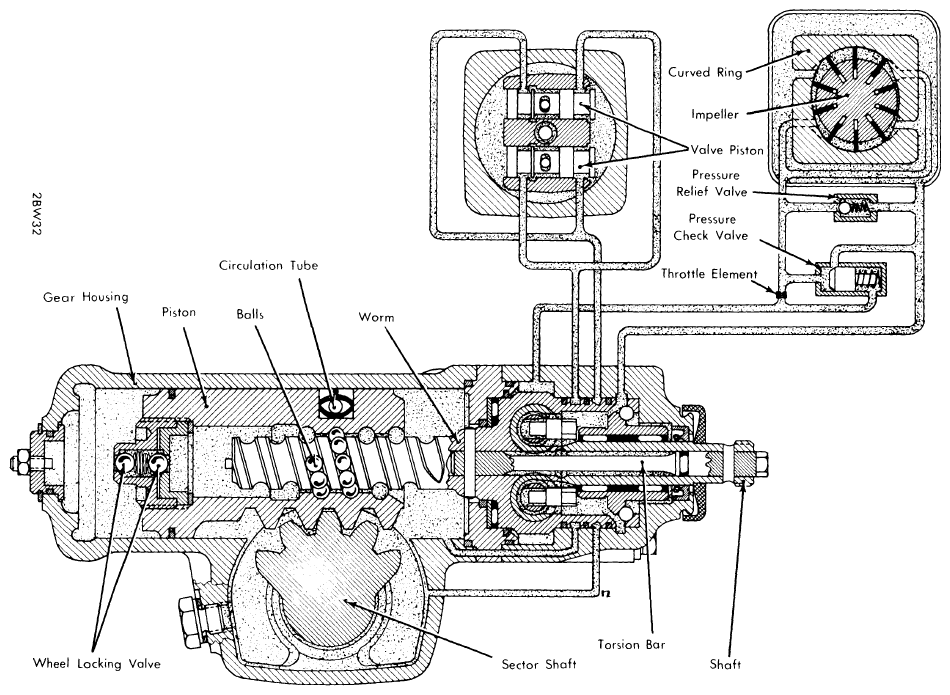

Fig 1: Power Steering Gear (Neutral Position)

Courtesy of BMW OF NORTH AMERICA, INC.

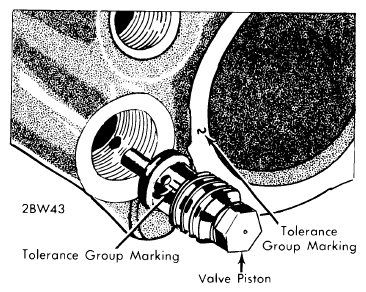

Fig 2: Pump Valve Piston

Courtesy of BMW OF NORTH AMERICA, INC.

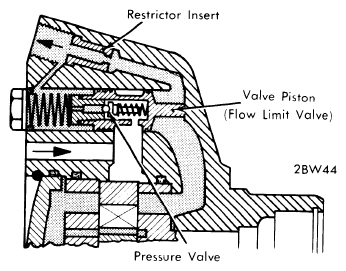

Fig 3: Restrictor Insert Location

Courtesy of BMW OF NORTH AMERICA, INC.

ADJUSTMENT TORQUE

Application	INCH Lbs. (cmkg)
Worm in Piston	1.7-3.5 (2-4)
Worm Bearing in Valve Housing	1.3-2.2 (1.5-2.5)
Total for Worm Gear	3.5-5.2 (4-6)
Worm in Intermediate Housing	0.9-1.7 (1-2)

TIGHTENING SPECIFICATIONS

Application	Ft. Lbs. (mkg)
Adjusting Screw Lock Nut	22 (3.0)
Valve Housing & Intermediate Cover	25 (3.5)
Universal Joint	19 (2.6)
Gear Housing	33 (4.6)
Steering Pump Mounting	17 (2.4)
Hose Connections	34 (4.7)
Pitman Arm	94 (13.0)
