Engine Control Module: Service and Repair

REMOVING AND INSTALLING CONTROL UNIT





- Open glove box.
- Pull off pins (1) of both retaining straps.





- Unscrew trim panel.





- Push back retainer (1) and pull off plug (2).
- Unscrew tour mounting bolts and take off control unit.





- See wiring diagram for plug connections

Installation Note:

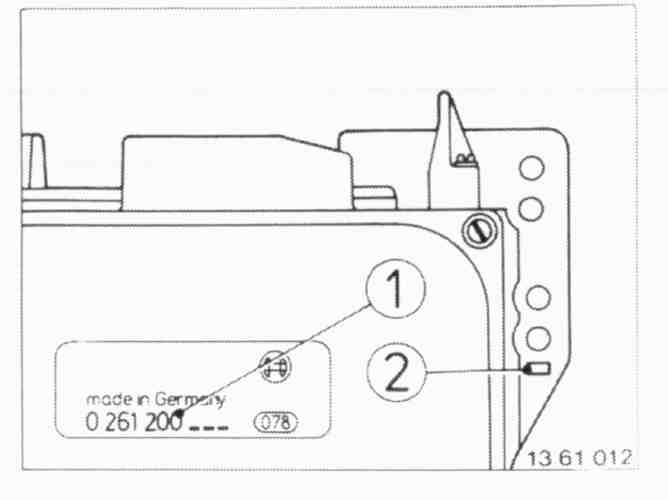

- Check code number (1) and manufacturing date (2).
