Connector Identification

For DME control unit connector identification, see Fig 1 . For additional connector identification, see Fig 2 -Fig 25 .

Fig 1: Motronic Control Unit Terminal Identification (55-Pin Connector)

G50H07000

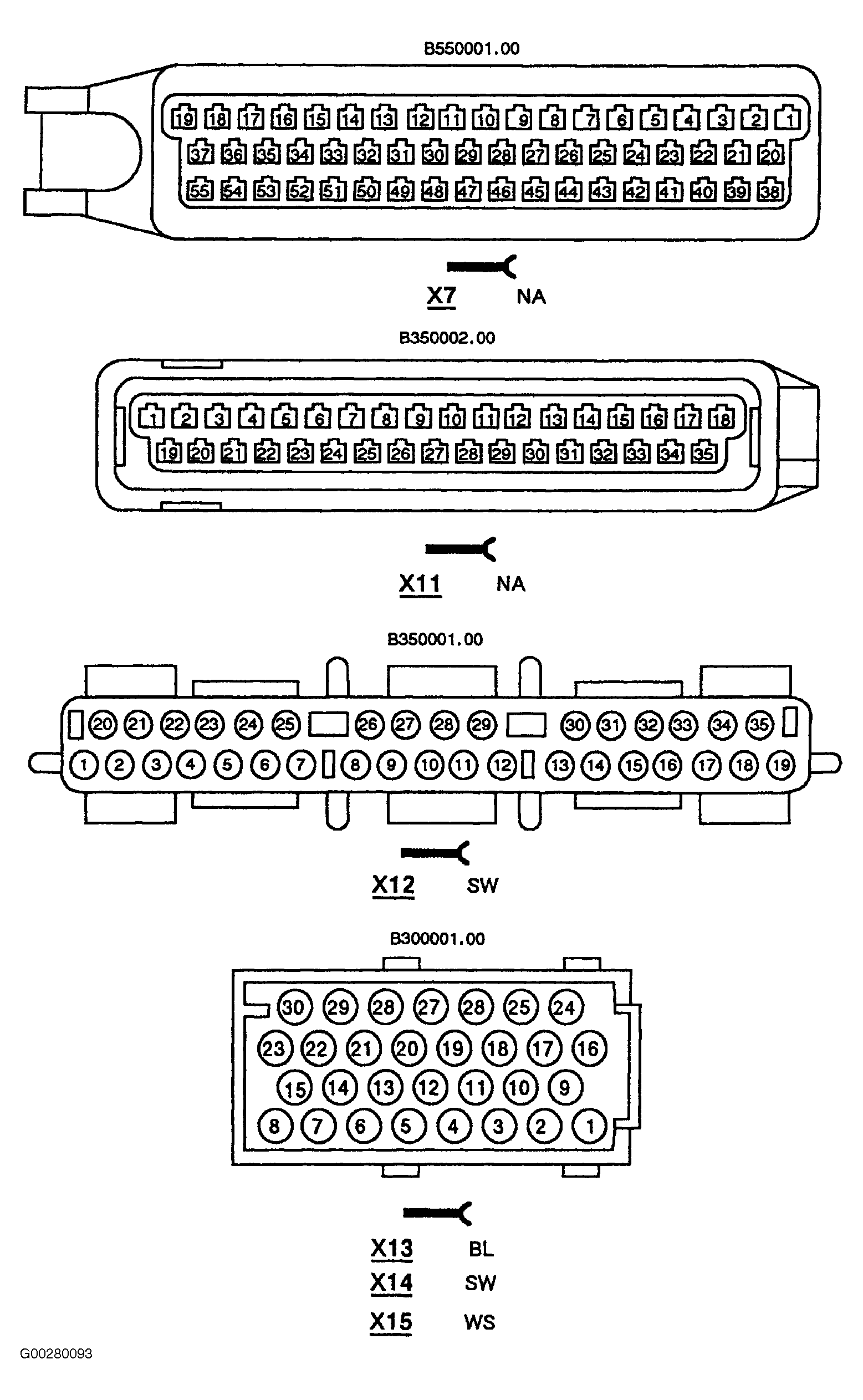

Fig 2: BMW Connector Identification - X7 To X15 (1 Of 24)

G00280093

Courtesy of BMW OF NORTH AMERICA, INC.

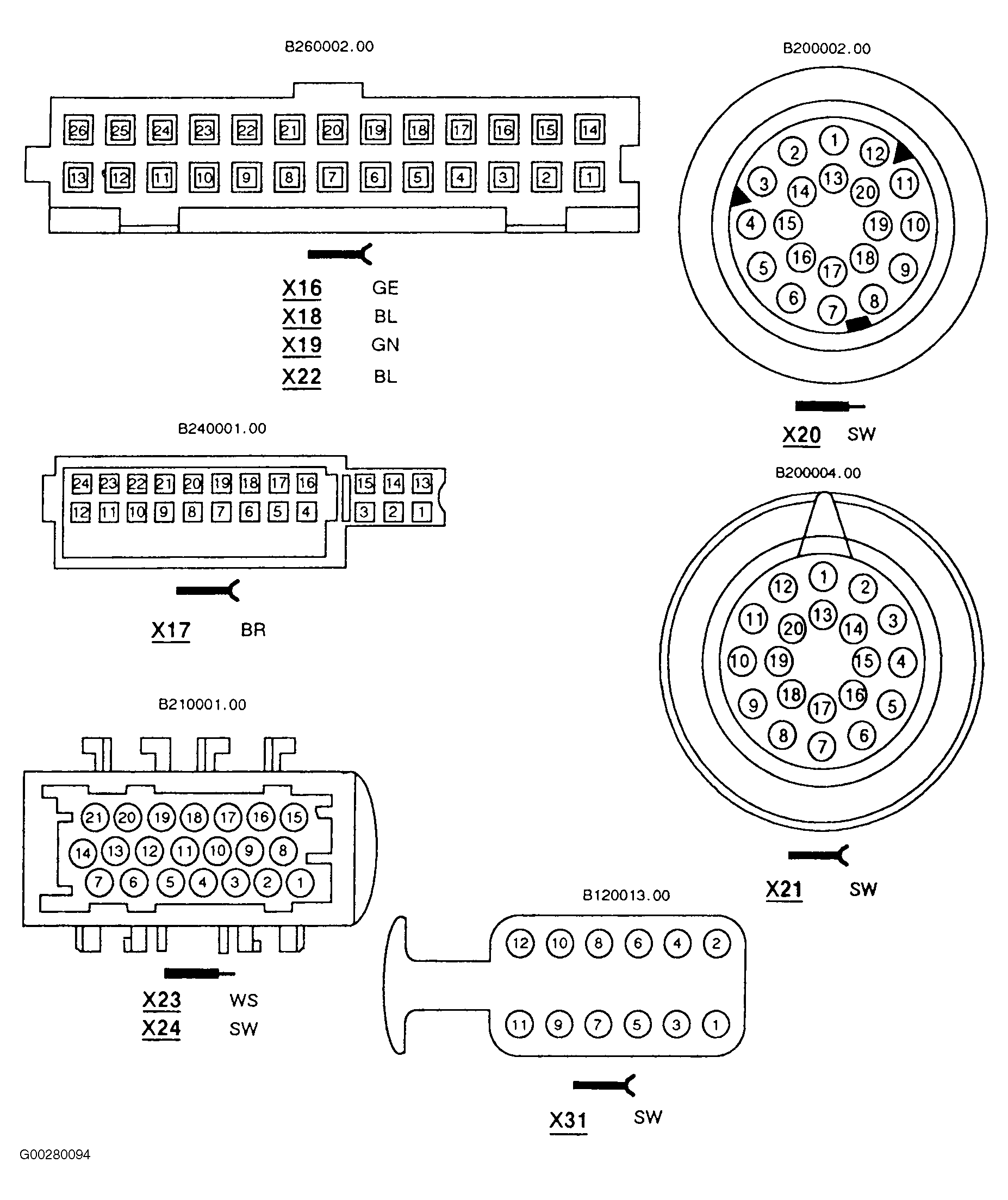

Fig 3: BMW Connector Identification - X16 To X31 (2 Of 24)

G00280094

Courtesy of BMW OF NORTH AMERICA, INC.

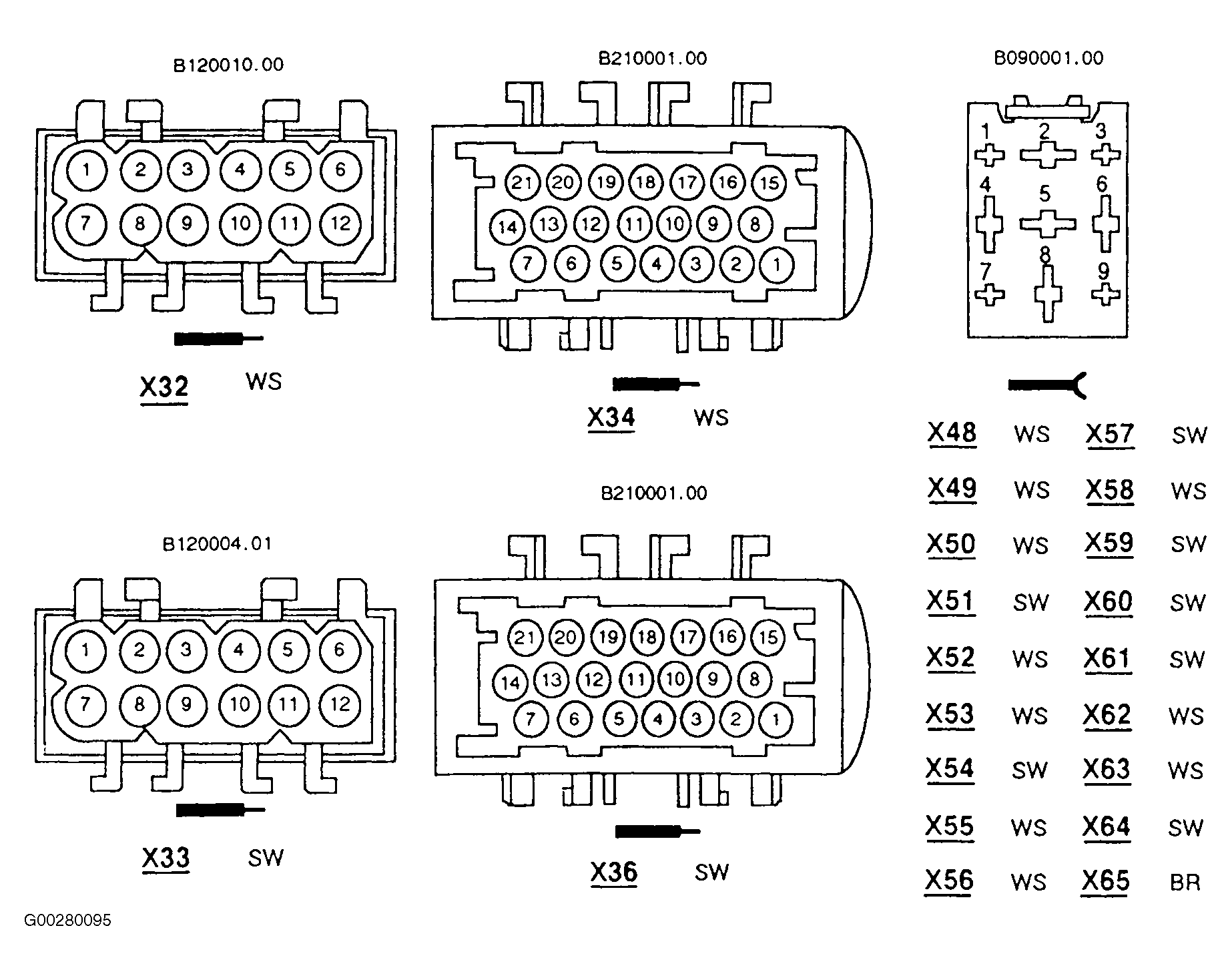

Fig 4: BMW Connector Identification - X32 To X65 (3 Of 24)

G00280095

Courtesy of BMW OF NORTH AMERICA, INC.

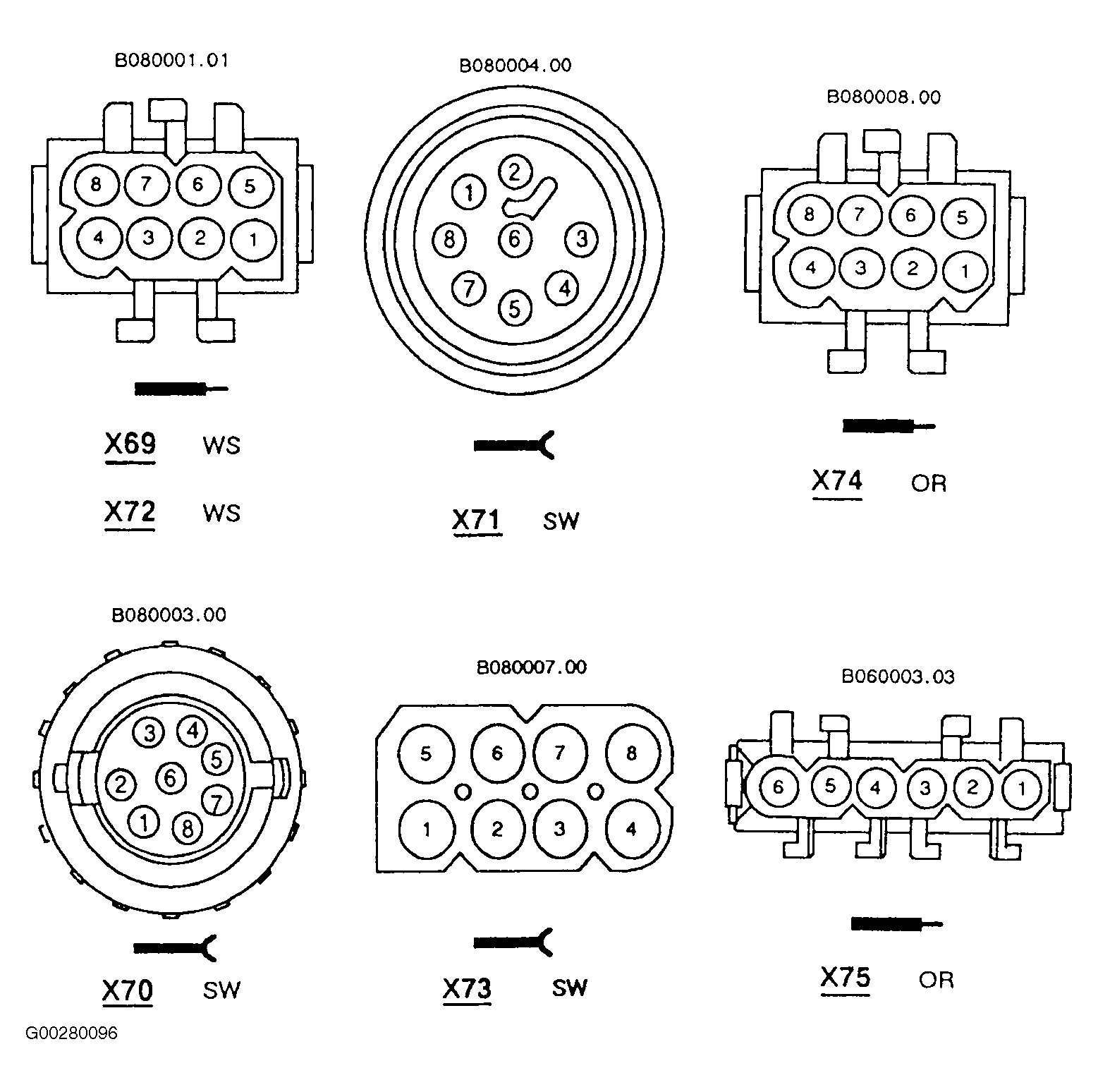

Fig 5: BMW Connector Identification - X69 To X75 (4 Of 24)

G00280096

Courtesy of BMW OF NORTH AMERICA, INC.

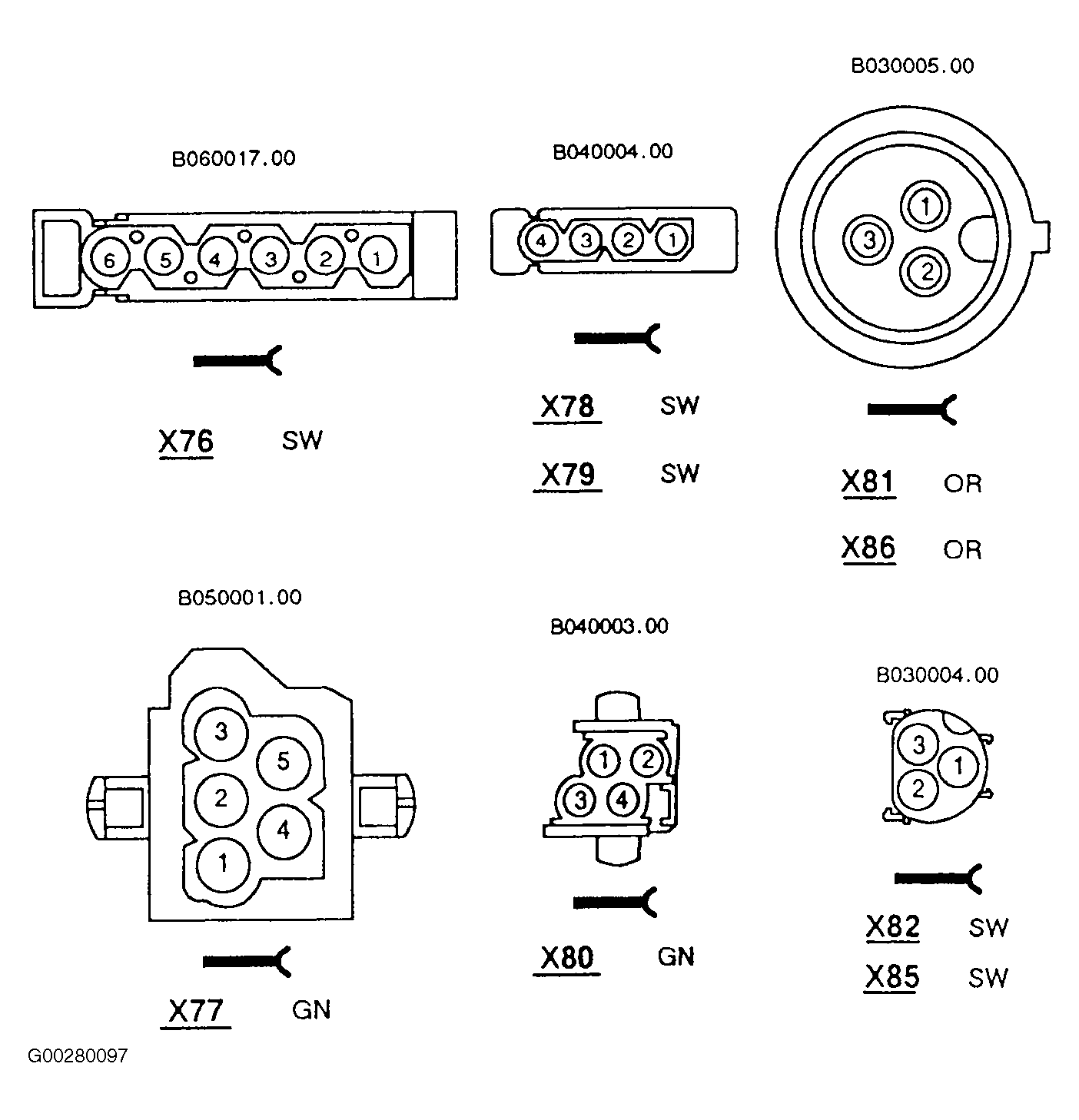

Fig 6: BMW Connector Identification - X76 To X85 (5 Of 24)

G00280097

Courtesy of BMW OF NORTH AMERICA, INC.

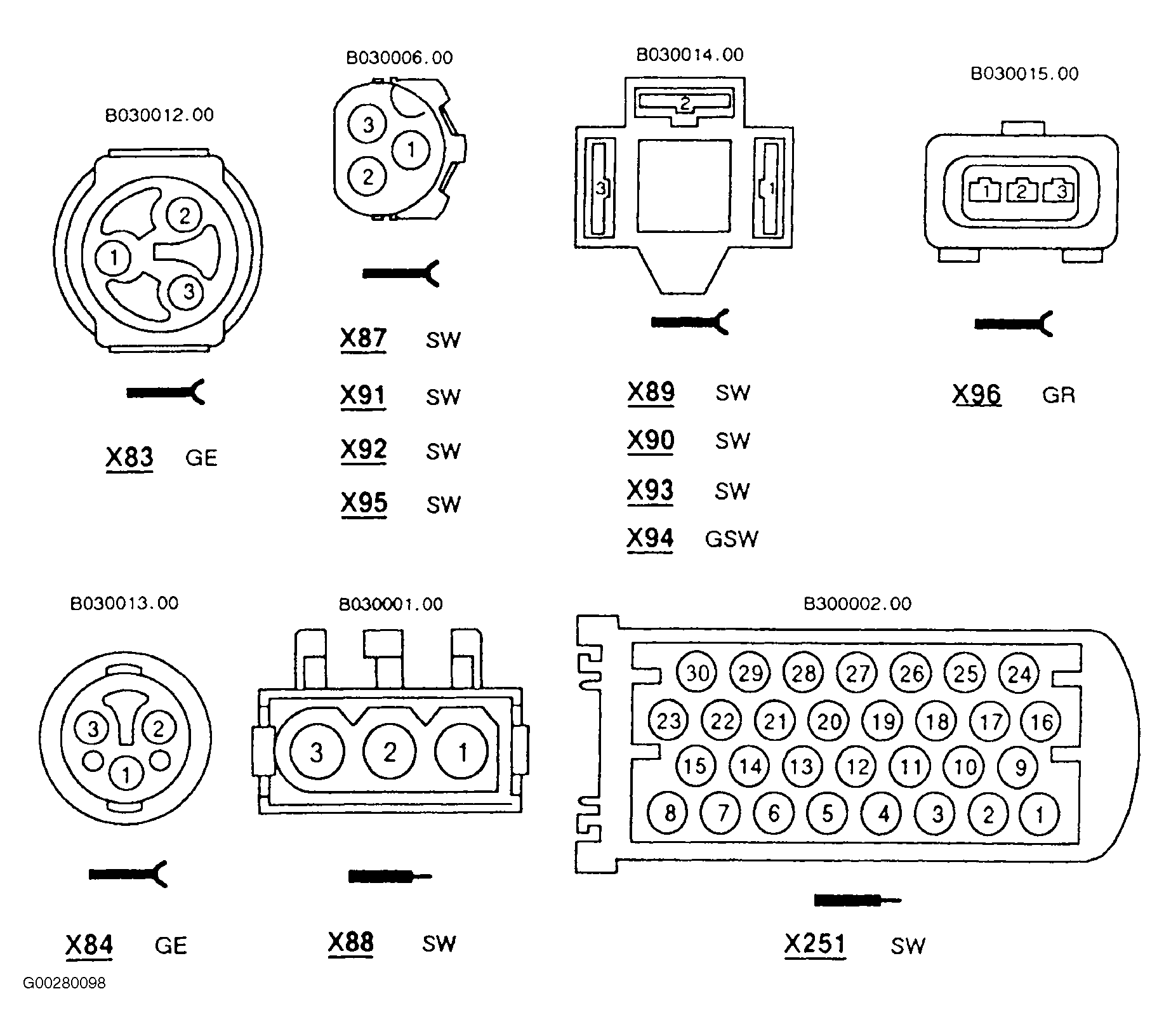

Fig 7: BMW Connector Identification - X83 To X251 (6 Of 24)

G00280098

Courtesy of BMW OF NORTH AMERICA, INC.

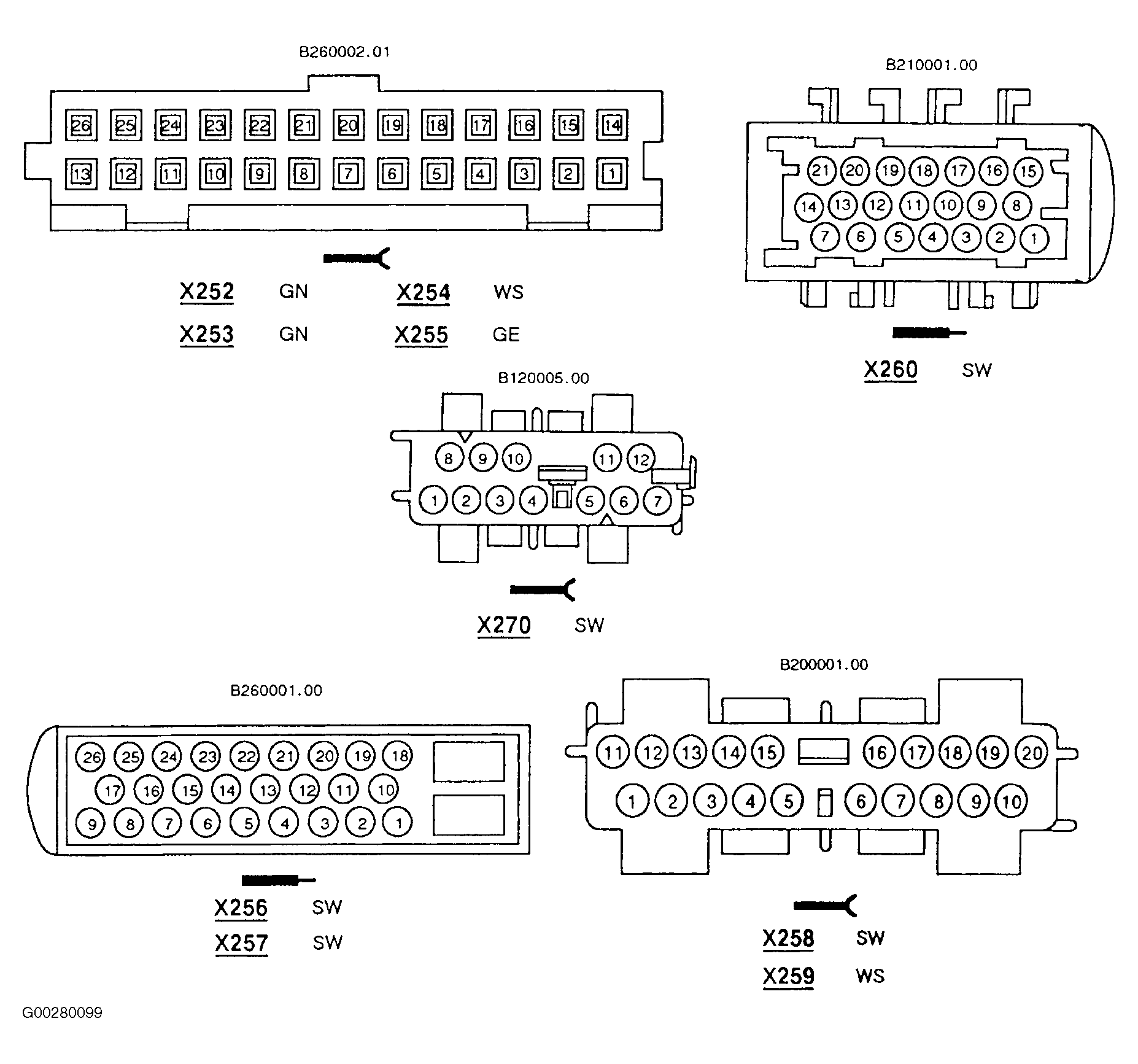

Fig 8: BMW Connector Identification - X252 To X270 (7 Of 24)

G00280099

Courtesy of BMW OF NORTH AMERICA, INC.

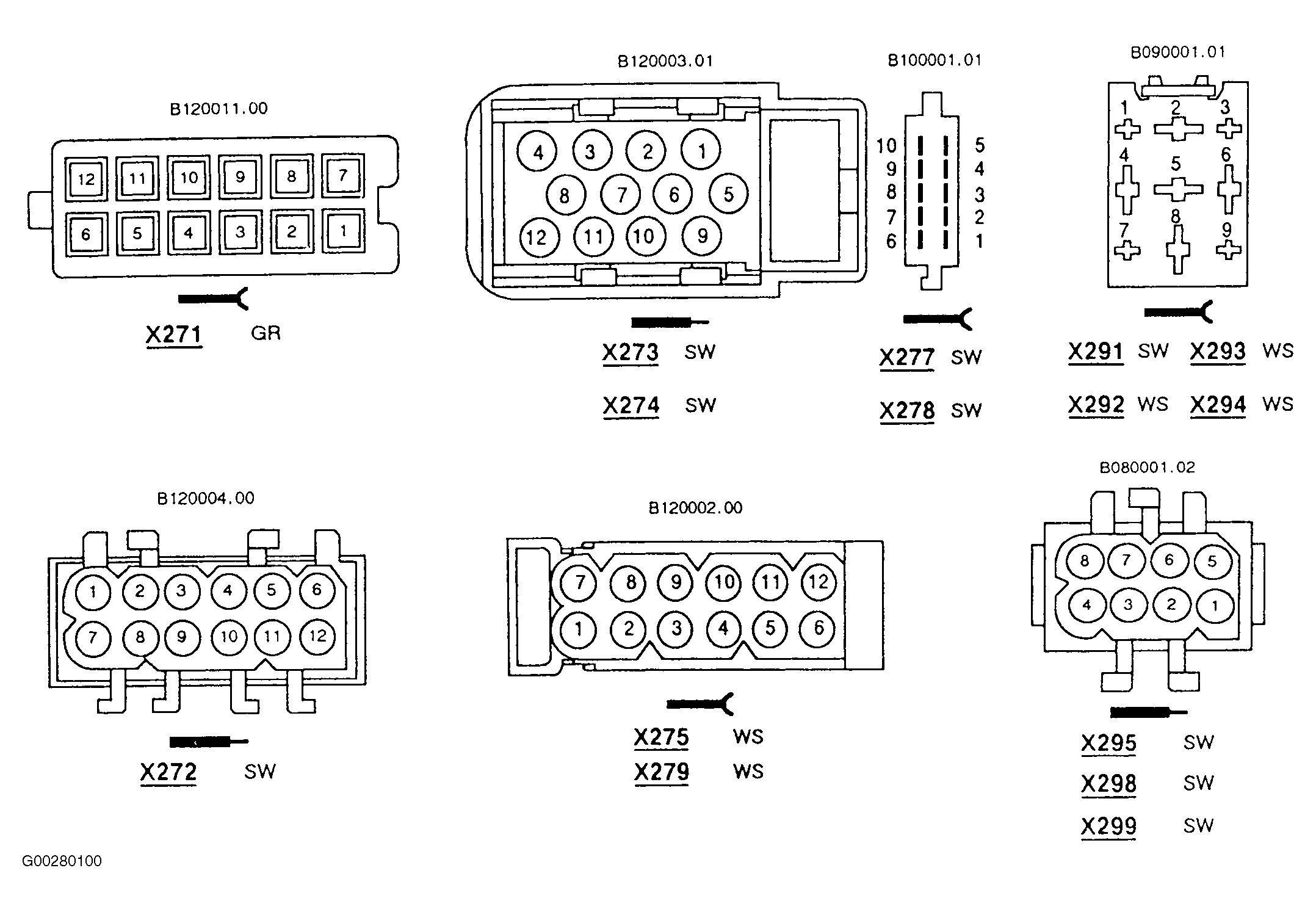

Fig 9: BMW Connector Identification - X271 To X299 (8 Of 24)

G00280100

Courtesy of BMW OF NORTH AMERICA, INC.

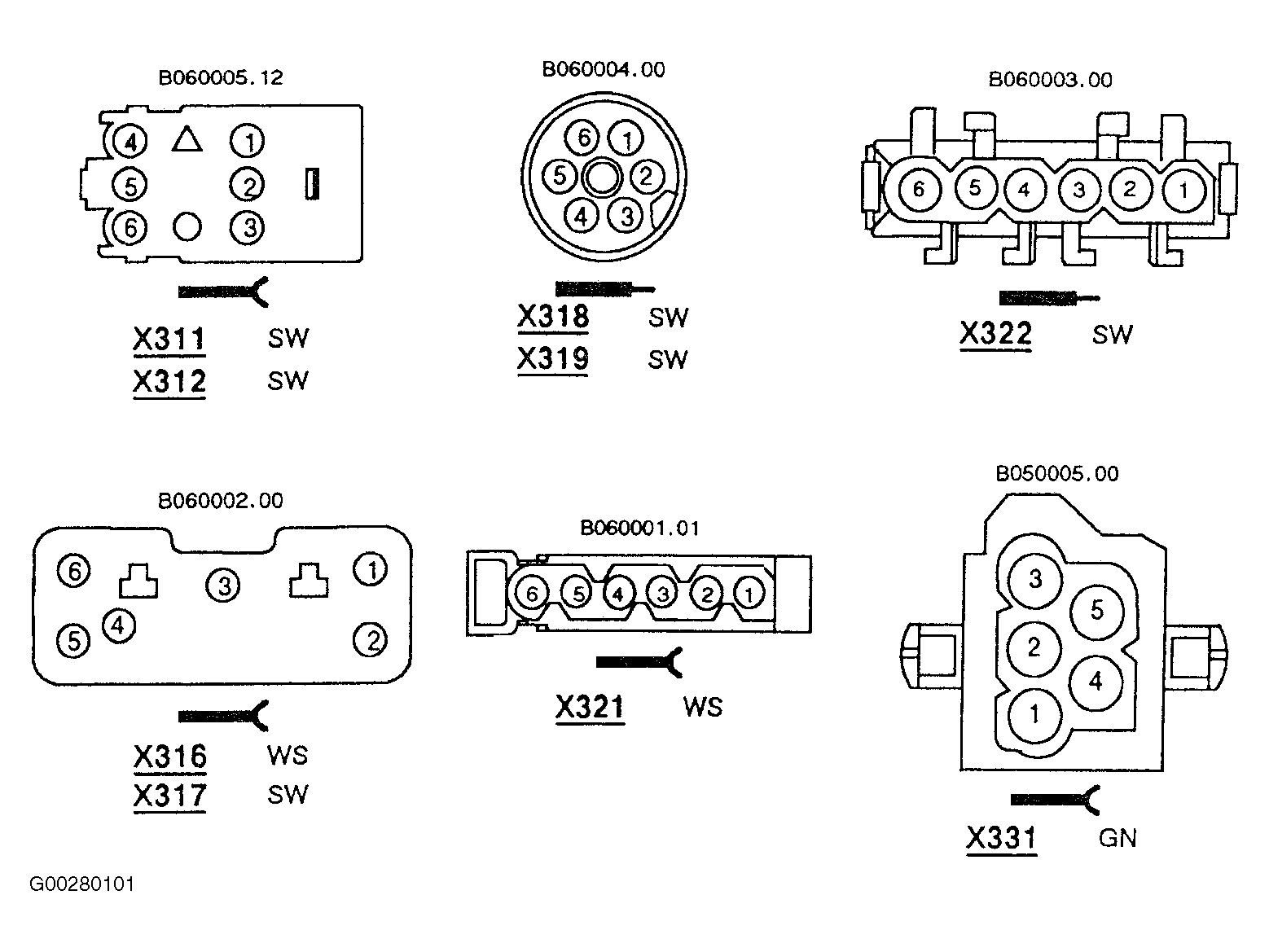

Fig 10: BMW Connector Identification - X311 To X331 (9 Of 24)

G00280101

Courtesy of BMW OF NORTH AMERICA, INC.

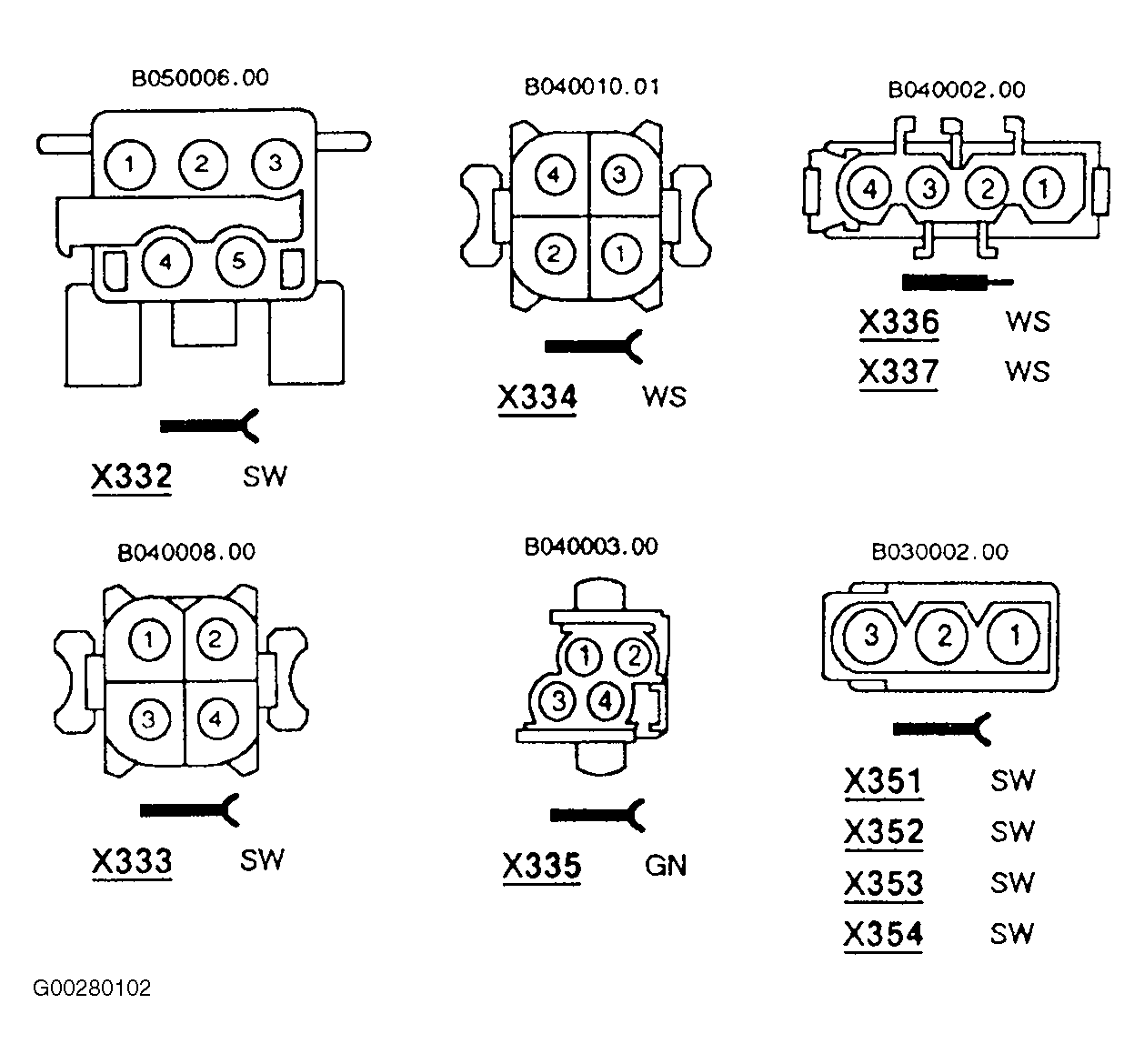

Fig 11: BMW Connector Identification - X332 To X354 (10 Of 24)

G00280102

Courtesy of BMW OF NORTH AMERICA, INC.

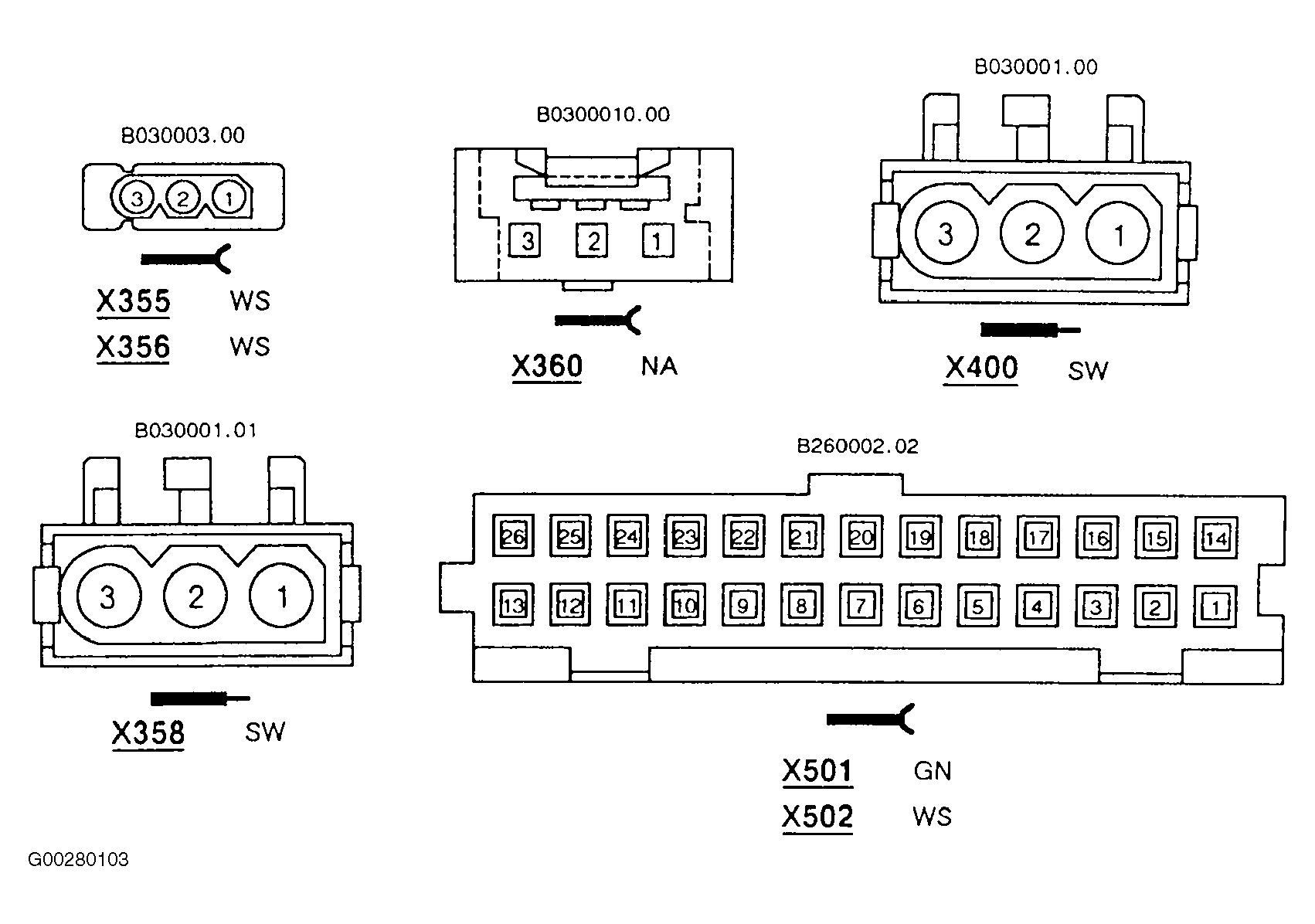

Fig 12: BMW Connector Identification - X355 To X502 (11 Of 24)

G00280103

Courtesy of BMW OF NORTH AMERICA, INC.

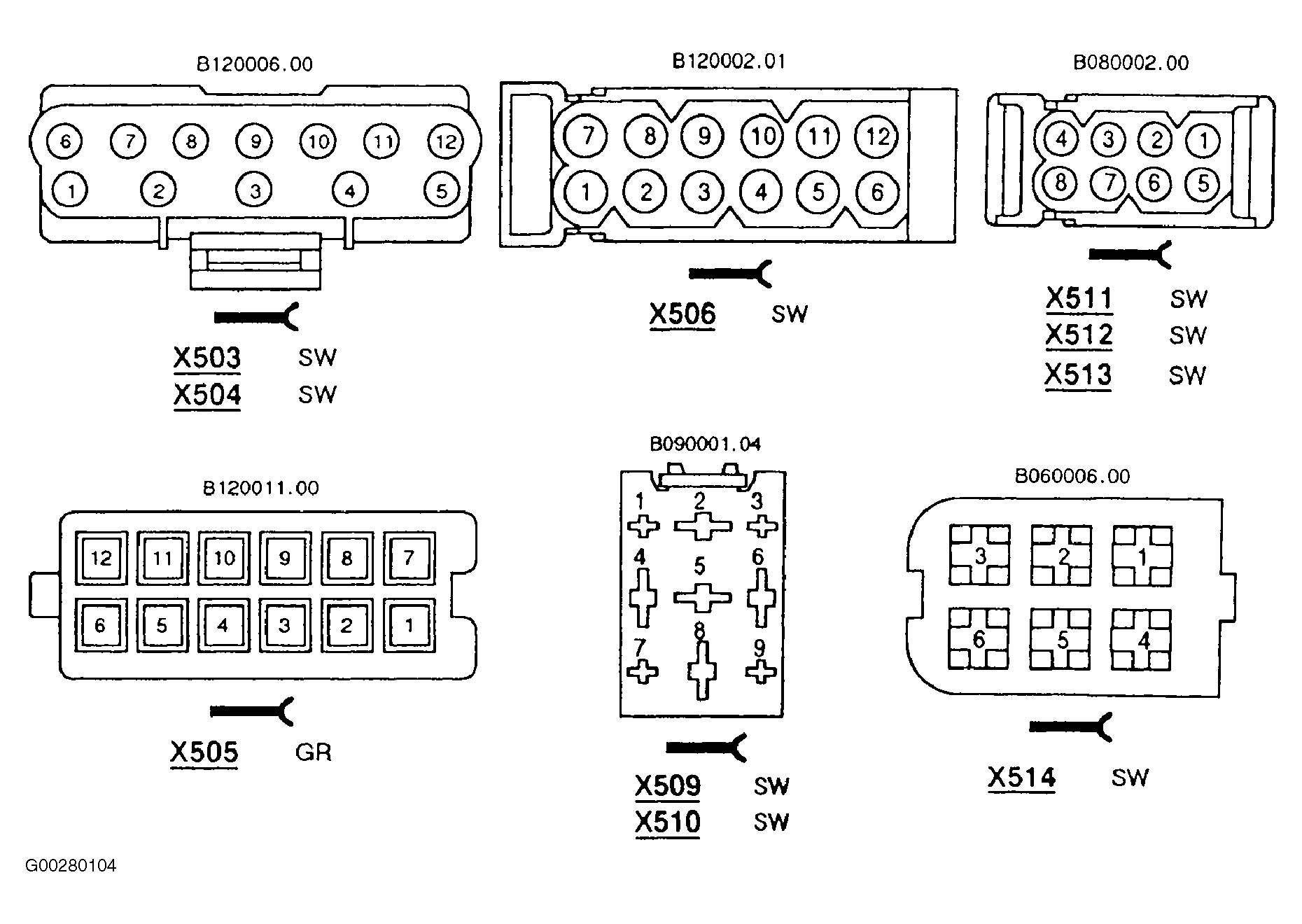

Fig 13: BMW Connector Identification - X503 To X514 (12 Of 24)

G00280104

Courtesy of BMW OF NORTH AMERICA, INC.

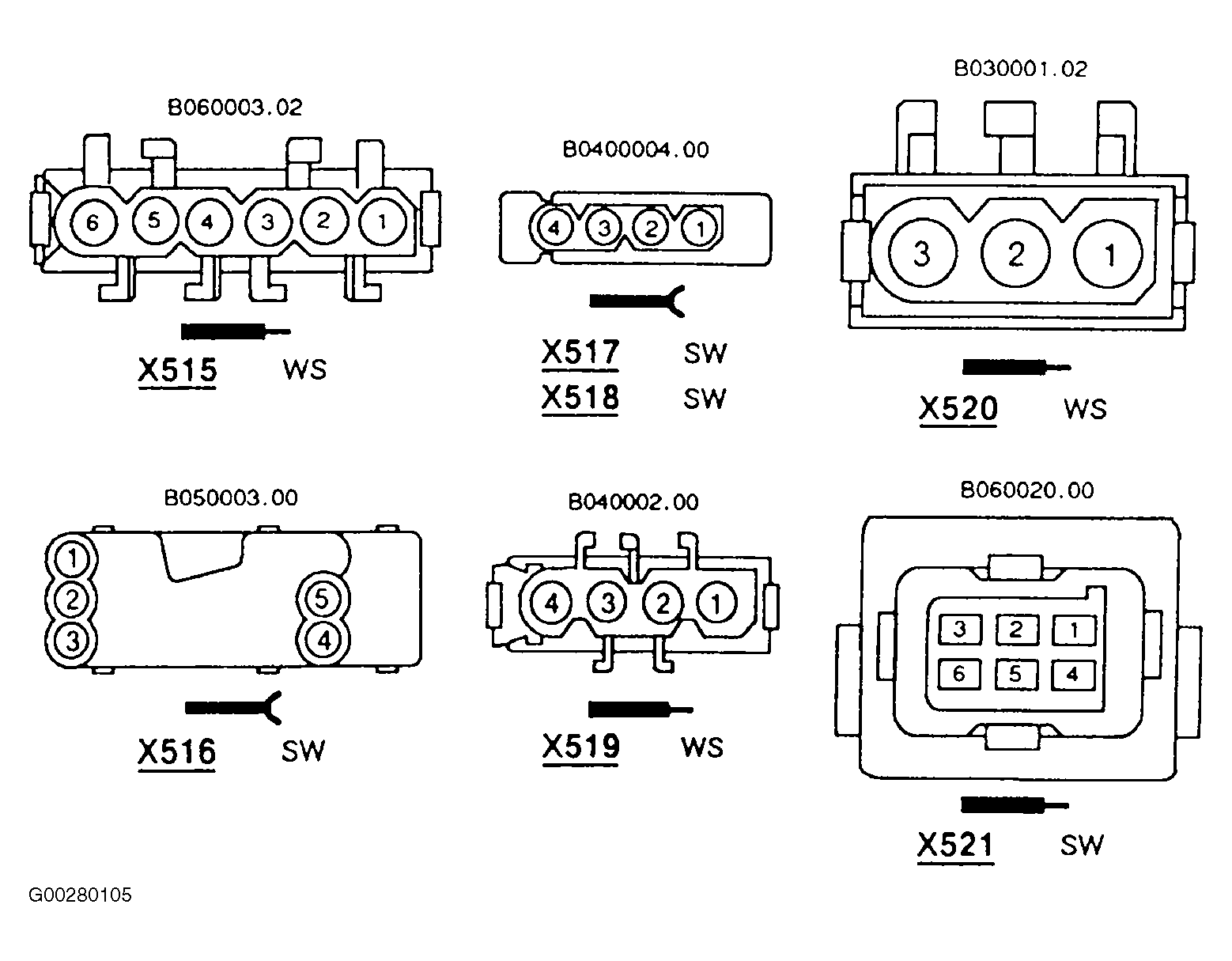

Fig 14: BMW Connector Identification - X515 To X521 (13 Of 24)

G00280105

Courtesy of BMW OF NORTH AMERICA, INC.

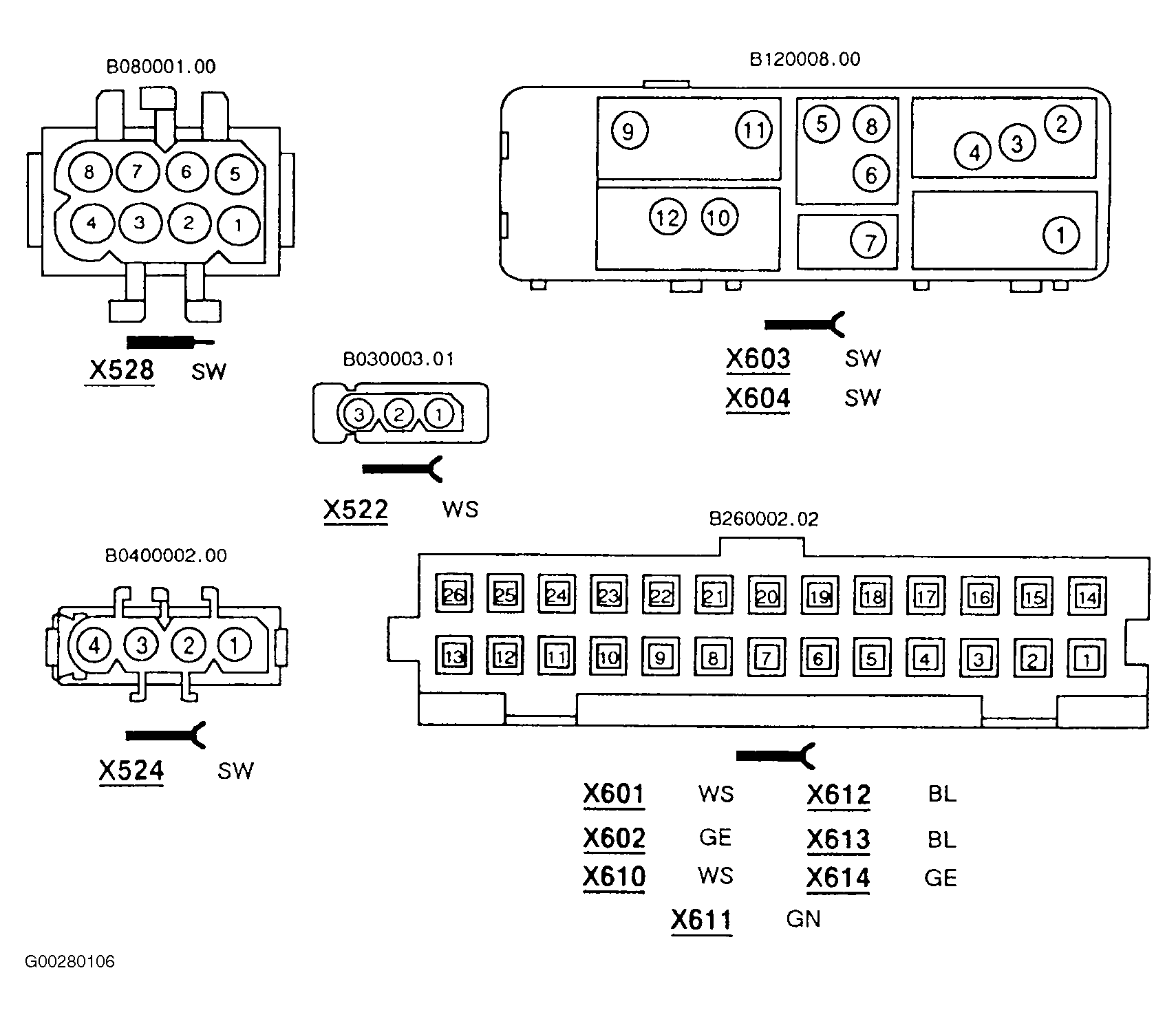

Fig 15: BMW Connector Identification - X522 To X614 (14 Of 24)

G00280106

Courtesy of BMW OF NORTH AMERICA, INC.

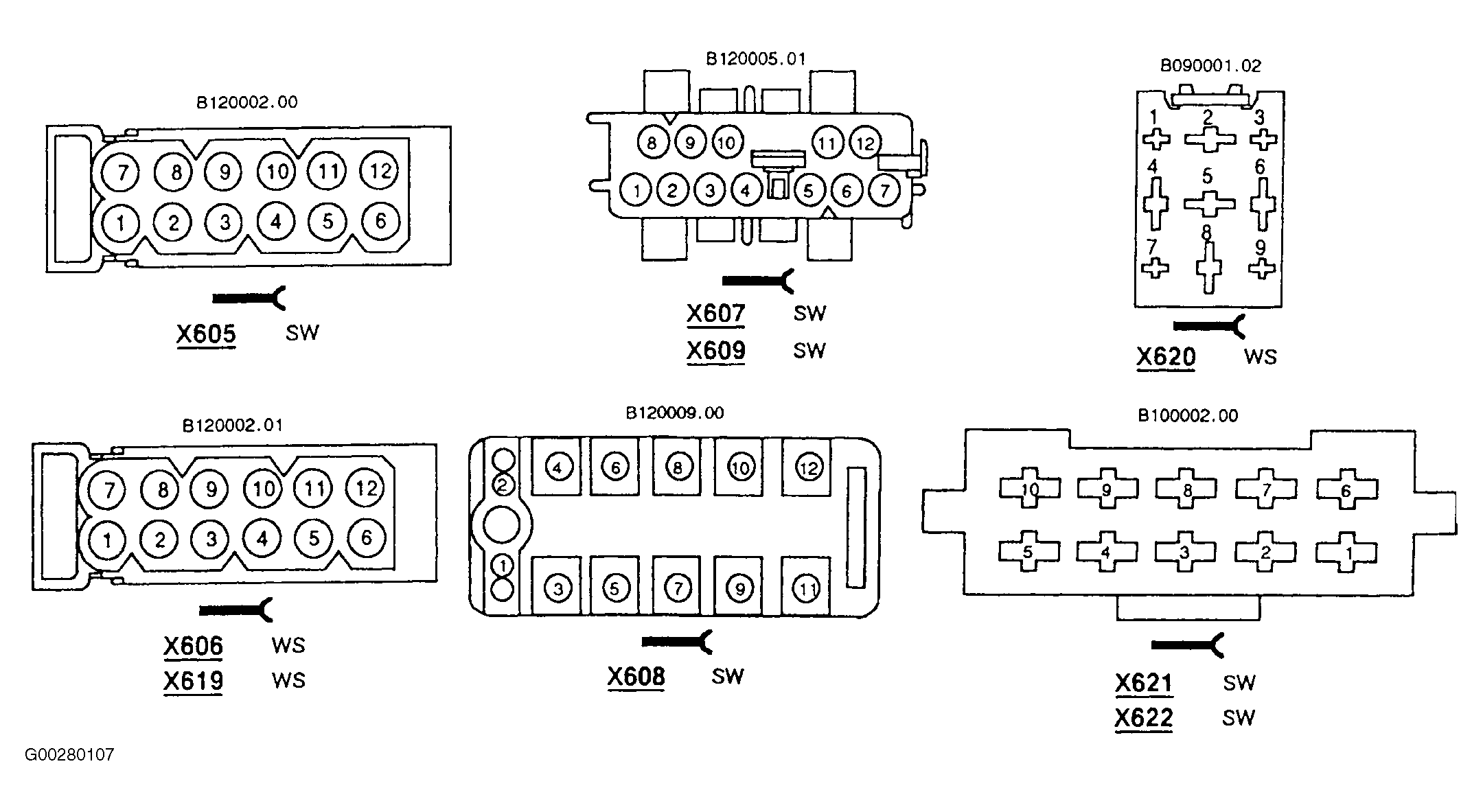

Fig 16: BMW Connector Identification - X605 To X622 (15 Of 24)

G00280107

Courtesy of BMW OF NORTH AMERICA, INC.

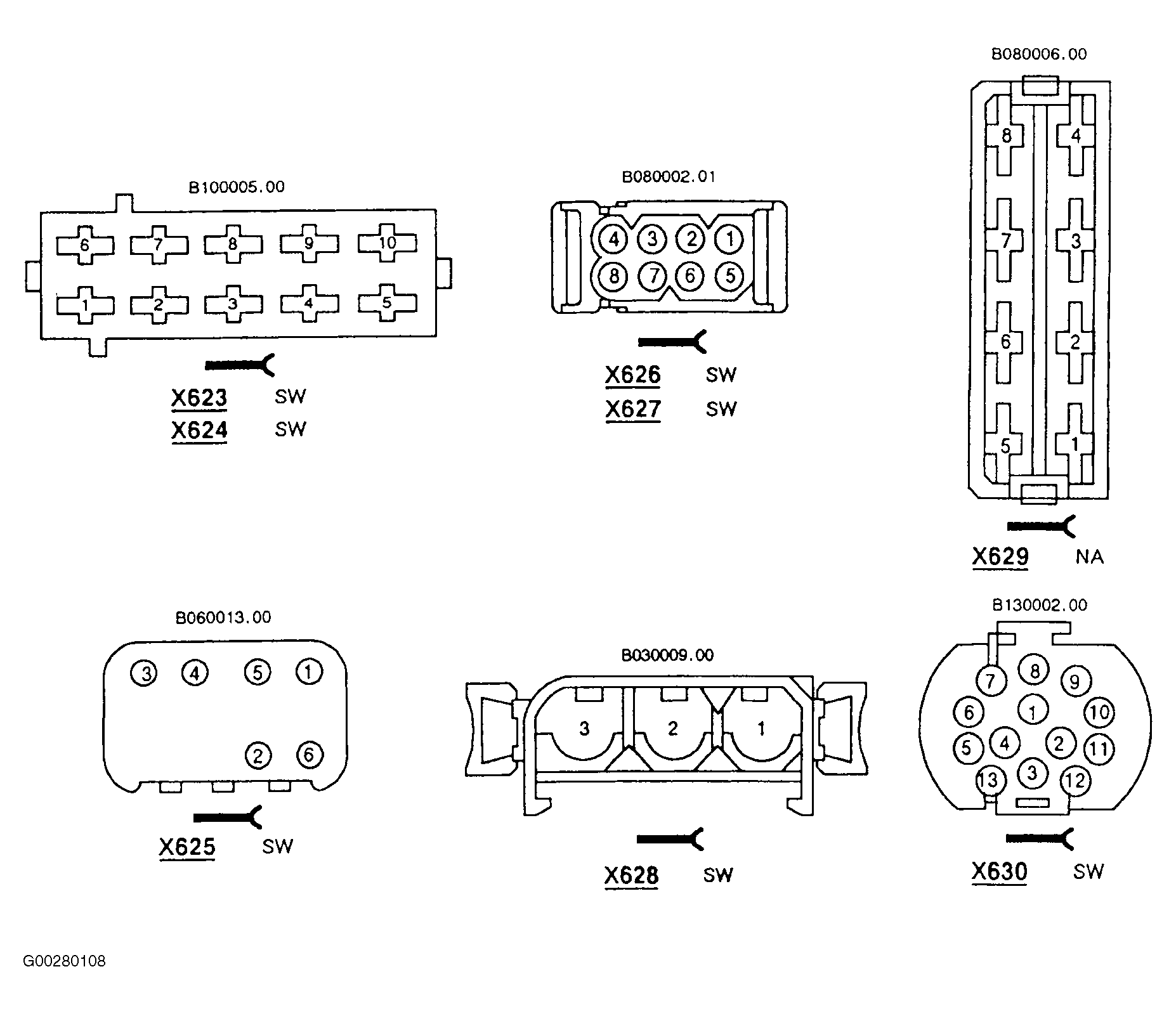

Fig 17: BMW Connector Identification - X623 To X630 (16 Of 24)

G00280108

Courtesy of BMW OF NORTH AMERICA, INC.

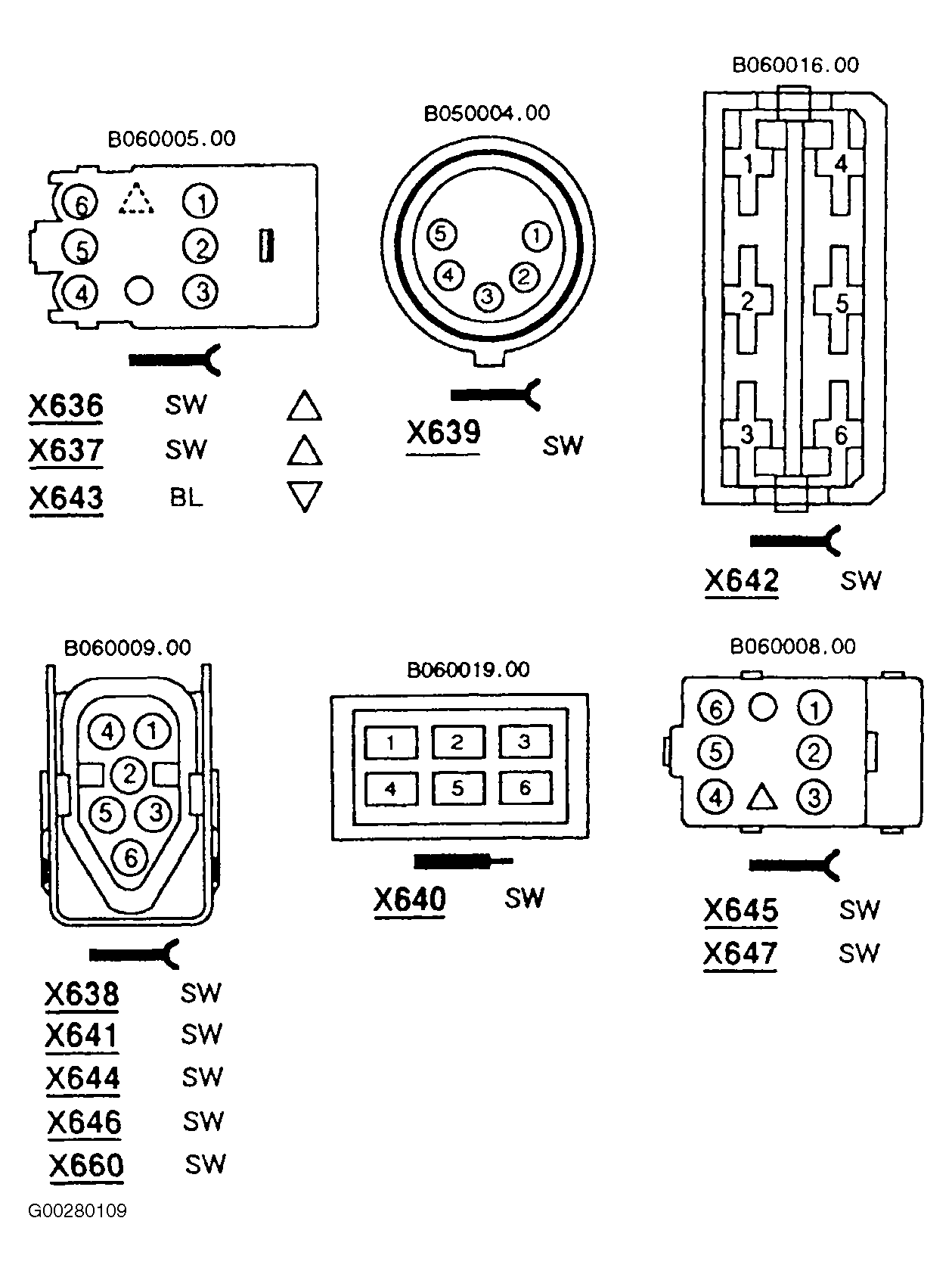

Fig 18: BMW Connector Identification - X636 To X647 (17 Of 24)

G00280109

Courtesy of BMW OF NORTH AMERICA, INC.

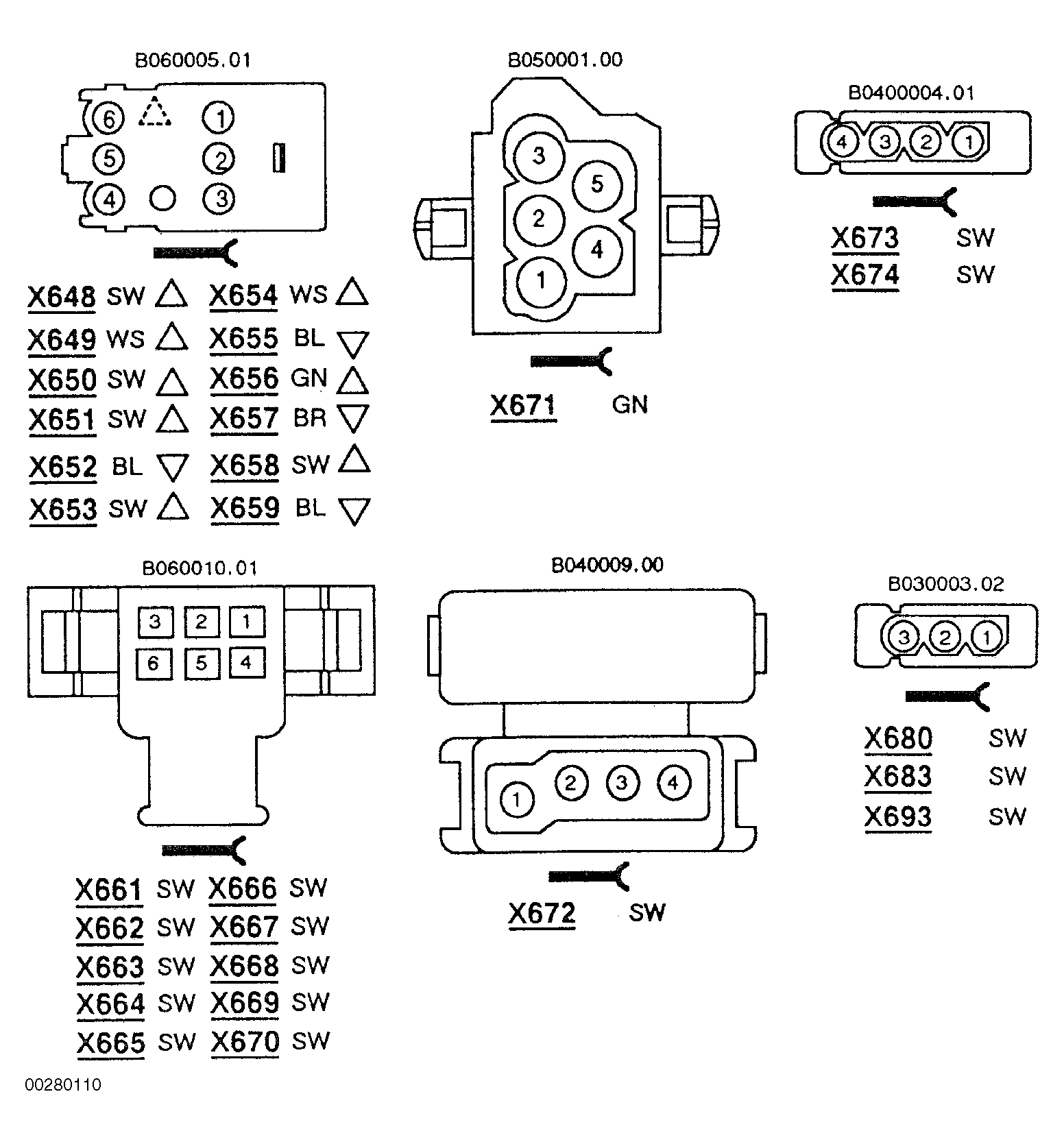

Fig 19: BMW Connector Identification - X648 To X693 (18 Of 24)

G00280110

Courtesy of BMW OF NORTH AMERICA, INC.

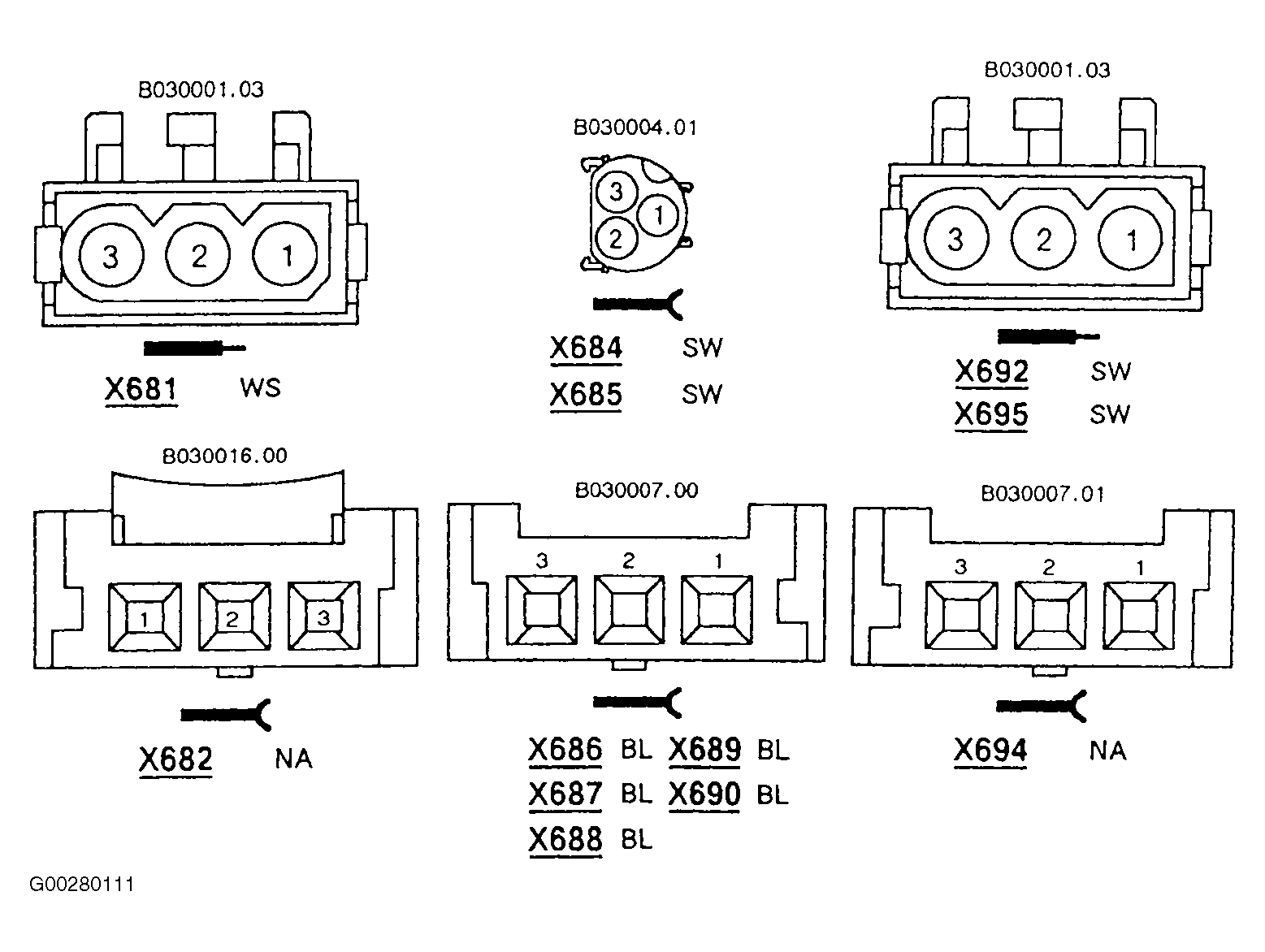

Fig 20: BMW Connector Identification - X681 To X694 (19 Of 24)

G00280111

Courtesy of BMW OF NORTH AMERICA, INC.

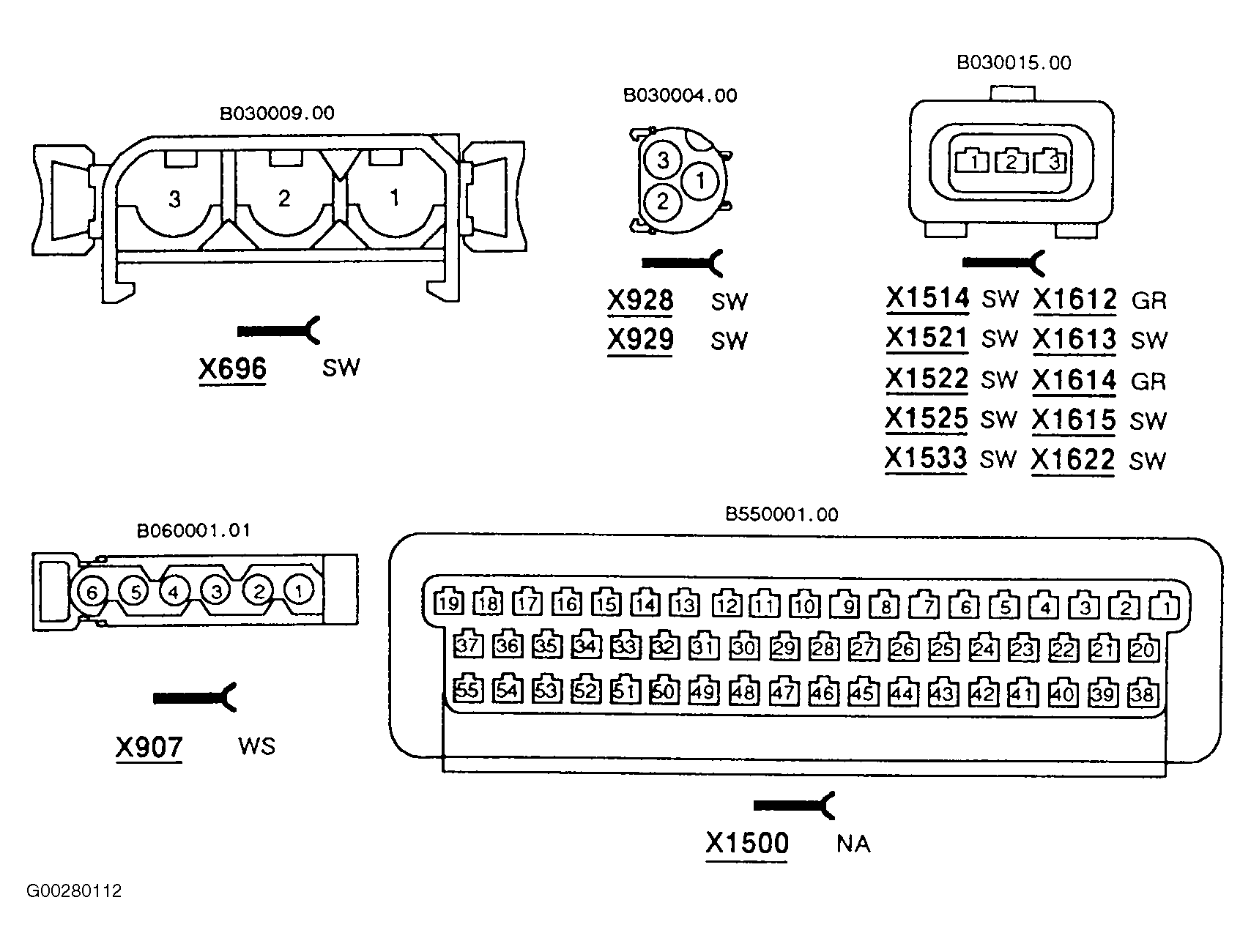

Fig 21: BMW Connector Identification - X696 To X1622 (20 Of 24)

G00280112

Courtesy of BMW OF NORTH AMERICA, INC.

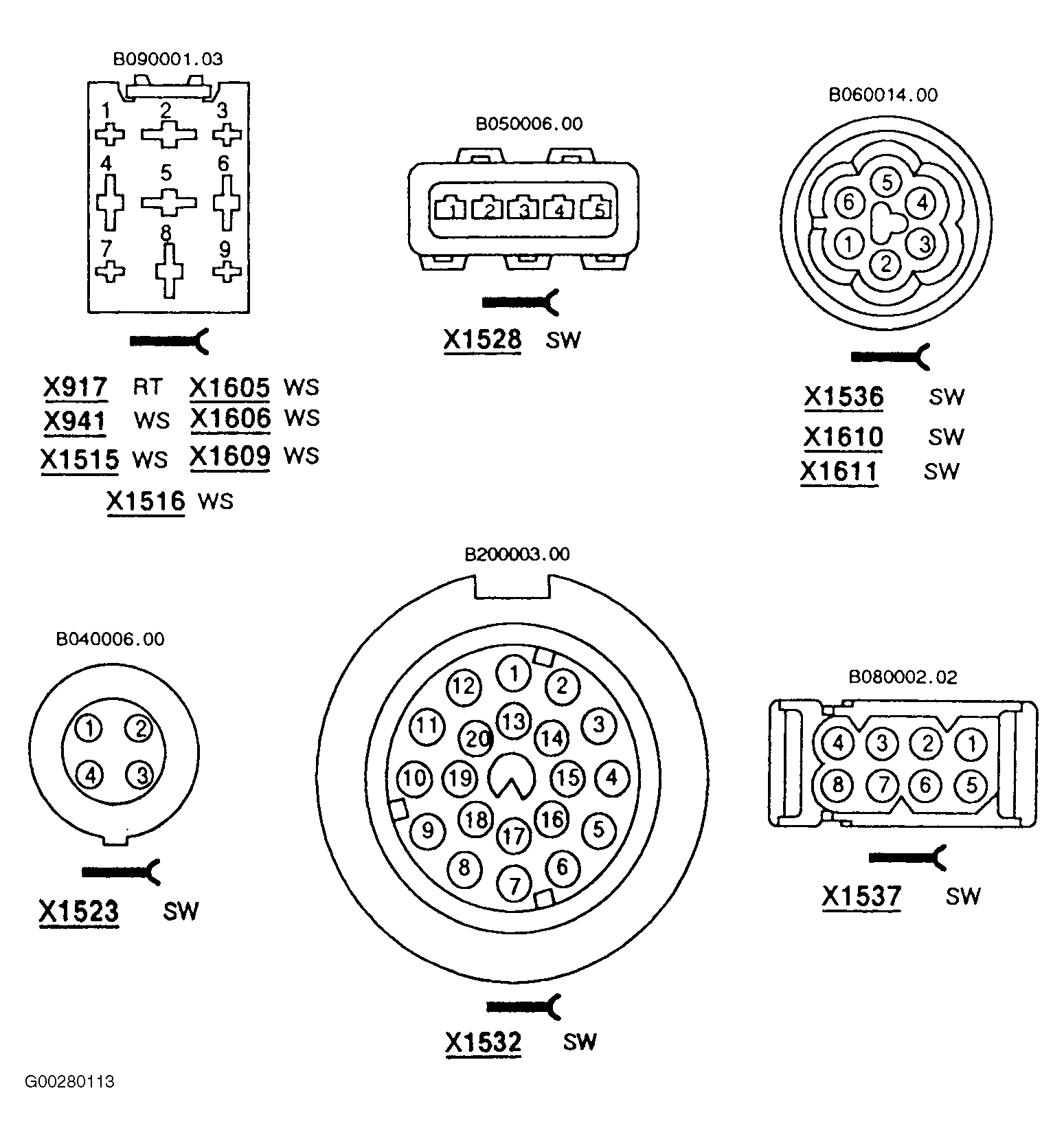

Fig 22: BMW Connector Identification - X917 To X1611 (21 Of 24)

G00280113

Courtesy of BMW OF NORTH AMERICA, INC.

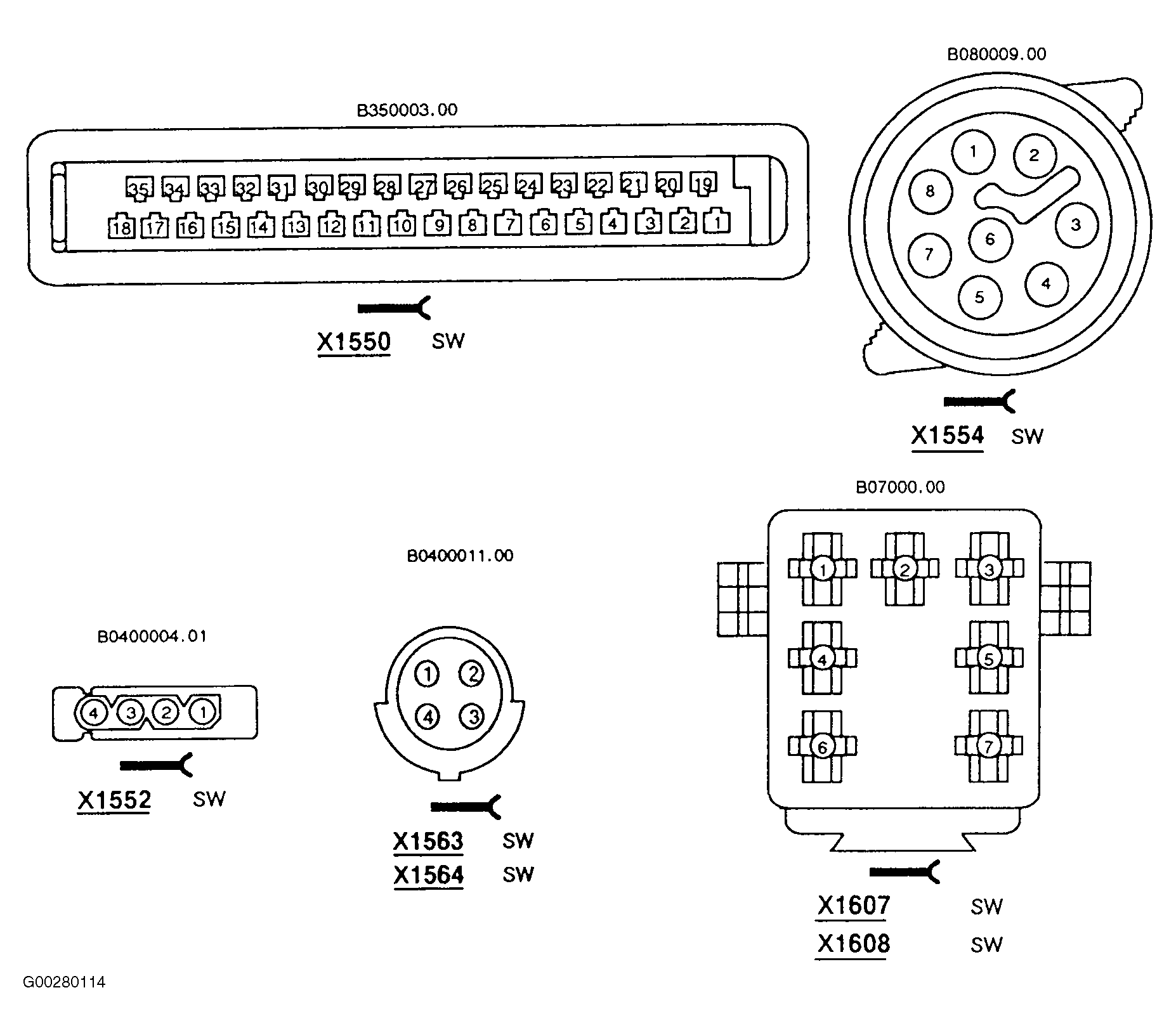

Fig 23: BMW Connector Identification - X1550 To X1608 (22 Of 24)

G00280114

Courtesy of BMW OF NORTH AMERICA, INC.

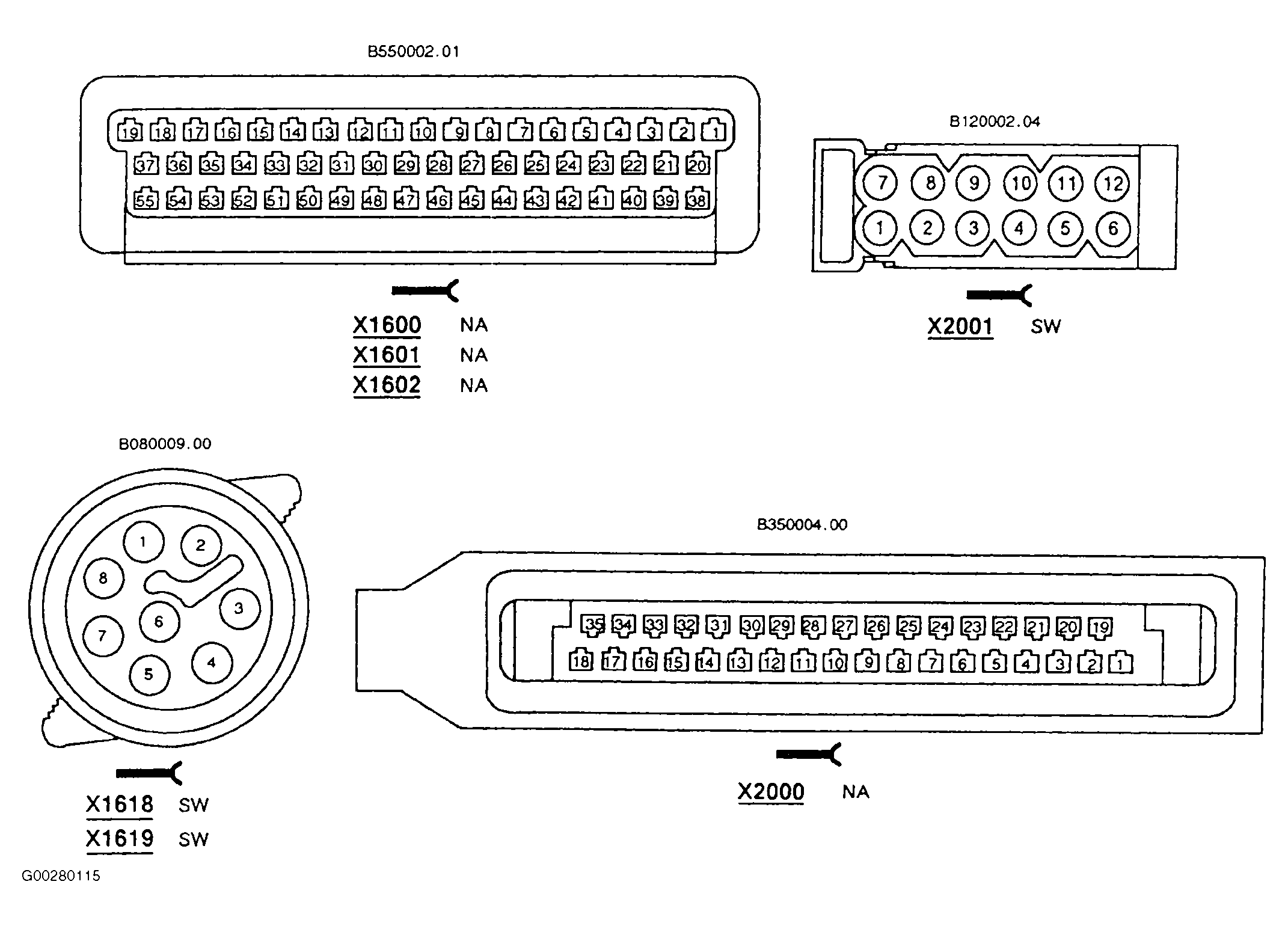

Fig 24: BMW Connector Identification - X1600 To X2001 (23 Of 24)

G00280115

Courtesy of BMW OF NORTH AMERICA, INC.

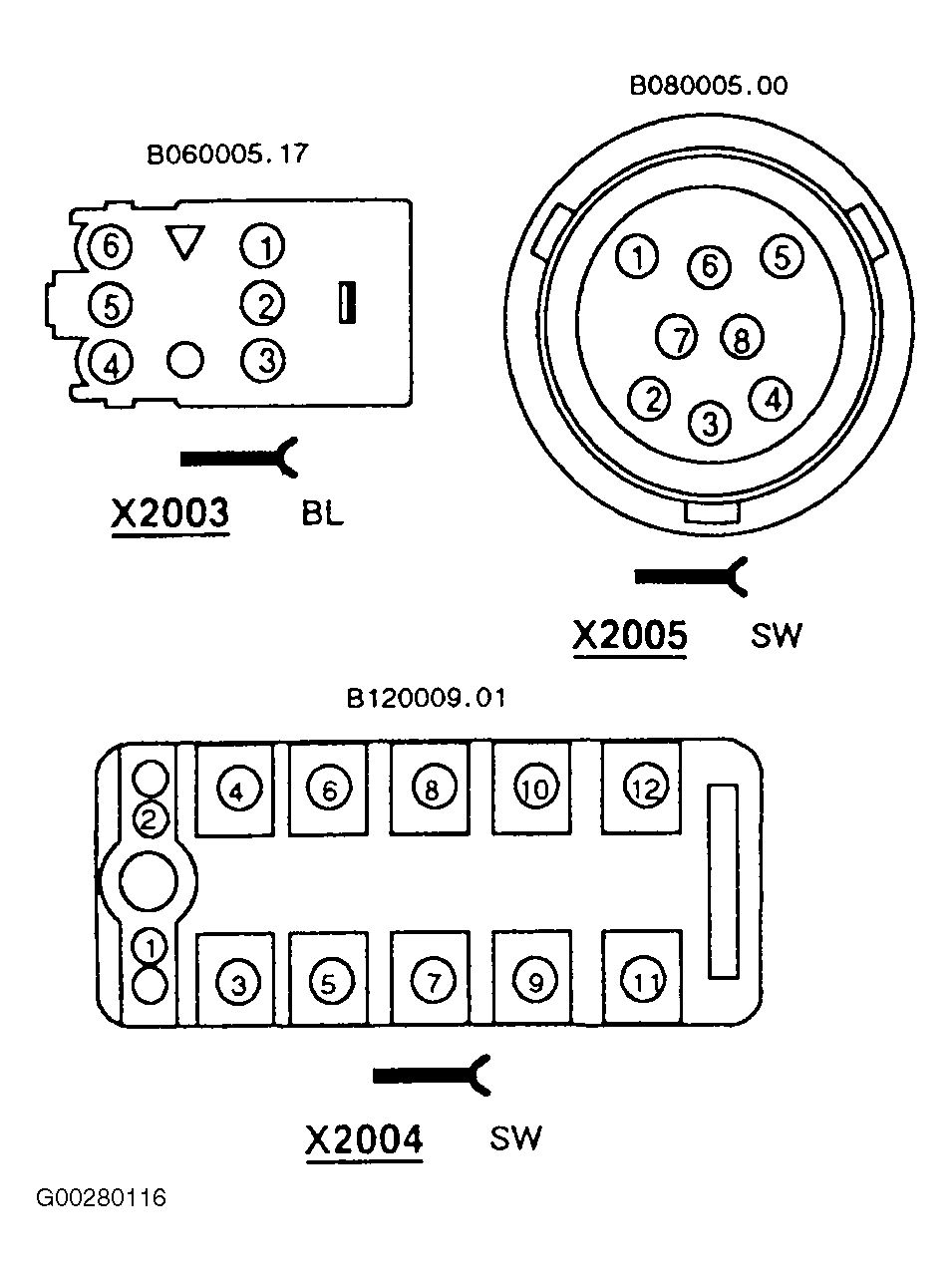

Fig 25: BMW Connector Identification - X2003 To X2005 (24 Of 24)

G00280116

Courtesy of BMW OF NORTH AMERICA, INC.
