Engine Control Module Relay

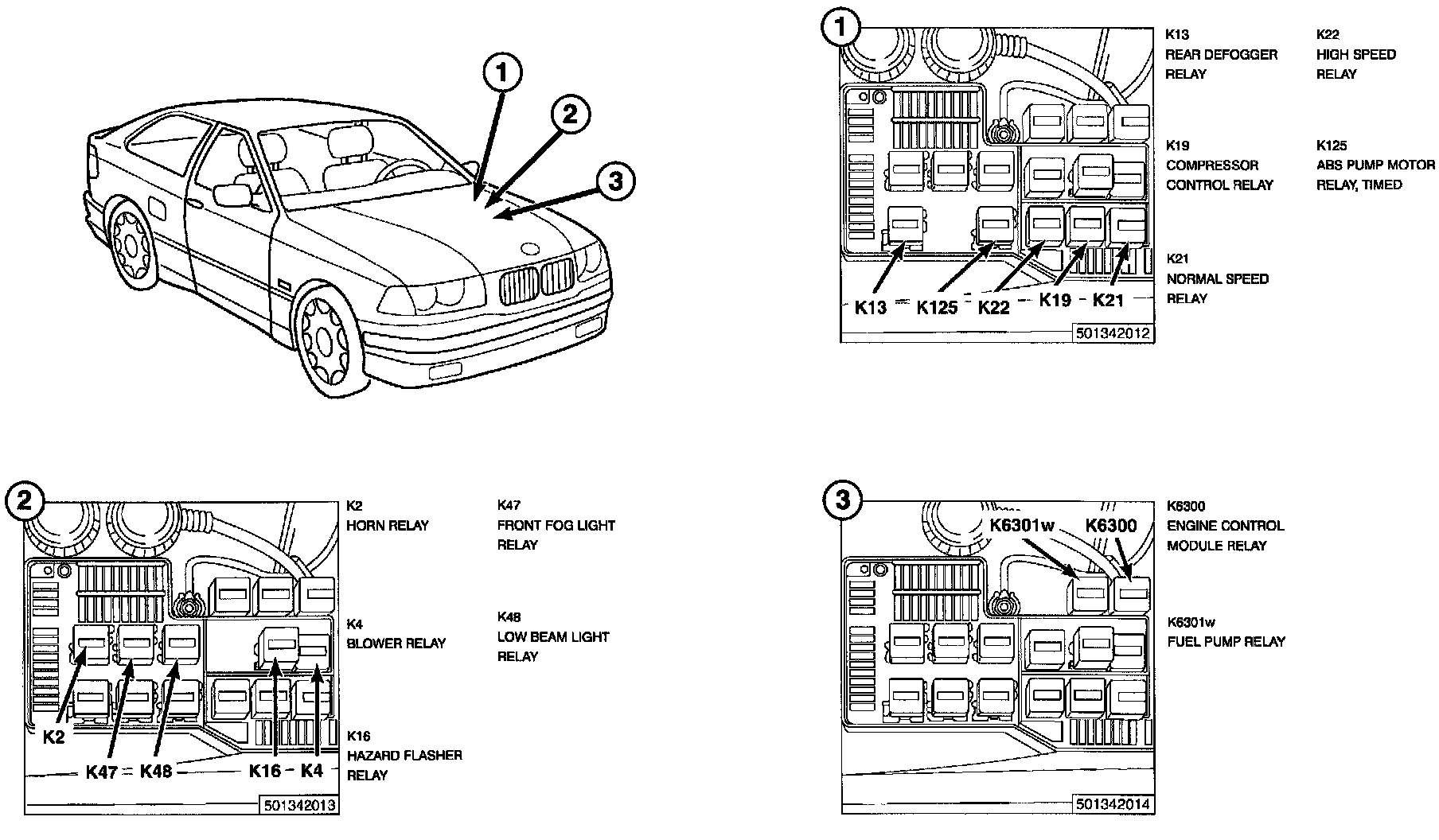

Component/Connector Location Views:




Component Location
Figure 3
Component ID K6300, Engine Control Module Relay
Location Rear LH Side Of Engine Compartment In Power Distribution Box
