Connector Views

(Note: Applicable to vehicles produced from September 1995 to August 1999.)



Connector View:

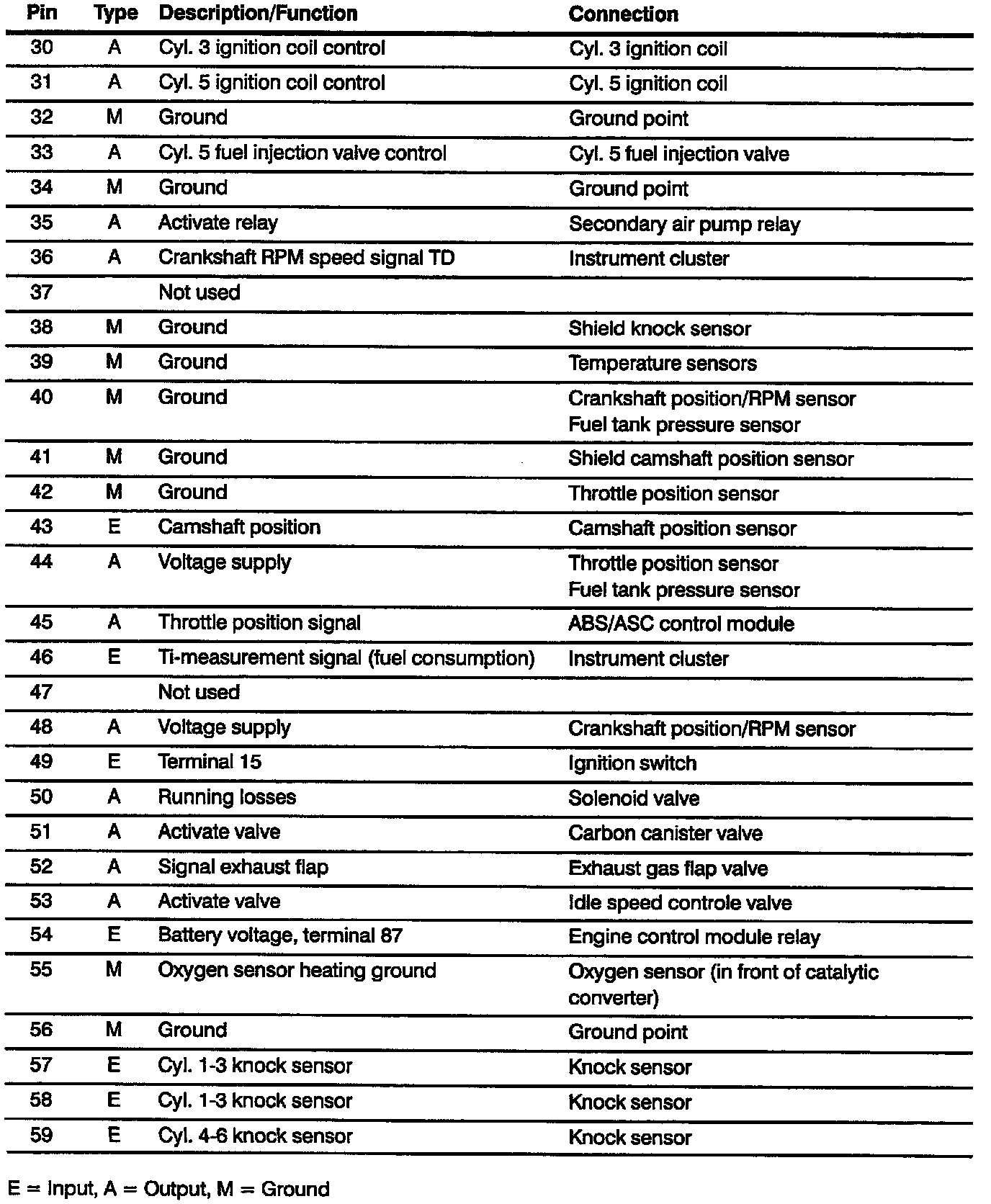

Engine Control System MS41.1 (6-Cylinder M52): Pin Assignments:

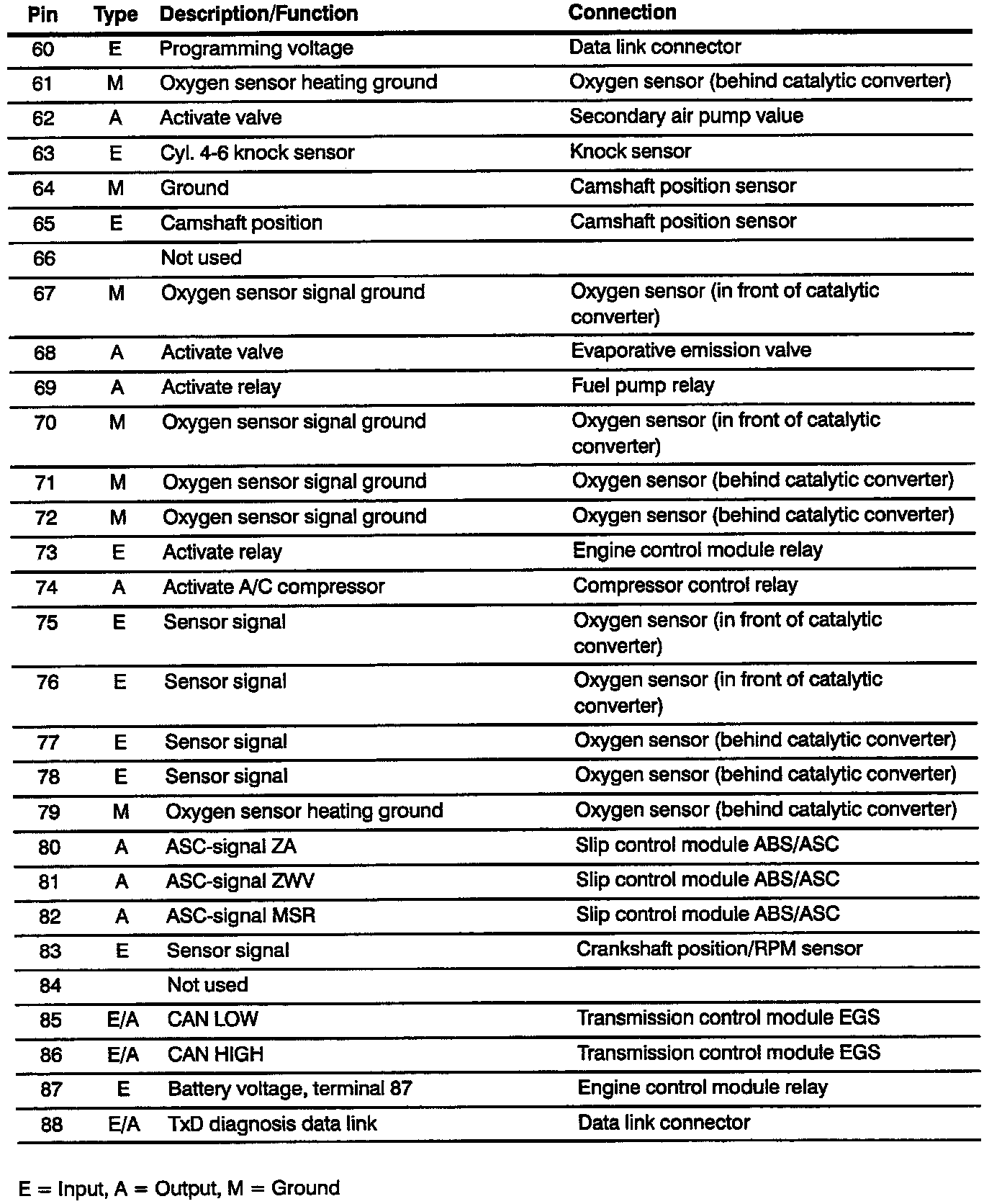

Engine Control System MS41.1 (6-Cylinder M52): Pin Assignments:

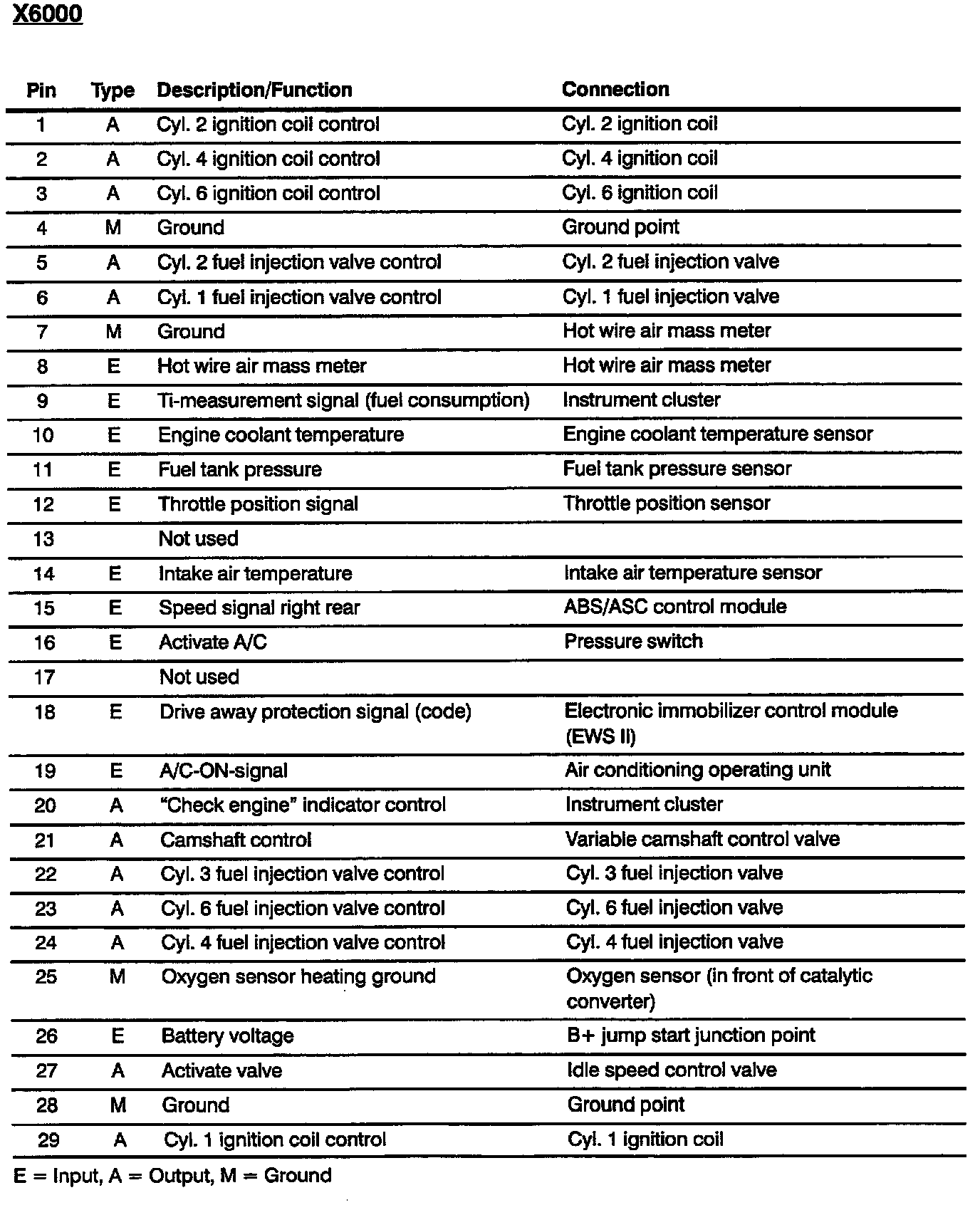

Engine Control System MS41.1 (6-Cylinder M52): Pin Assignments:
