A112 Navigation Control Module: PB

X01000, X01001, X01002, X01003:



X01000, Pin 1 - 3:



X01001, Pin 1 - 8:

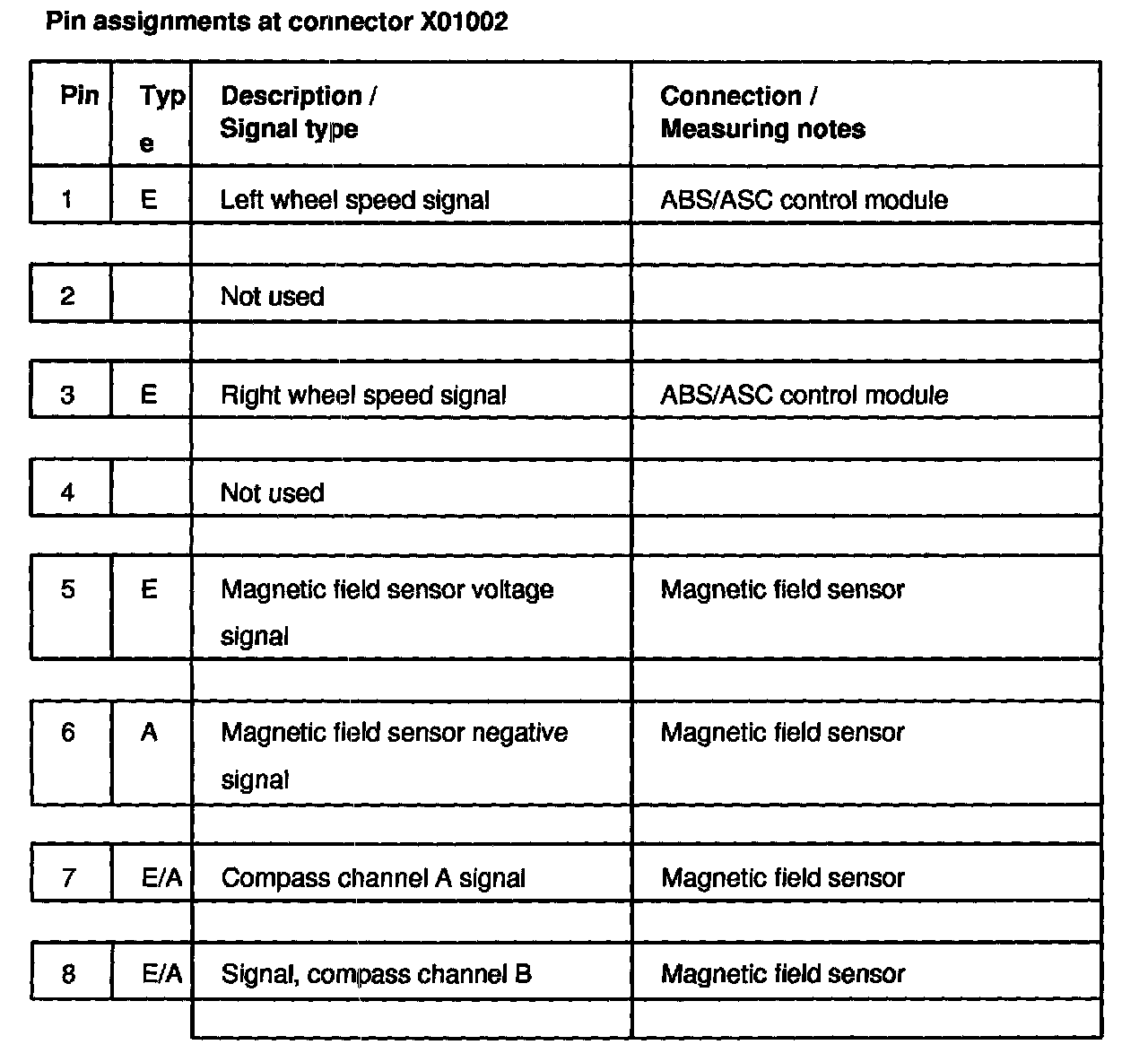

X01002, Pin 1 - 8:

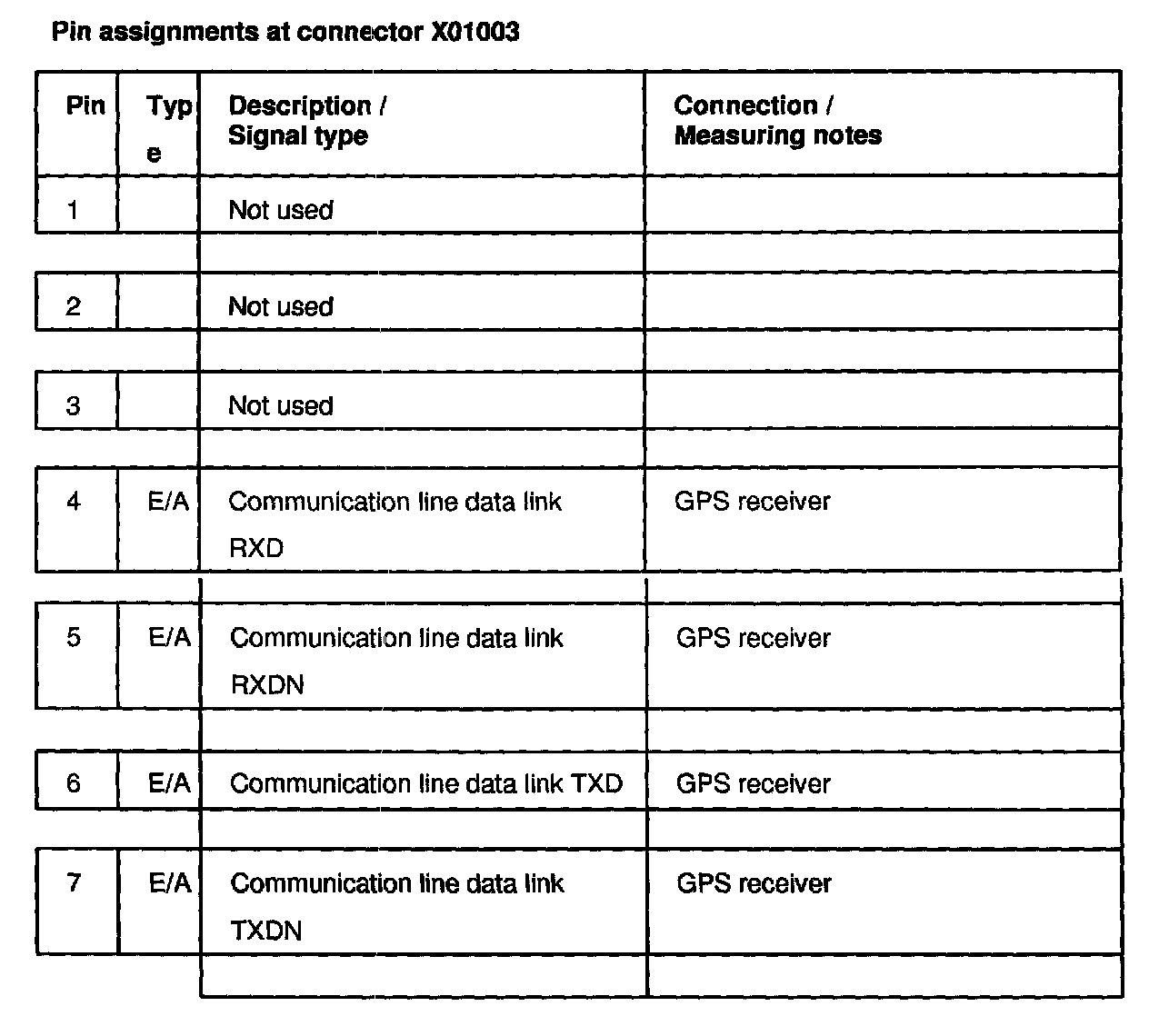

X01003, Pin 1 - 7:
