Home >> BMW >> 1997 >> 528i (E39) L6-2793cc 2.8L DOHC (M52) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Connector Views

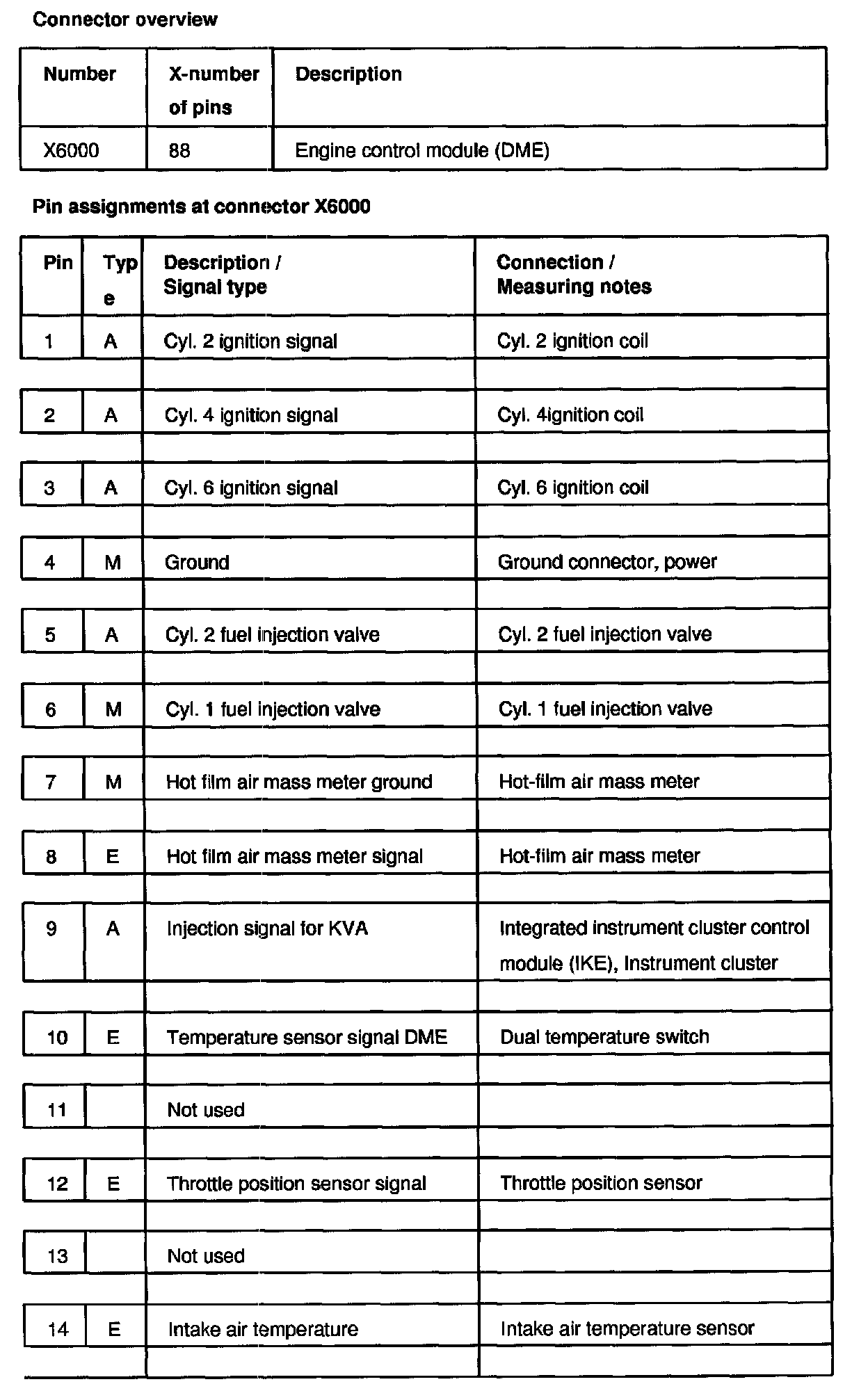

X6000, Pin 1 - 14:

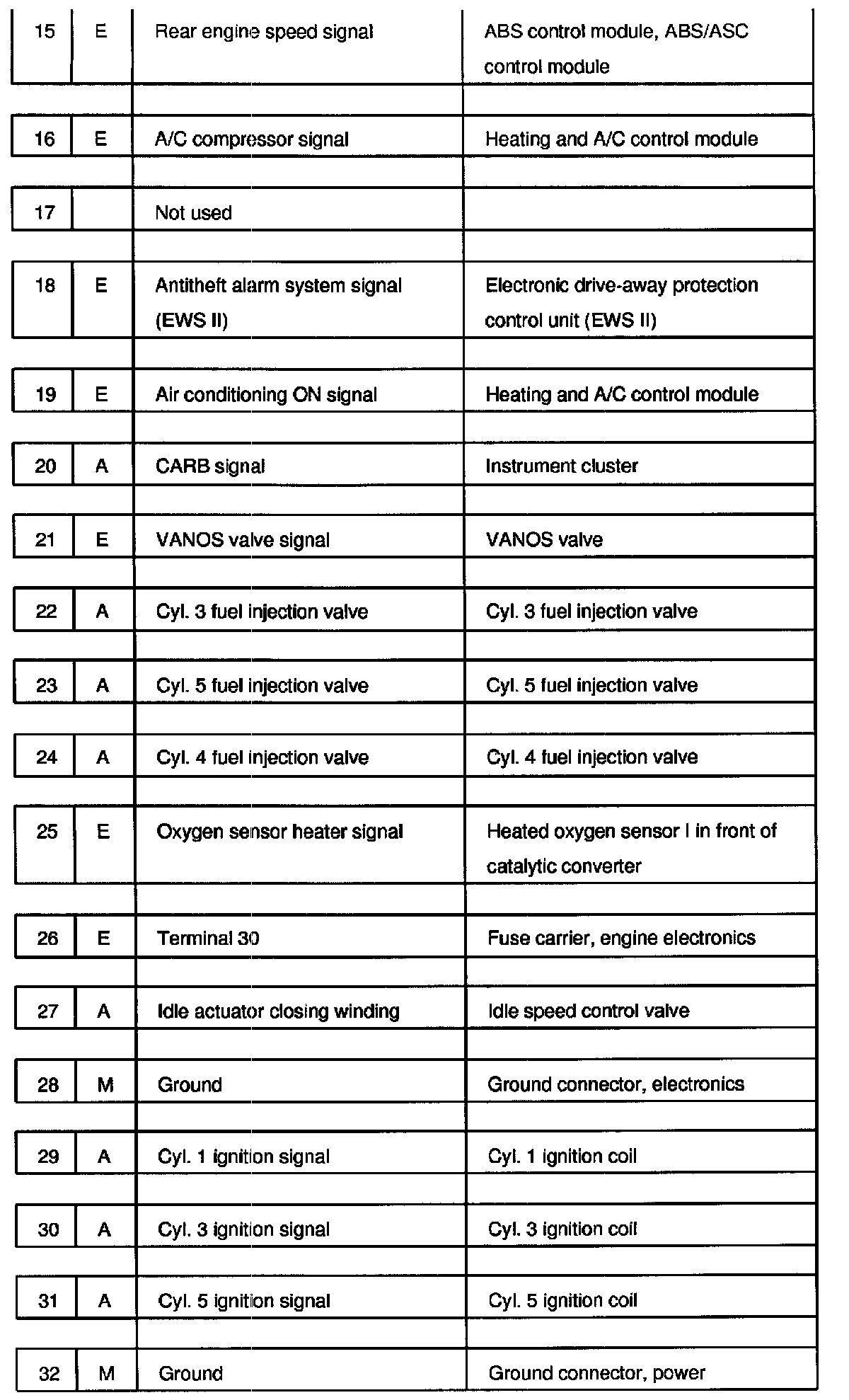

X6000, Pin 15 - 32:

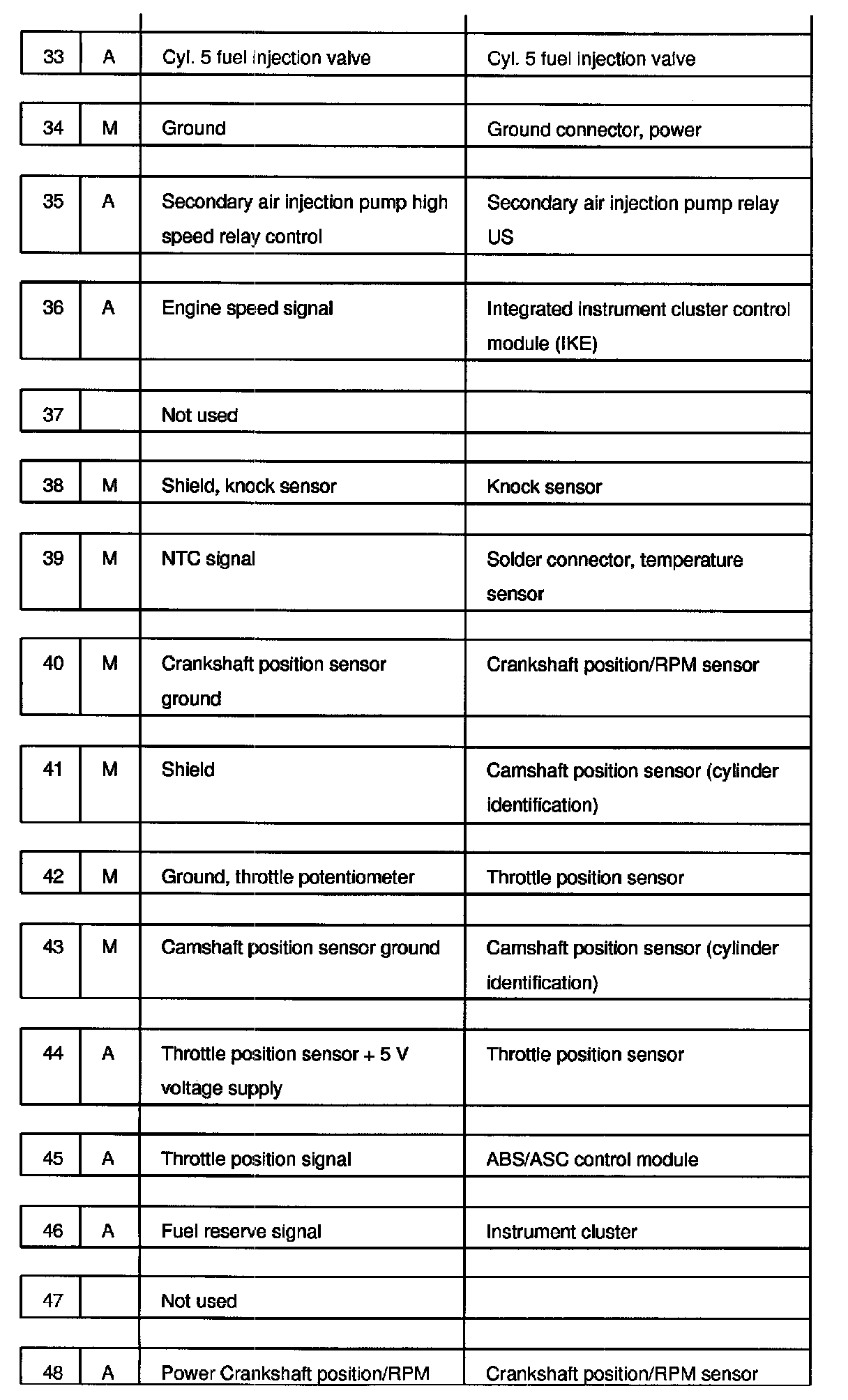

X6000, Pin 33 - 48:

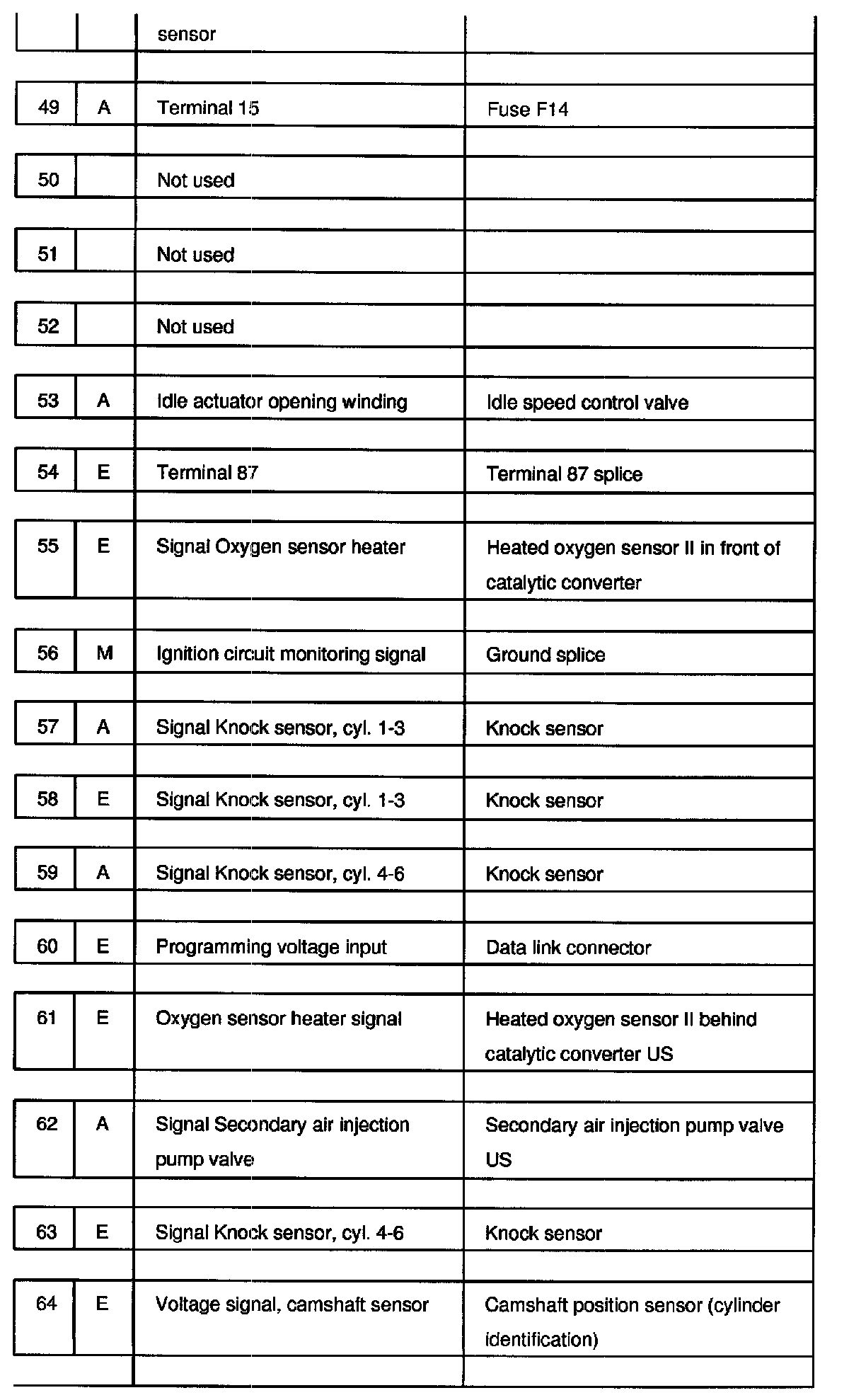

X6000, Pin 49 - 64:

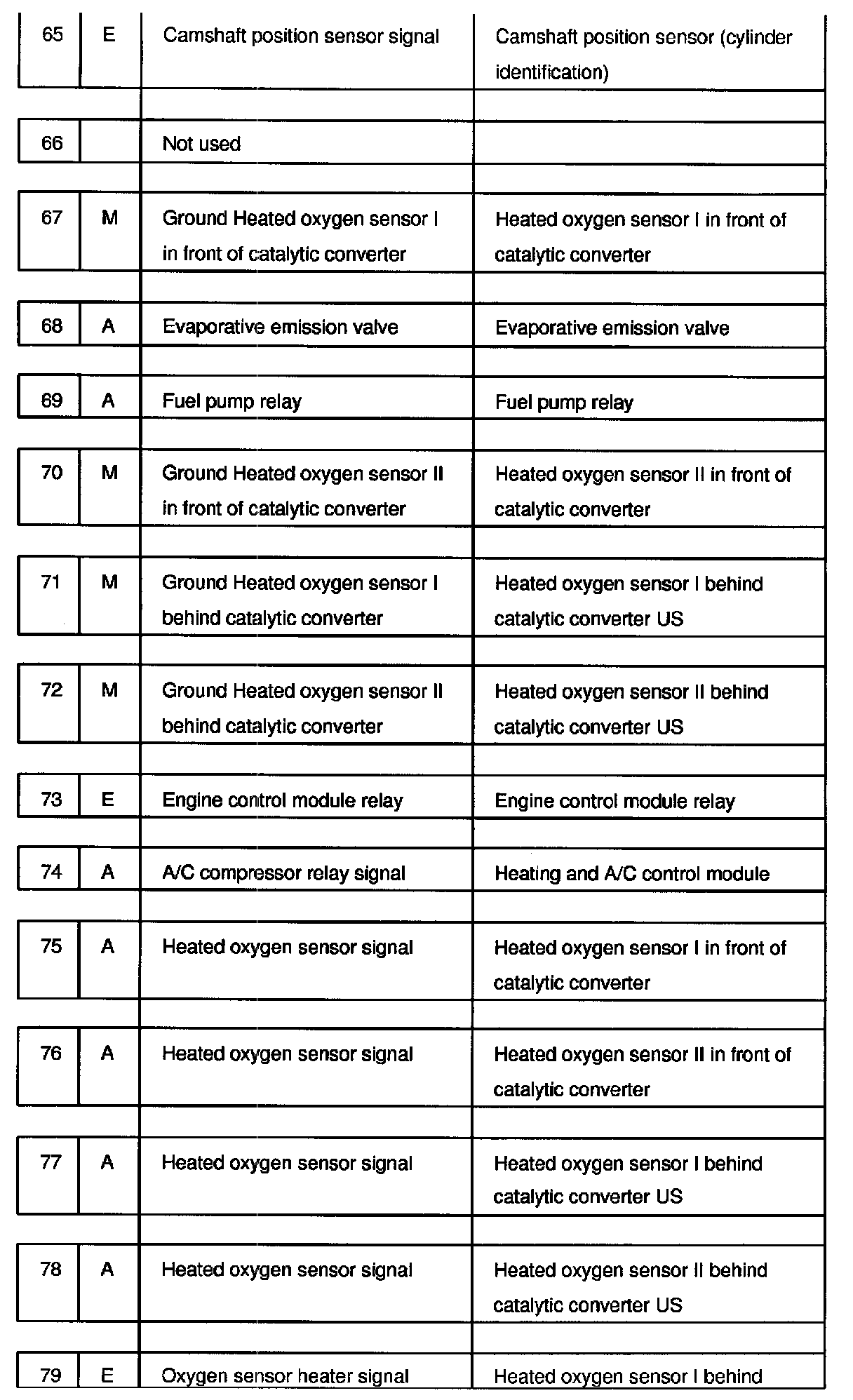

X6000, Pin 65 - 79:

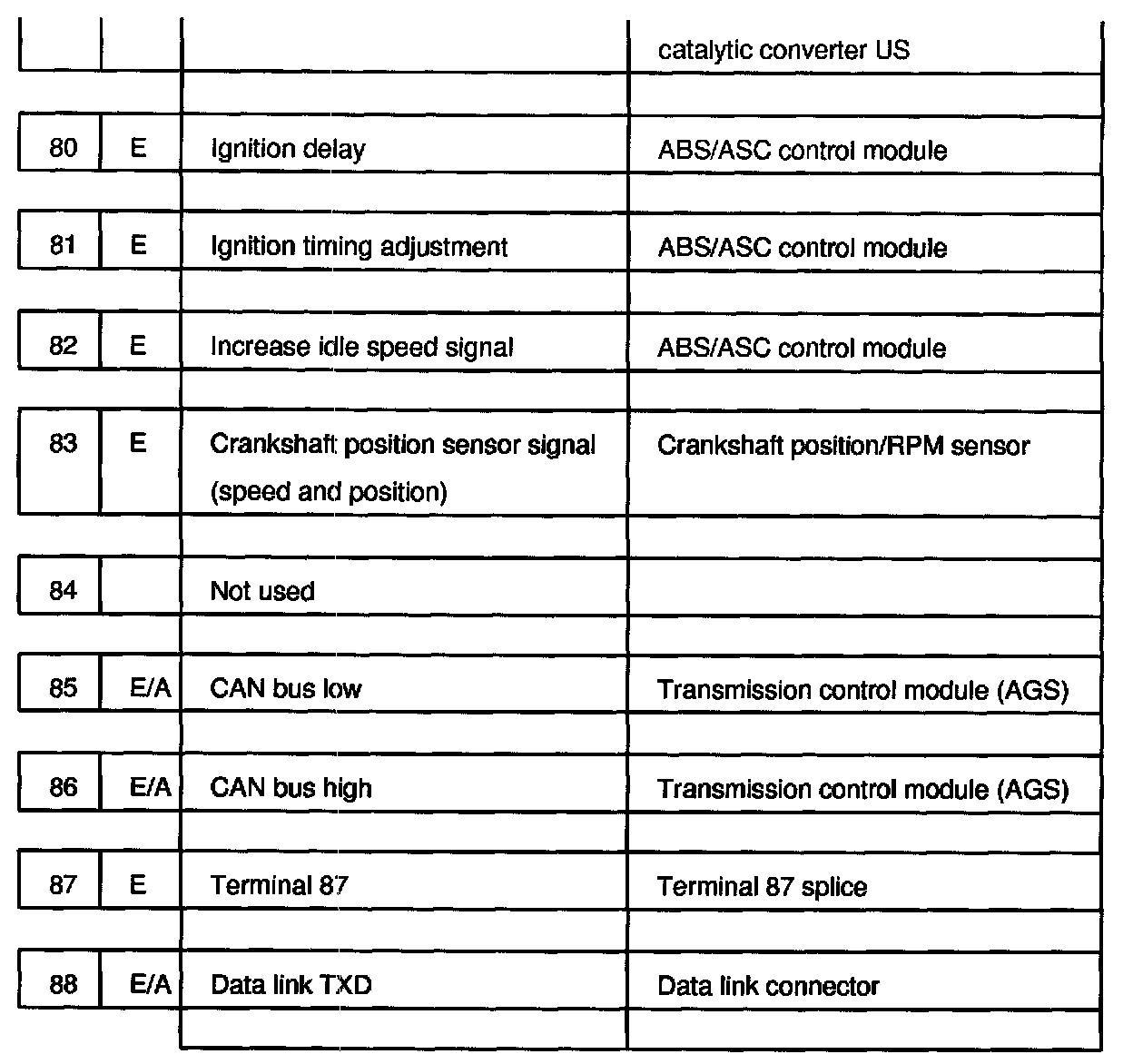

X6000, Pin 80 - 88:
