61 13... Unlocking and disconnecting different plug connections

NOTE: Examples of unlocking and disconnecting different plug connections.

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 1: Pressing Lock And Open Clip

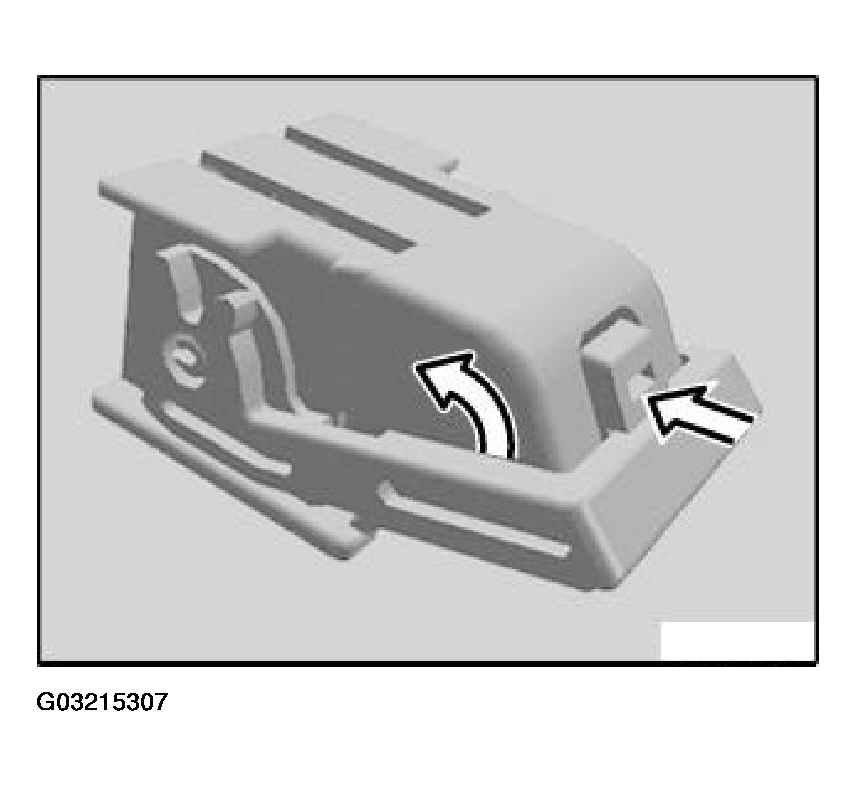

G03215307

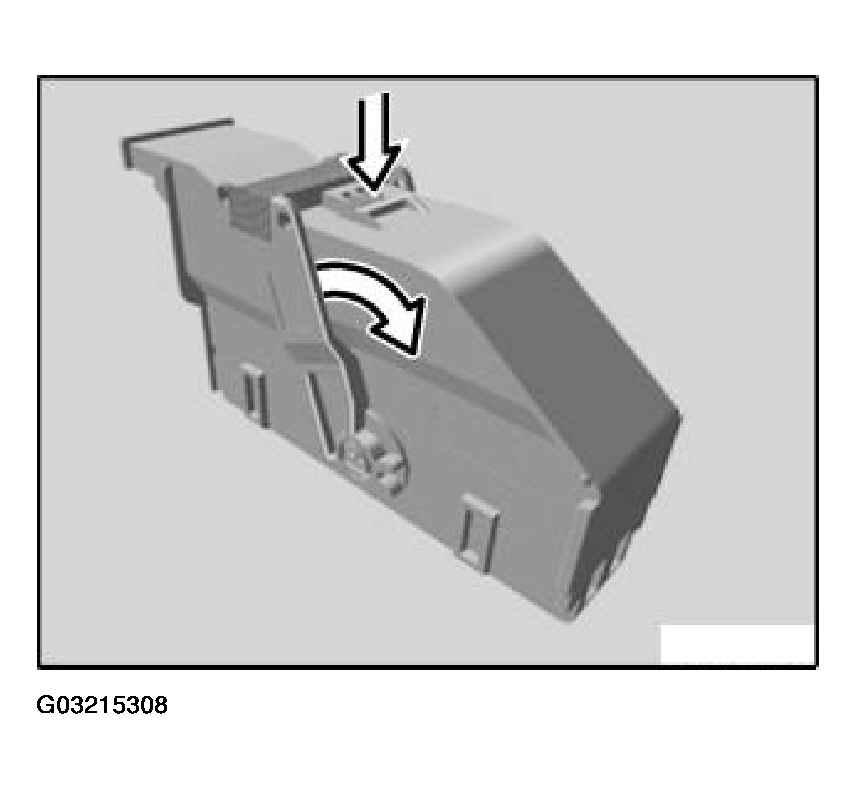

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 2: Pressing Lock And Open Clip

G03215308

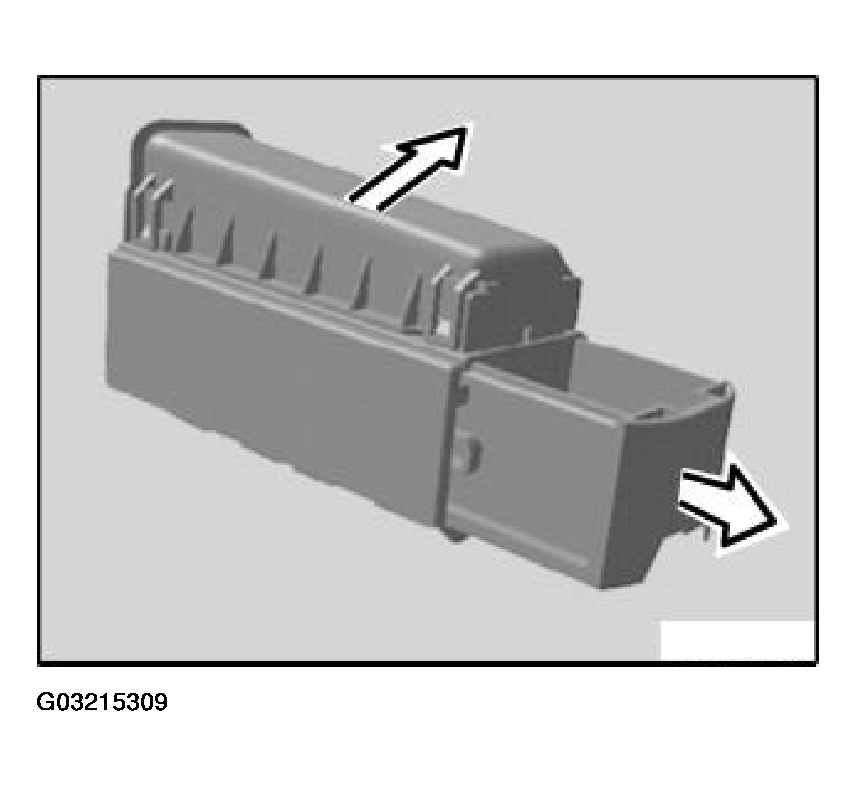

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Opening Clip And Disconnecting Plug Connection

G03215309

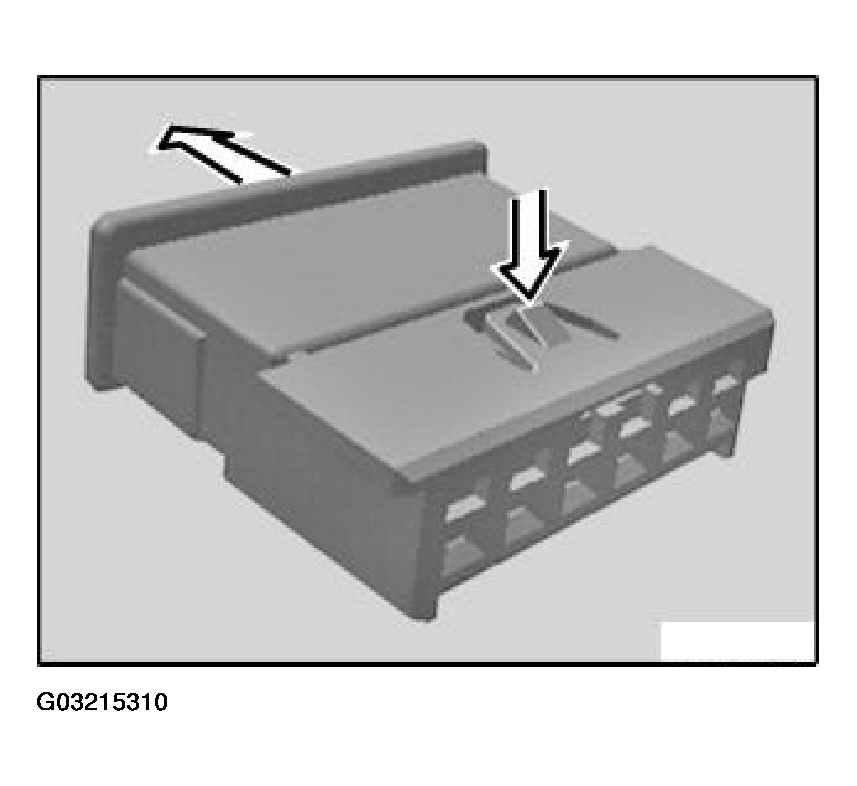

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Pressing Lock And Disconnecting Plug Connection

G03215310

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Pressing Lock And Disconnecting Plug Connection

G03215311

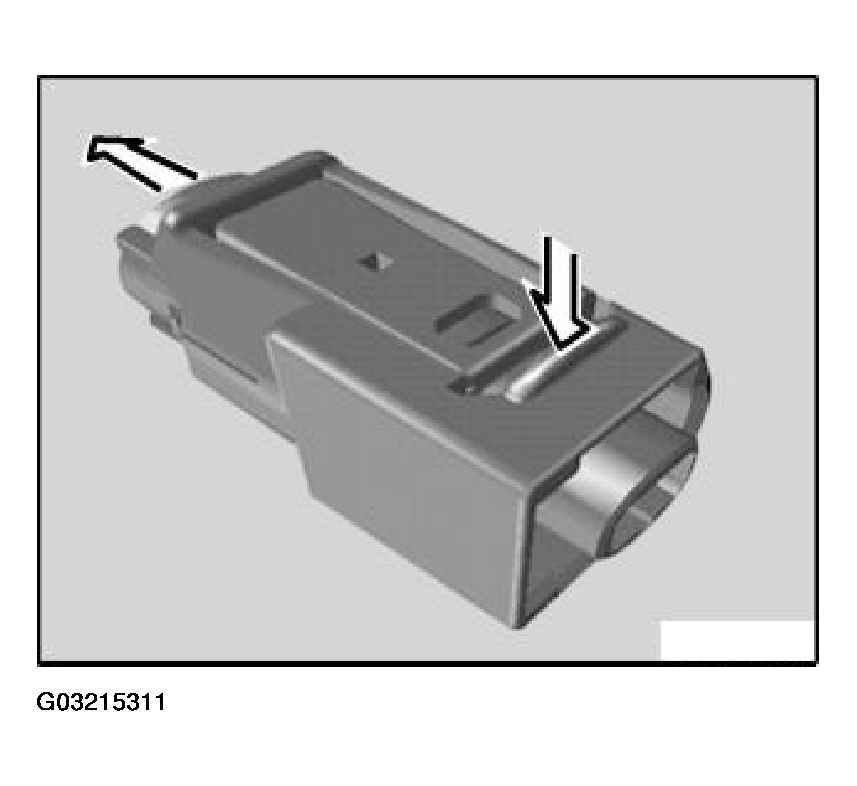

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Pressing Lock And Disconnecting Plug Connection

G03215312

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Pressing Lock And Disconnecting Plug Connection

G03215313

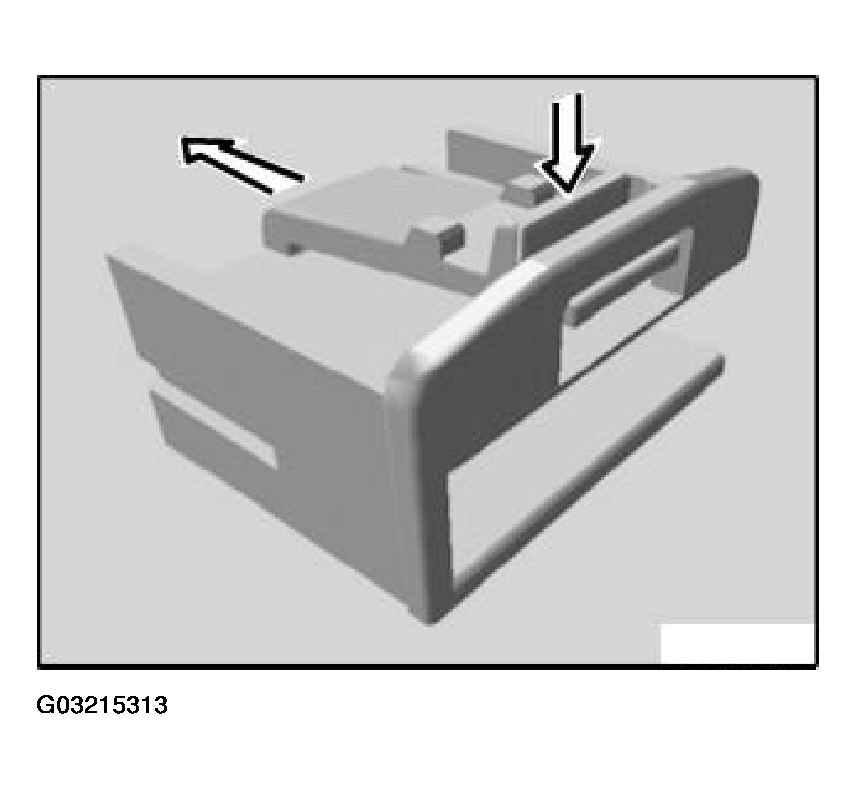

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Pressing Lock And Disconnecting Plug Connection

G03215314

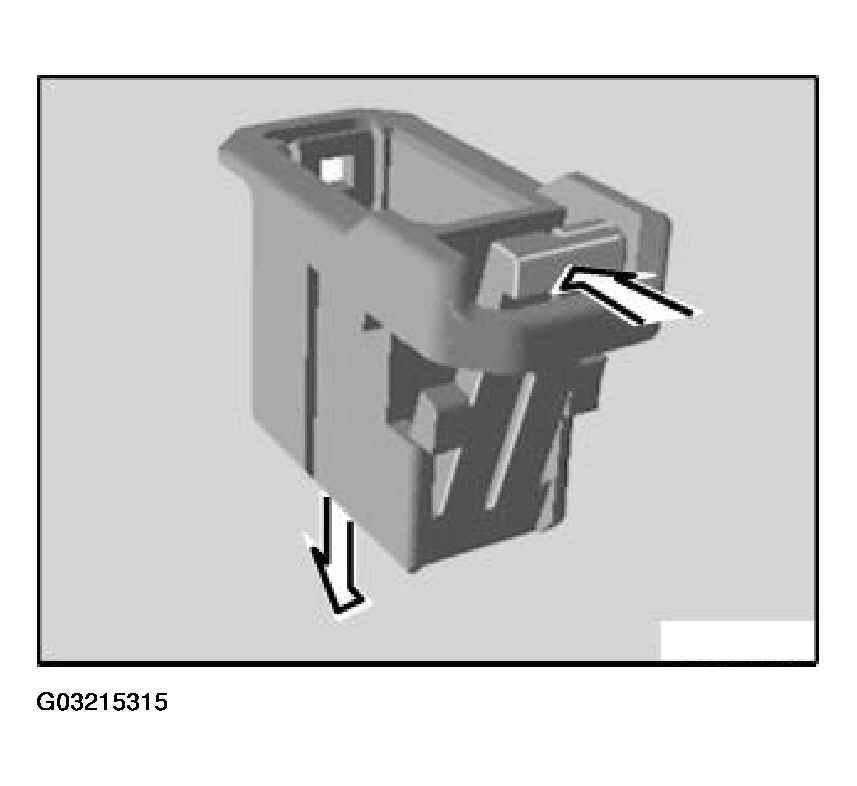

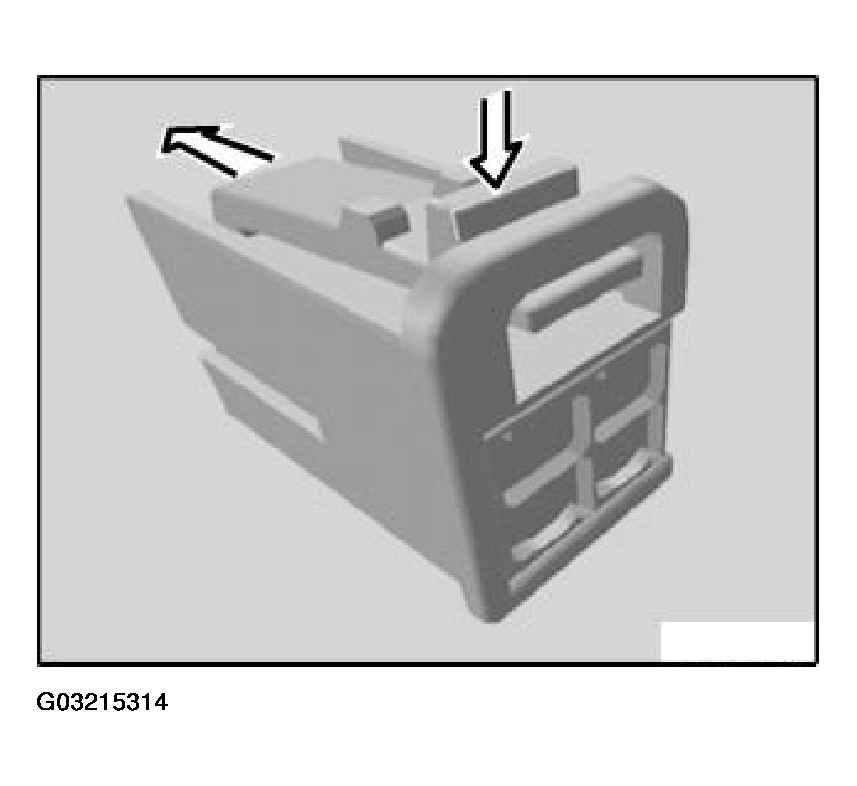

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Pressing Lock And Disconnecting Plug Connection

G03215315
