Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

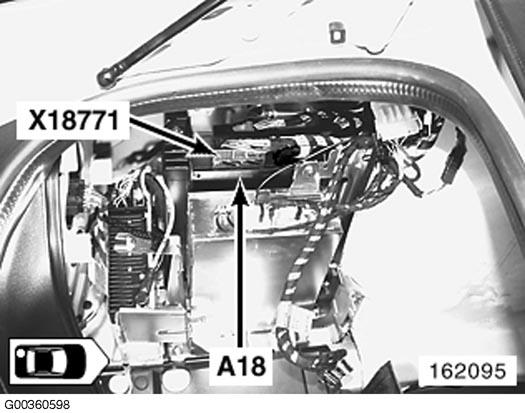

| Amplifier (A18) (Sedan) | Left side of luggage compartment. See Figure. |

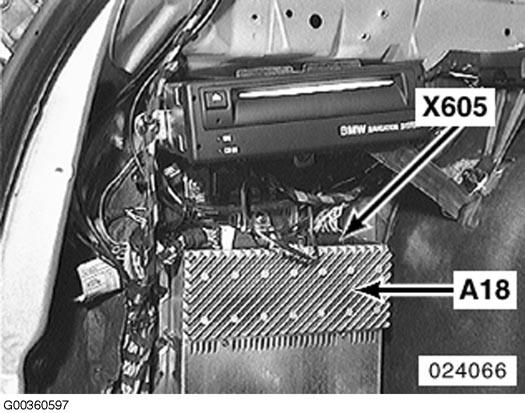

| Amplifier (A18) (Wagon) | Left rear of luggage compartment. See Figure. |

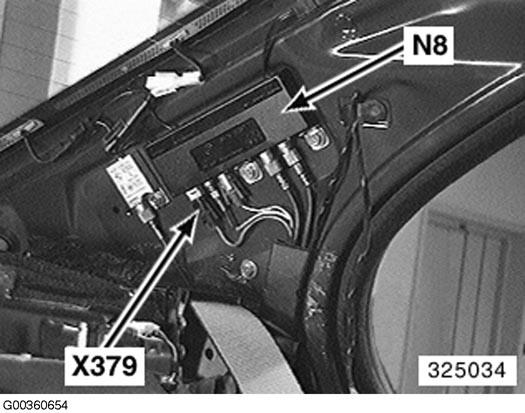

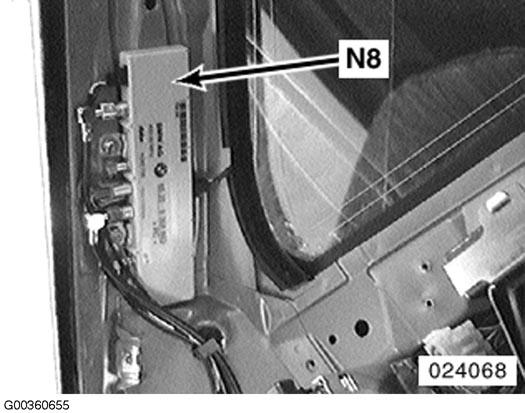

| Antenna Amplifier (N8) | Left "C" pillar. See Figure. |
| Antenna Amplifier (N8) | Left "D" pillar. See Figure. |

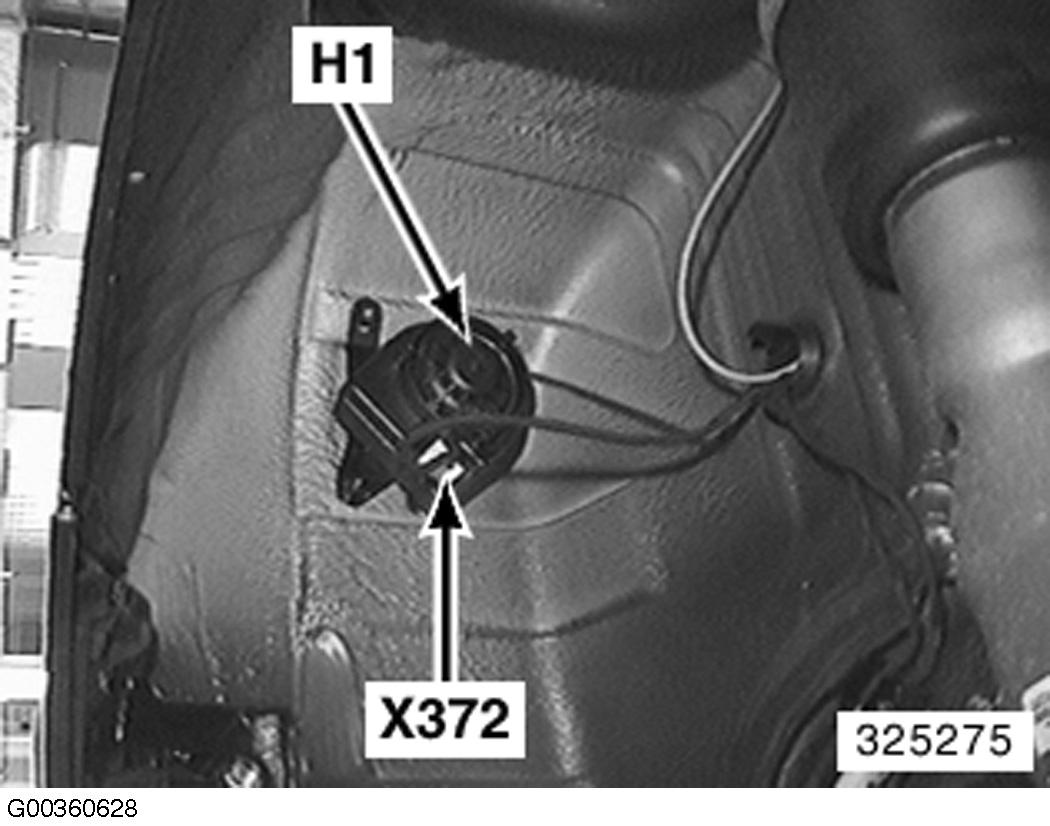

| Anti-Theft Horn (DWA) (H1) | Right rear wheelwell. See Figure. |

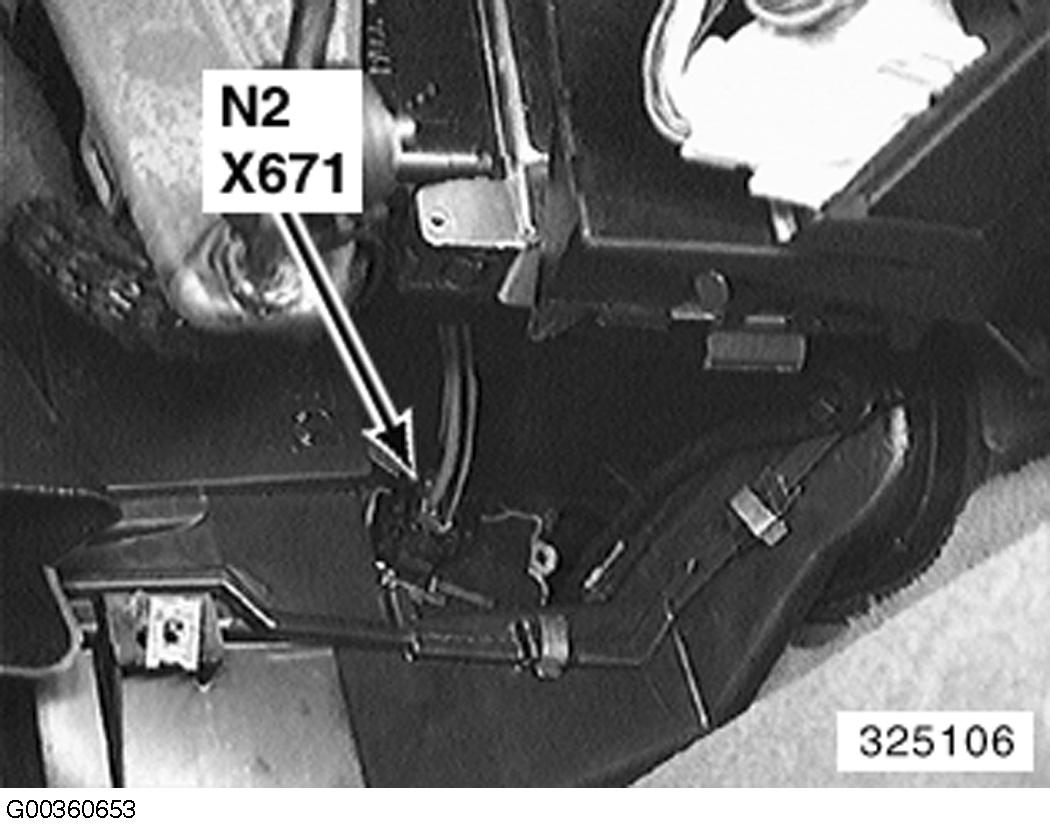

| Final Stage Unit (N2) | Behind center of dash. See Figure. |

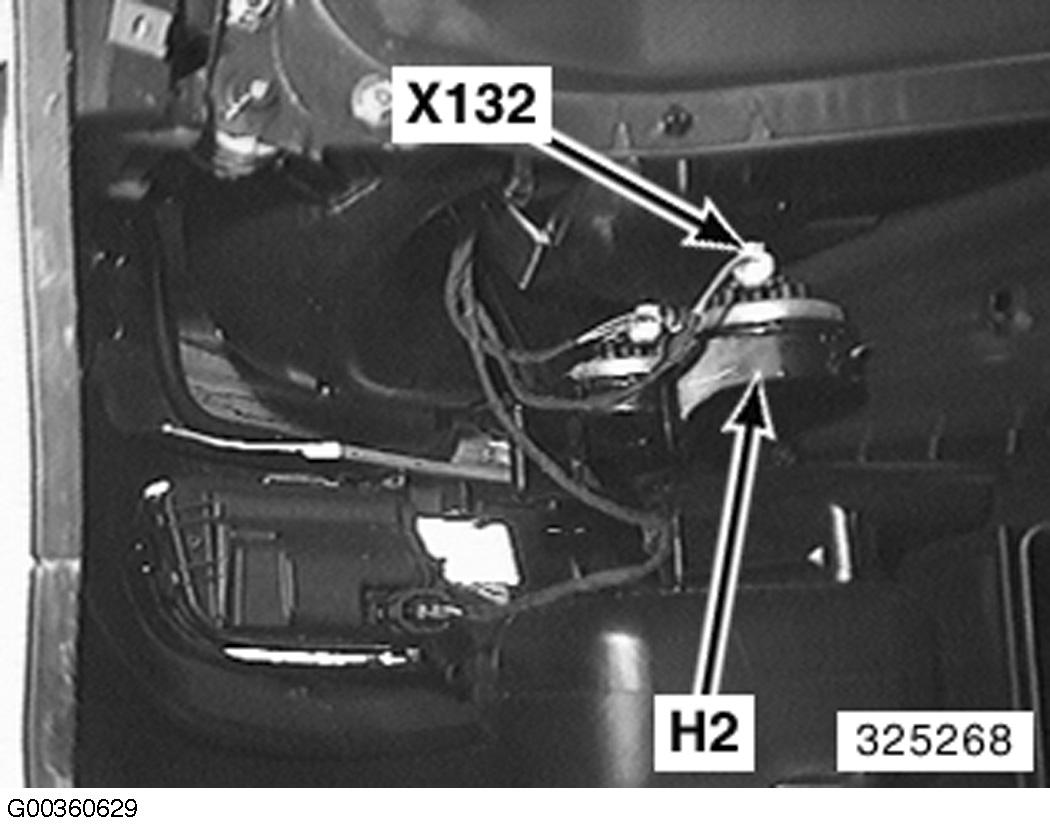

| Horn (Left) (H2) | Left front wheelwell. See Figure. |

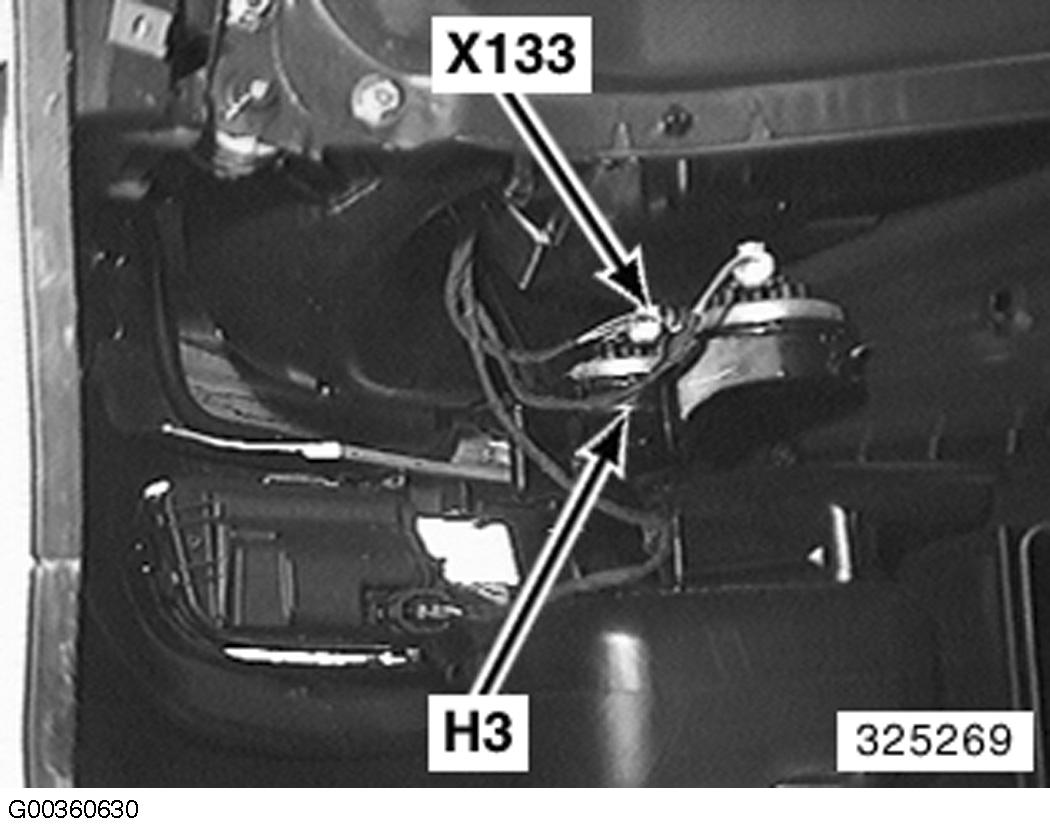

| Horn (Right) (H3) | Left front wheelwell. See Figure. |

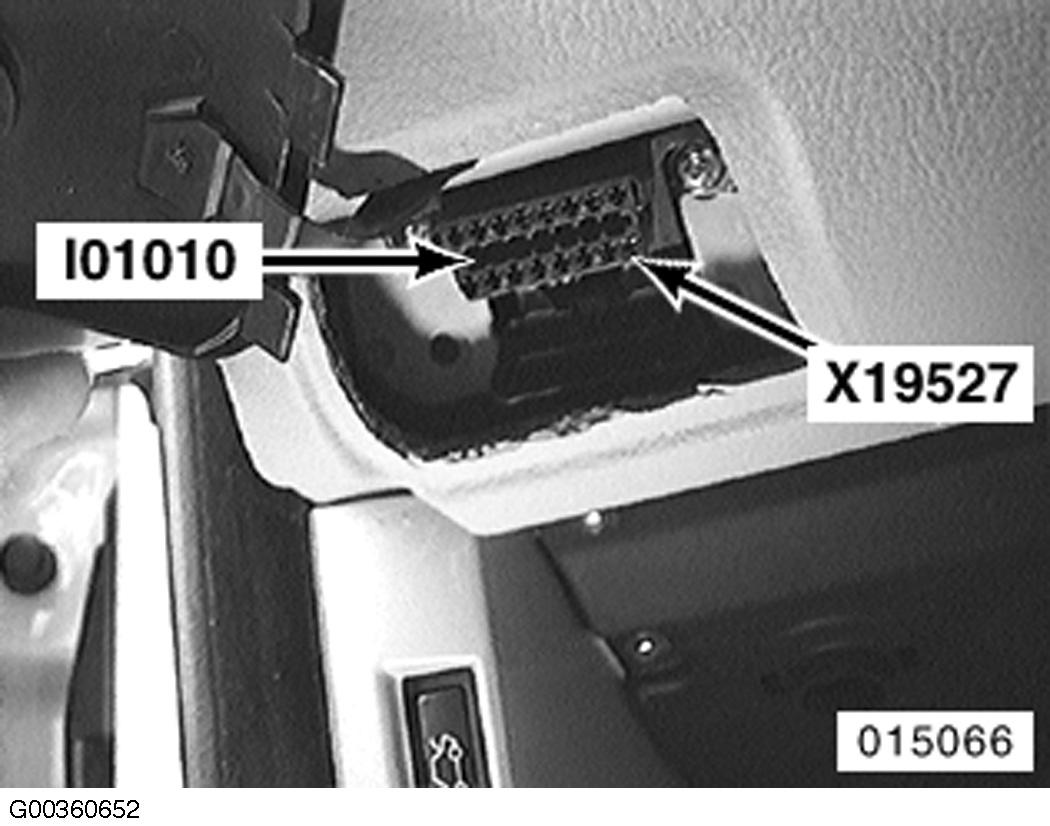

| OBDII Plug (I01010) | Center console. See Figure. |
