Purpose Of The System:
The purpose of the solar sensor is to compensate the climate control system's output for the radiant heating effect of the sun. This will aid the IHKA in maintaining a constant comfort level, in the vehicle's interior, during all driving conditions.
The function of heating and air conditioning systems in BMW vehicles is to provide the driver and passengers a comfortable atmosphere regardless of conditions outside of the vehicle.
Based on the temperature signal inputs, blower setting, flaps portioning, program settings in the control module and influencing variables, the IHKA control module is able to process these inputs to achieve the desired comfort level.
The following input variables are processed by the IHKA module:
- Interior temperature
- Heat exchanger temperature
- Ventilation temperature (E38)
- Evaporator temperature
- Air volume setting
- Engine temperature and RPM
- Exterior temperature

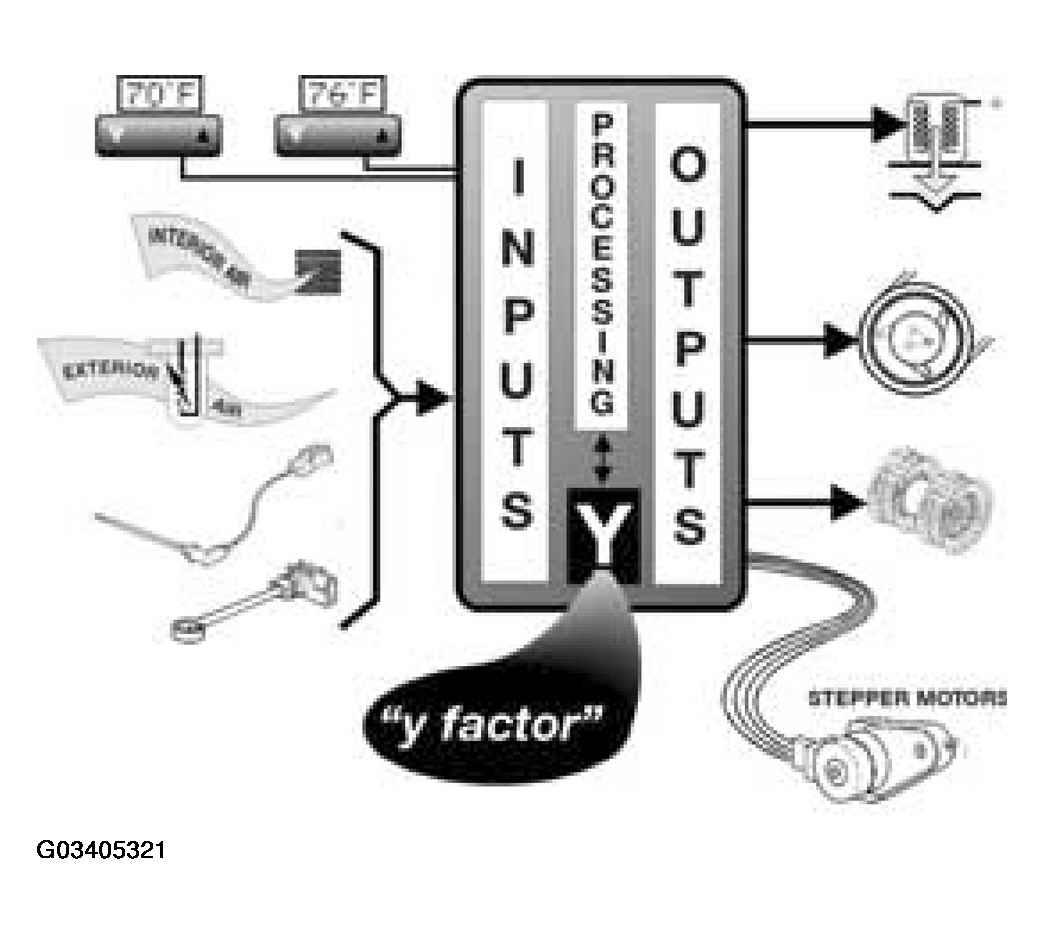

The processed variable "Y - factor" is determined by using the above inputs. The Y - factor then represents how much adjustment is necessary by the IHKA module to achieve the set temperature.
