Threaded Spindle Set (04 08 11)

Publication date: 2011-04-26
Reference number: 04 08 11

THREADED SPINDLE SET

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 08 11, Date of Issue: April 2011

BMW:	All
GROUP:	Tools and Equipment

SUBJECT

Threaded Spindle Set

SITUATION

Distribution of the following tool will not be through the Automatic Tool Shipment Program. This tool may be purchased through your Regional Distribution Center (RDC).

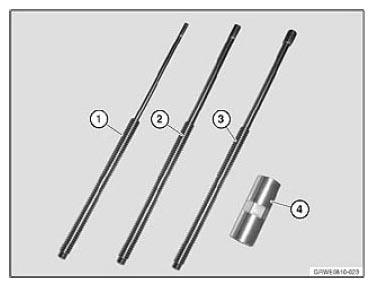

Threaded Spindle Set (4 Pieces)

Order P/N 81 64 2 208 573

This threaded spindle set is used in conjunction with the Hydraulic Wheel Bearing and Output Shaft Tool (B04 13 10 ) to remove and replace rear axle rubber mounts.

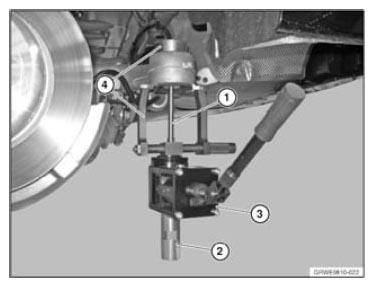

Illustration below shows the removal of a rear axle support rubber mount.
