Fuel Injection And Induction System Cleaning (04 07 07)

Publication date: 2007-12-17
Reference number: 04 07 07

FUEL INJECTION AND INDUCTION SYSTEM CLEANING

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 07 07, Date of Issue: December, 2007

BMW:

E46 (3 Series) vehicles equipped with M54 or M56 engines; E46 (M3) vehicles equipped with S54 engine; E53 (X5) vehicles equipped with M54 engine; E53 (X5) vehicles equipped with N62 engine; E83 (X3) vehicles equipped with M54, N52 or N52K engines; E85 (Z4) vehicles equipped with M54, N52 or N52K engines; E85 (M Roadster and M Coupe) with S54 engine; E60 and E61 (5 Series) vehicles equipped with M54, N52 or N52K engines; E60 (5 Series) vehicles equipped with N62 or N62TU engines; E63 and E64 (6 Series) vehicles equipped with N62 or N62TU engines; E65 and E65 (7 Series) vehicles equipped with N62 or N62TU engines; E70 (X5) vehicles equipped with N52K engine; E70 (X5 vehicles equipped with N62TU engine; E90, E91 and E92 (3 Series) vehicles equipped with N51, N52 and N52K engines

GROUP:

04 - Tools and Equipment

Superceded Bulletin(s): SI B04 07 07, Date of Issue: April, 2007

NOTE: This Service Information bulletin supersedes SI B 04 07 07 dated April 2007 .

SUBJECT

Fuel Injection and Induction System Cleaning

SITUATION

Deposits found in the injection and induction system will cause the vehicle to experience a variety of driveability complaints, eventually leading to the illumination of the Service Engine Soon Lamp.

Refer to SI B13 01 07 for complete details, as well as in-depth operational instructions.

Distribution of the following tools will be through the Automatic Tool Shipment Program.

Additional tools may be purchased through your PDC.

Fuel Injector and Induction System Cleaner Applicator Kit

PN 82 14 0 429 692

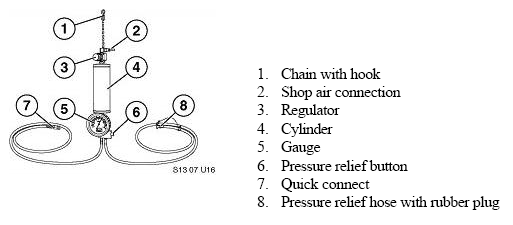

Fig 1: Fuel Injector And Induction System Cleaner Applicator Kit

Fuel Injector and Induction System Cleaner Concentrate

PN 82 14 0 428 376

The cleaner will not be sent via the Automatic Tool Shipment Program. This item must be ordered by each center.

Fig 2: Fuel Injector And Induction System Cleaner

IMPORTANT: Before starting the cleaning procedure, place the vehicle in a well-ventilated area. If the cleaning procedure occurs indoors, be sure to have the vehicle connected to an exhaust removal system. It is necessary to wear Nitrile rubber gloves and safety glasses during this procedure.

TOOL WARRANTY INFORMATION

The use of non-approved materials voids the warranty of the Fuel Injector and Induction System Cleaner Applicator Kit PN 82 14 0 429 692 and its contents. All of these tools are returned for inspection. If the materials causing damage to these tools have been identified, then the tool will be returned to your center and a replacement credit will not be applied. When the tools described above are returned for warranty reimbursement, the tool must be accompanied by contact information and a reason for return in the shipping carton. Using a non-approved material can lead to deterioration of the tool, resulting in incorrect operation and a possible safety concern. The Fuel Injector and Induction System Cleaner Applicator is constructed with materials that are compatible with gasoline and the Fuel Injector and Induction System Cleaner Concentrate PN 82 14 0 428 376 only .
