E65 Bus System

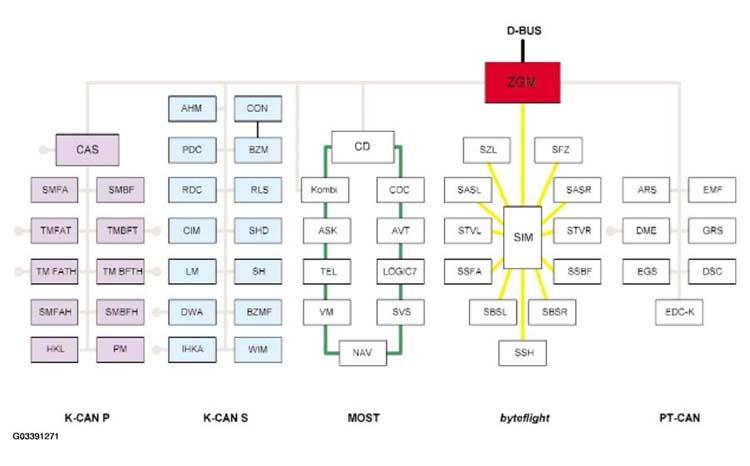

Fig 1: Identifying E65 BUS System Diagram
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
