Communication Direction In MOST structure: Notes

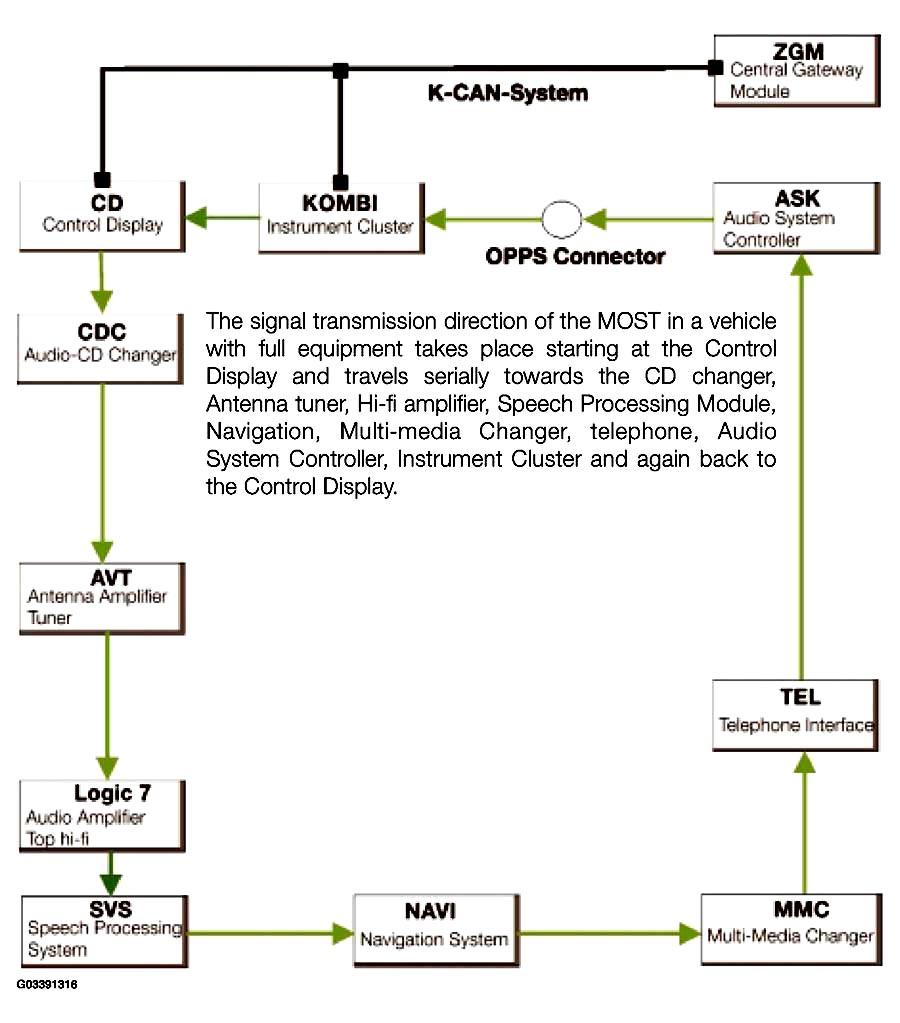

Fig 1: Identifying Communication Direction In MOST Structure
G03391316Courtesy of BMW OF NORTH AMERICA, INC.

Important!!! The component sequence of the MOST controllers in the ETM is incorrect when it comes to signal transmission direction. The correct sequence is indicated above!
