Residual Fuel Collection Device (04 28 04)
Publication date: 2004-11-01Reference number: 04 28 04
RESIDUAL FUEL COLLECTION DEVICE
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI B 04 28 04, Date of Issue:
November 2004
| BMW: | N73 |
| GROUP: | 04 - Tools and Equipment |
SUBJECT
Residual Fuel Collection Device
SITUATION
Distribution of the following tools will not be through the Automatic Tool Shipment Program. Tools may be purchased through your PDC.

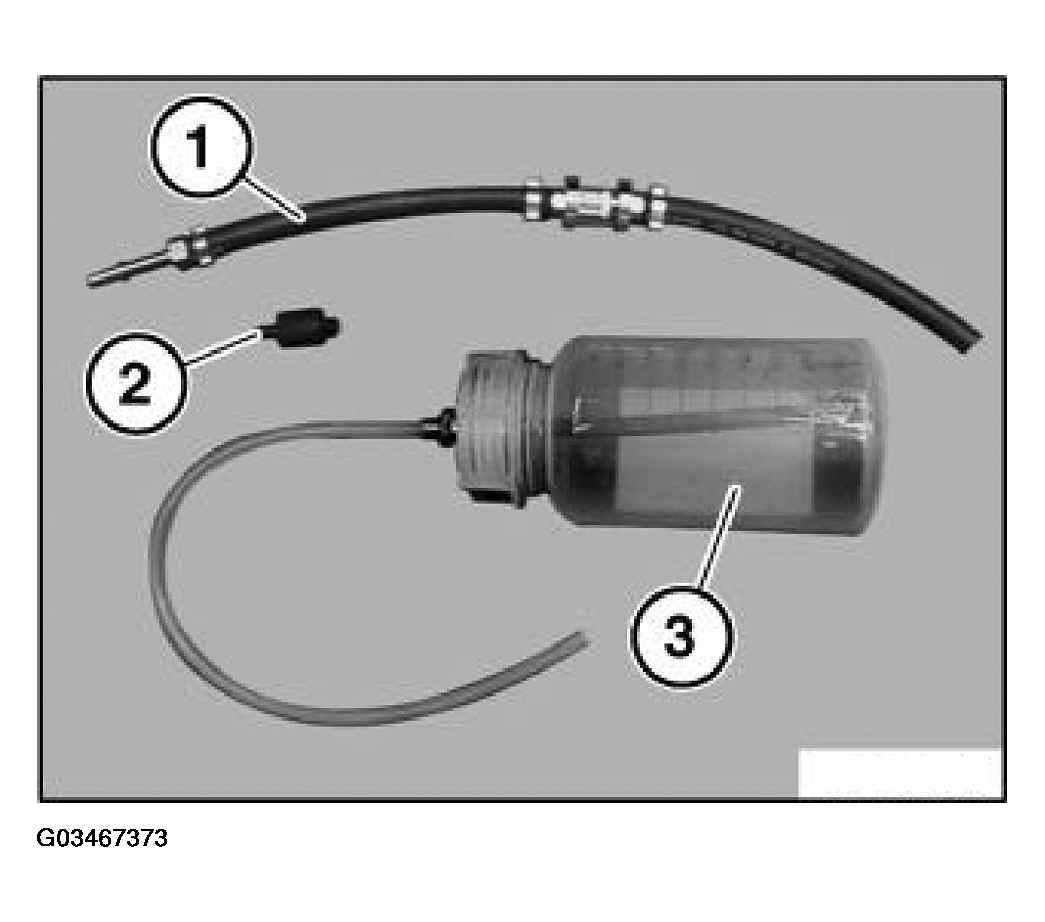

Residual Fuel Collection Device
PN 90 88 6 130 130
- Compressed air hose with filter
- Adapter
- Collector

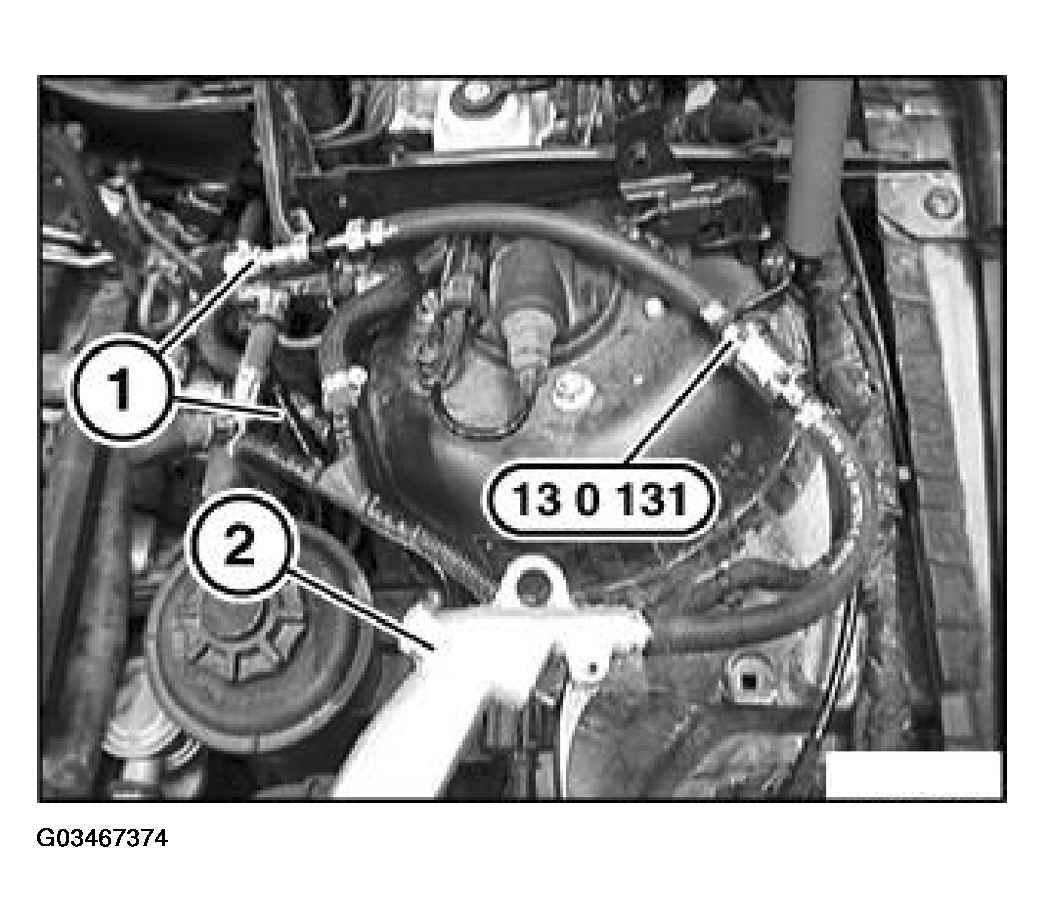

Used to safely collect the residual fuel in the N73 fuel lines in order to perform work on the fuel system. Refer to repair manual section 13 53 175.
TOOL WARRANTY INFORMATION
Refer to Parts Information bulletin 01 01 95 for tool warranty details.
