Cluster Overview

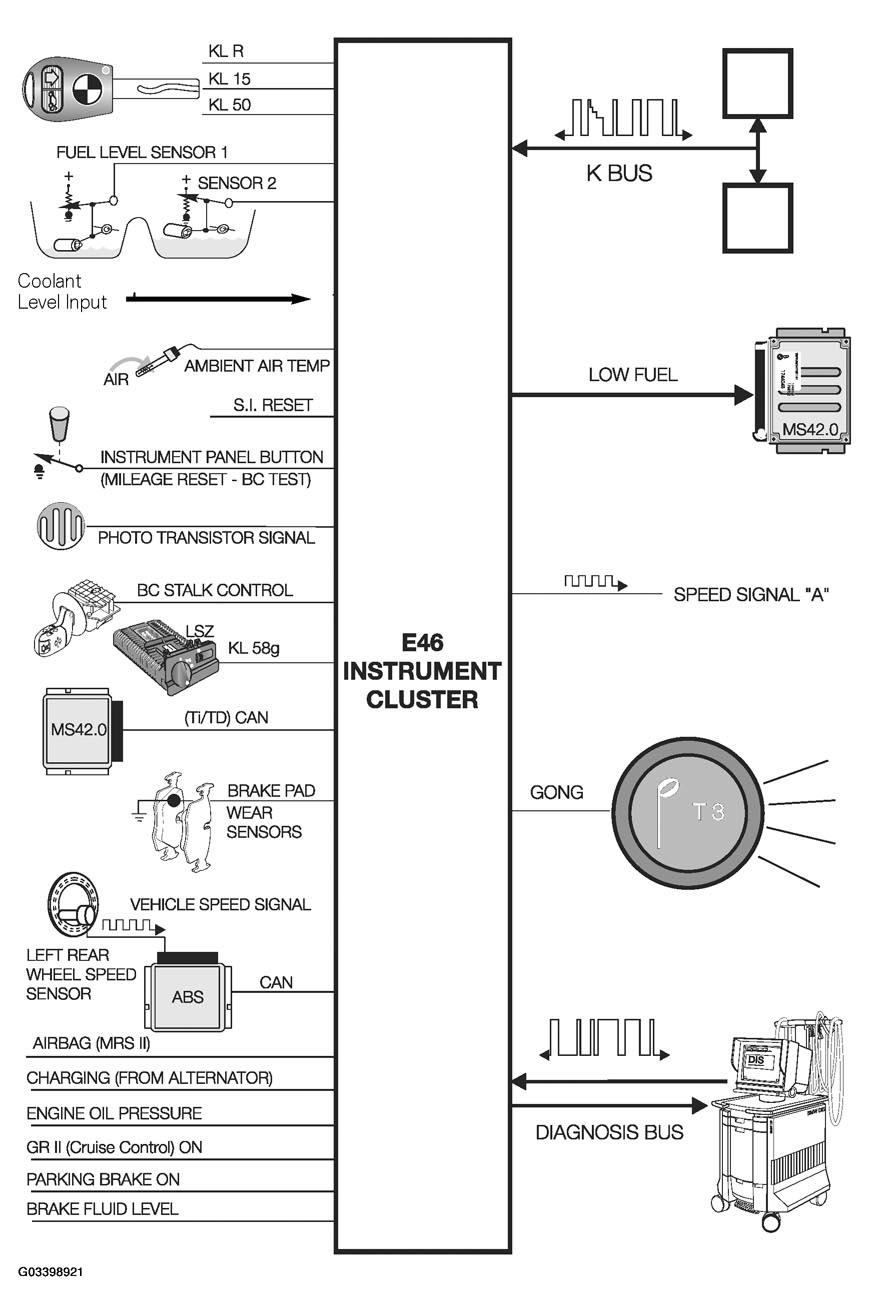

Fig 1: Identifying E46 Cluster Overview
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
