Analog Signals

Analog signals transmit information through an electrical circuit by regulating or changing the current or voltage.

The voltage of the signal has no fixed value. The value may be anywhere in the operating range of the signal.

Three sources of analog signals are:

• NTC Sensors.
• PTC Sensors.
• Potentiometers.

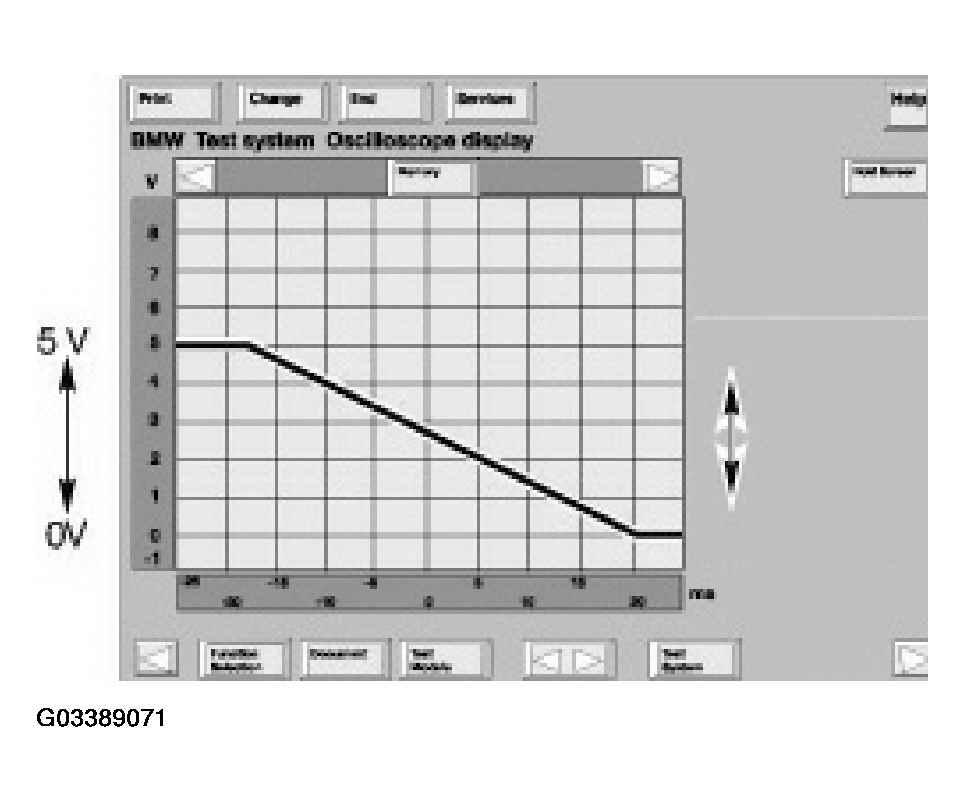

Fig 1: Identifying Analog Signals

Courtesy of BMW OF NORTH AMERICA, INC.
