86 21 ... Removing lid

NOTE: Adjusting side lid to fit, refer to 86 21 ... ADJUSTING SIDE LID TO FIT .
Adjusting rear lid to fit, refer to 86 21 ... ADJUSTING REAR LID TO FIT .

NOTE: The text describes how to remove the lid at one rear lid mounting point as an example. Proceed in the same way for the side lids. Spare part lids are always supplied without complete locking systems.

Two persons are required for this task.

NOTE: Open lid.

Loosen screws (1). Remove lid (2).

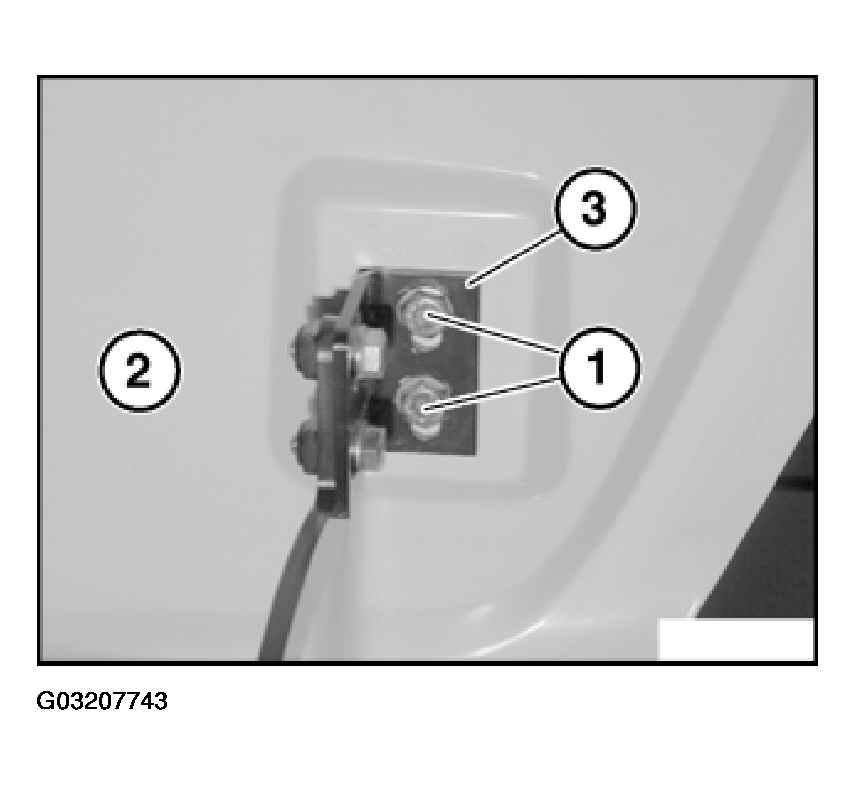

Fig 1: Removing Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rear lid: shoulder (3) points to middle of hood.

Side lid: shoulder (3) points to outside of hood.

Tightening Torque: 23 Nm.
