86 21 ... Removing plug for inside light

NOTE: Two different types of plugs are used for the inside light. Both types function in the same way, only their designs are different.

Type 1:

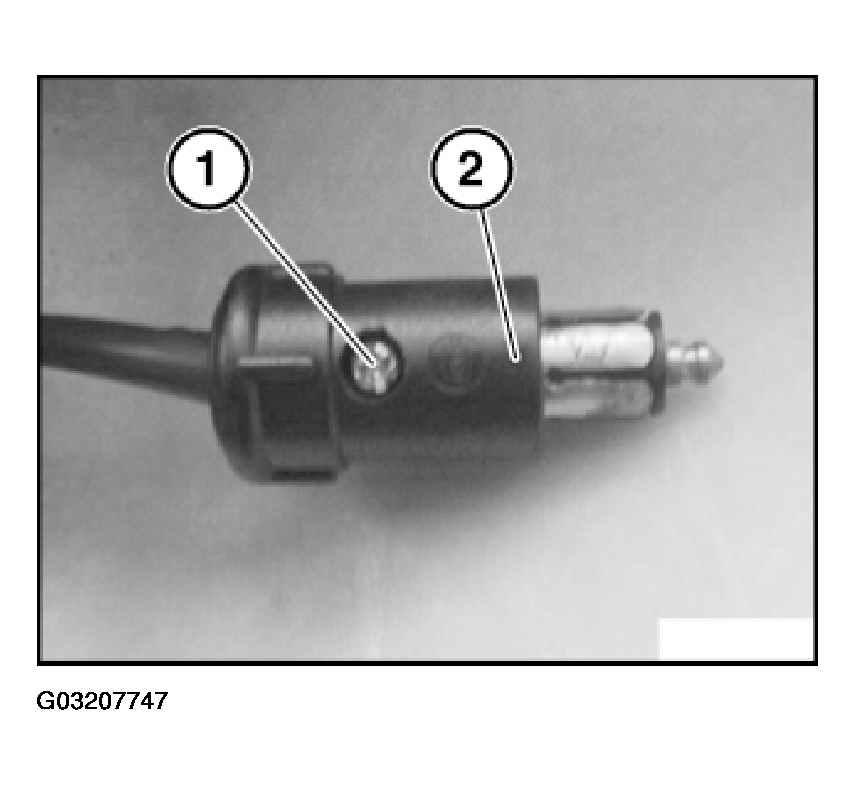

Release screw (1) and separate housing plug (2).

Fig 1: Separating Housing Plug

Courtesy of BMW OF NORTH AMERICA, INC.

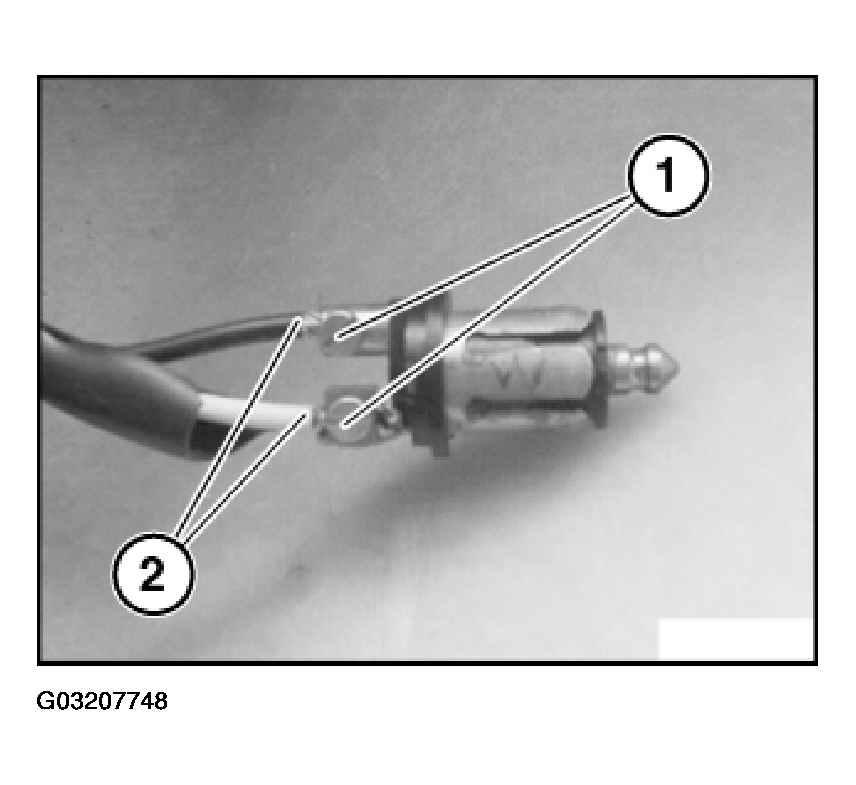

Release screws (1) and disconnect cables (2) from screw clamp.

Fig 2: Disconnecting Cables From Screw Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Type 2:

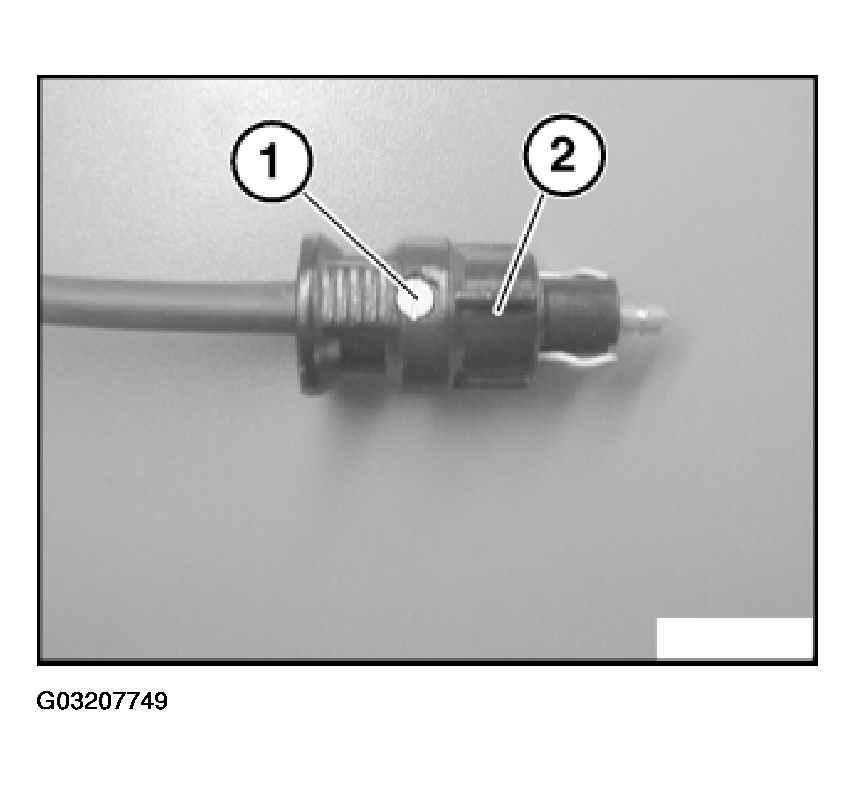

Release screw (1) and separate housing plug (2).

Fig 3: Separating Housing Plug

Courtesy of BMW OF NORTH AMERICA, INC.

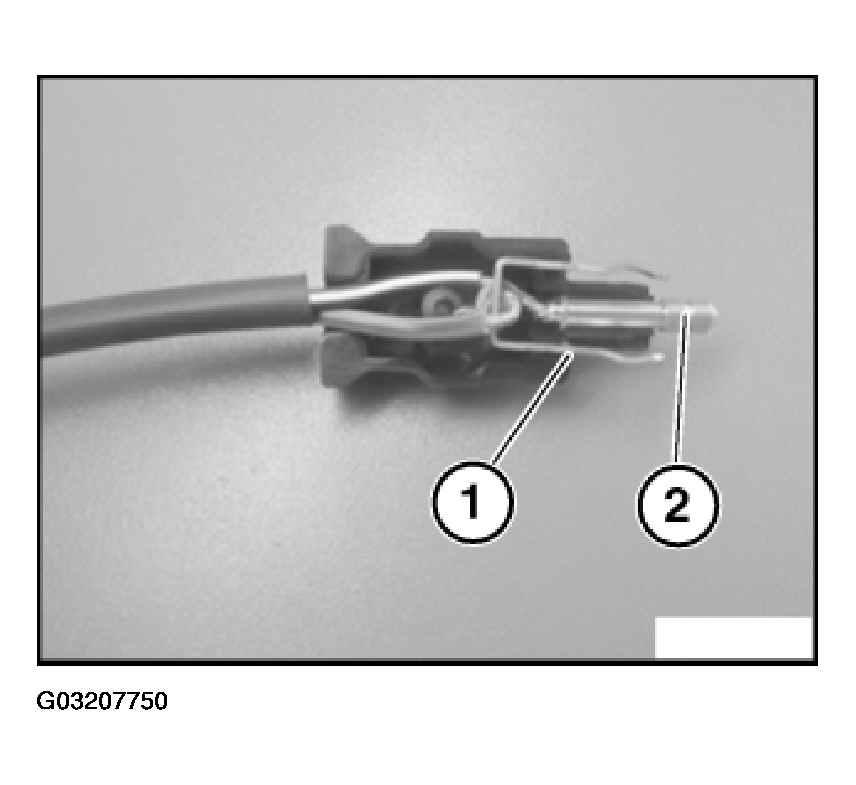

Remove contact parts (1+2).

Fig 4: Removing Contact Parts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When installing, make sure contact parts (1+2) are in correct installation position.
