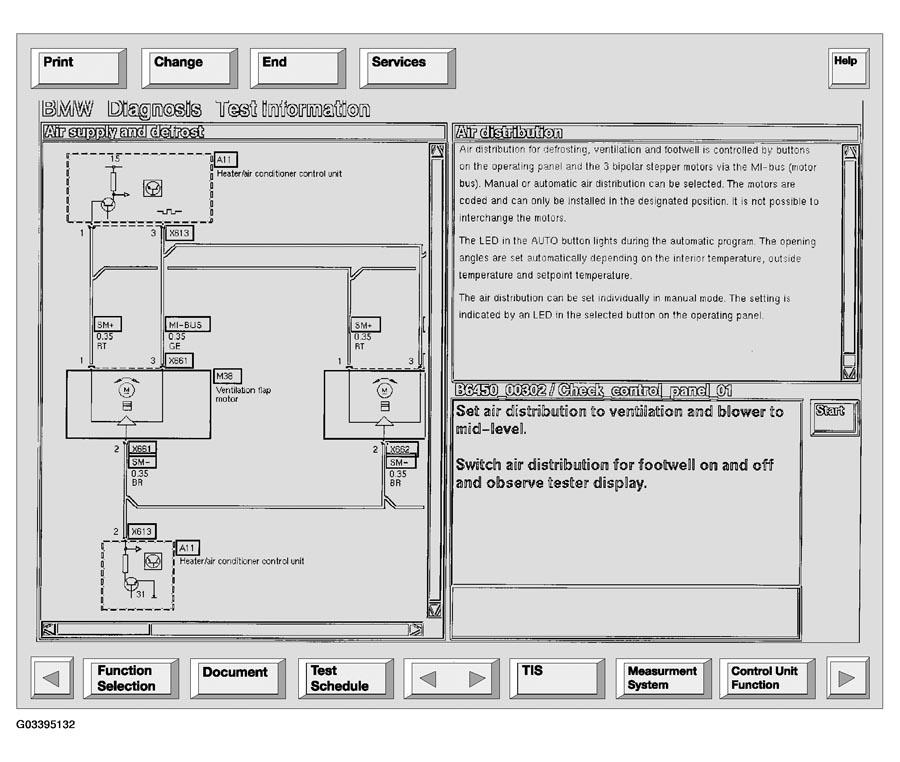

Test Information
Press the continue arrow to advance to the next test schedule. The Test Information screen appears automatically.
The test information screen automatically displays documents including:
- Wiring Schematics,
- Functional descriptions,
- Connector locations, etc.
The Test Dialog box displays test points and nominal values automatically. This screen format is used throughout the diagnostic software for all systems.
