Trouble Shooting

For procedure on front axle, see Fig 1 . For procedure on rear axle, see Fig 2 .

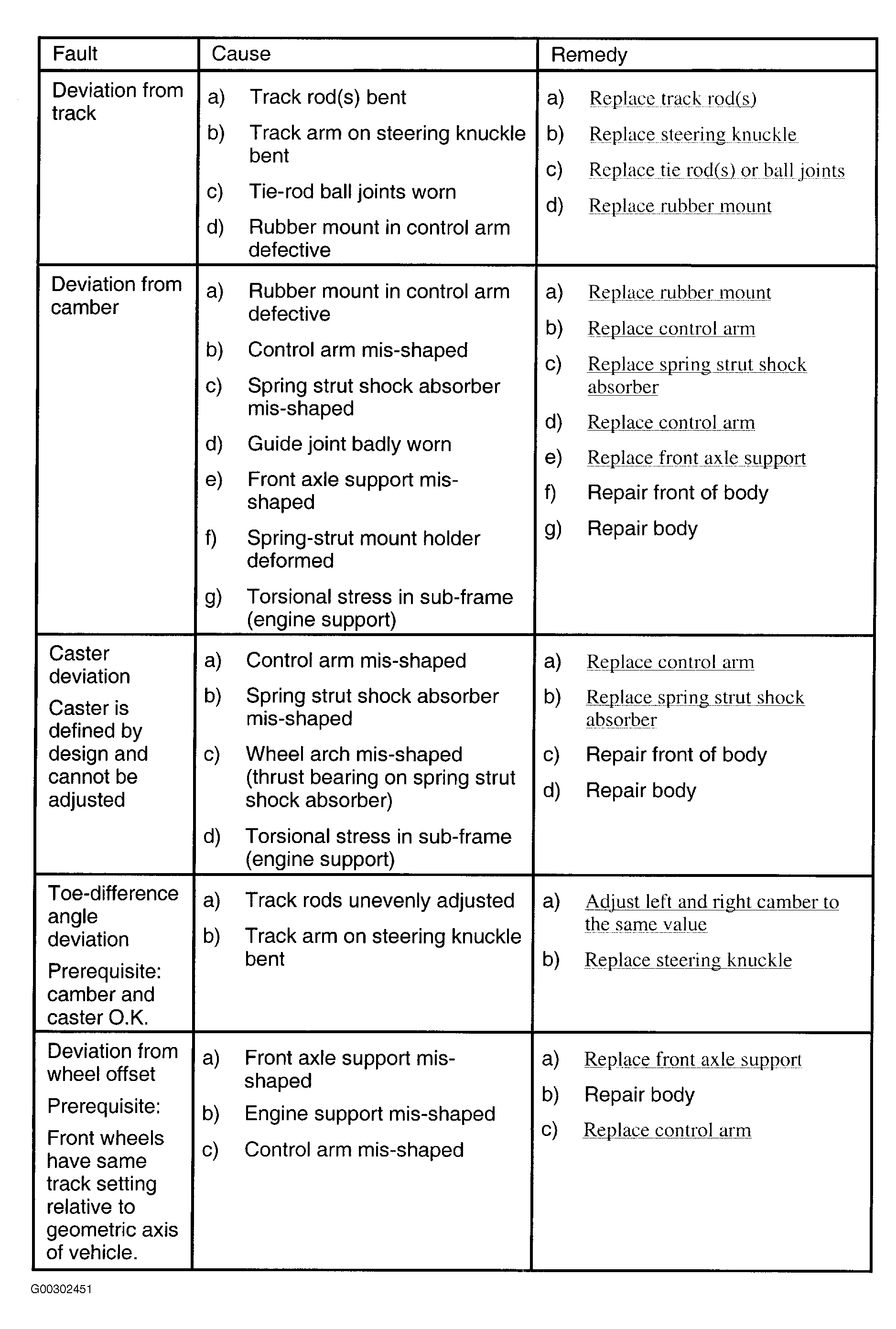

Fig 1: Trouble Shooting Front Axle Alignment
G00302451Courtesy of BMW OF NORTH AMERICA, INC.

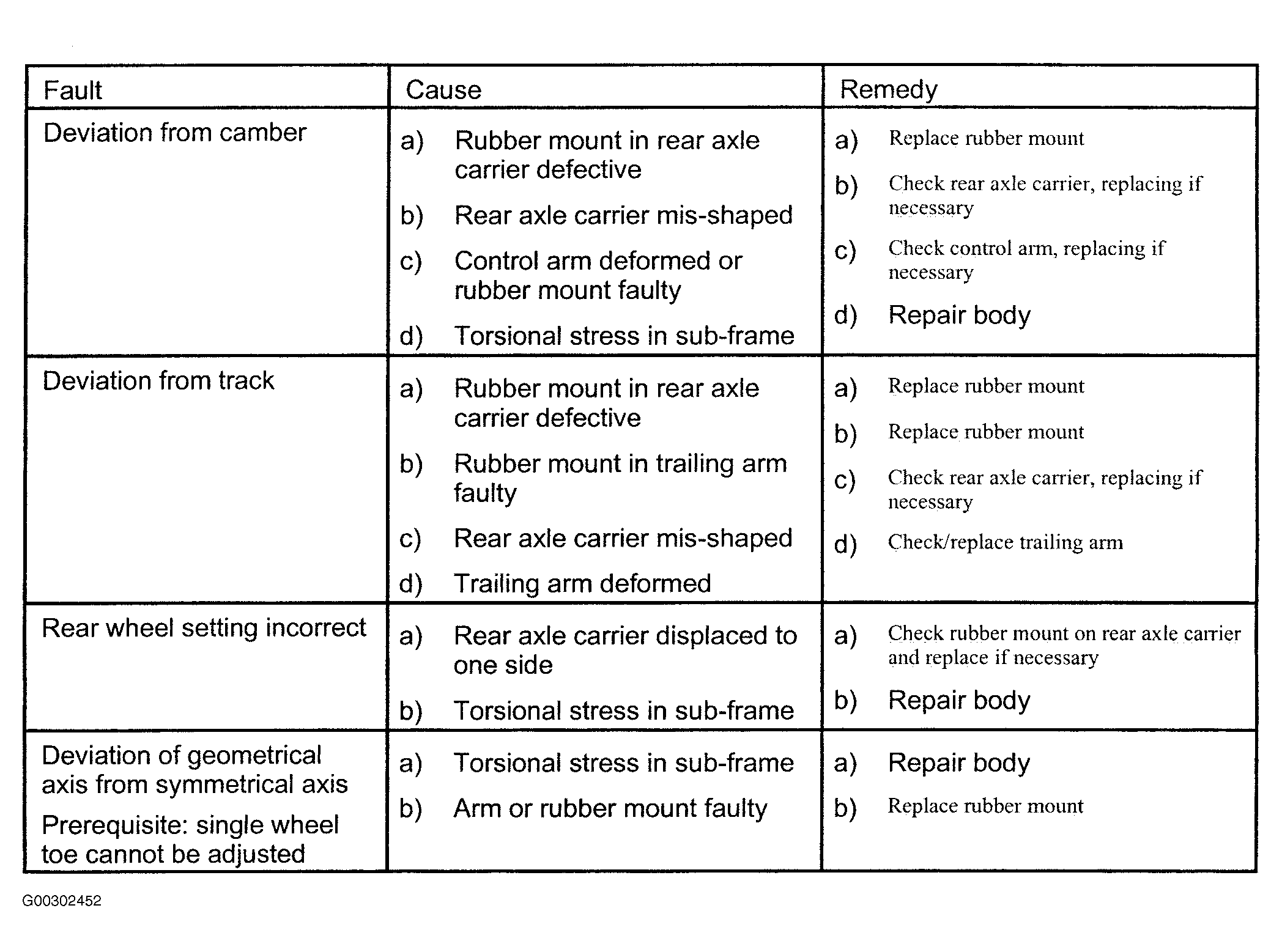

Fig 2: Trouble Shooting Rear Axle Alignment
G00302452Courtesy of BMW OF NORTH AMERICA, INC.
