Misfire Monitoring Structure

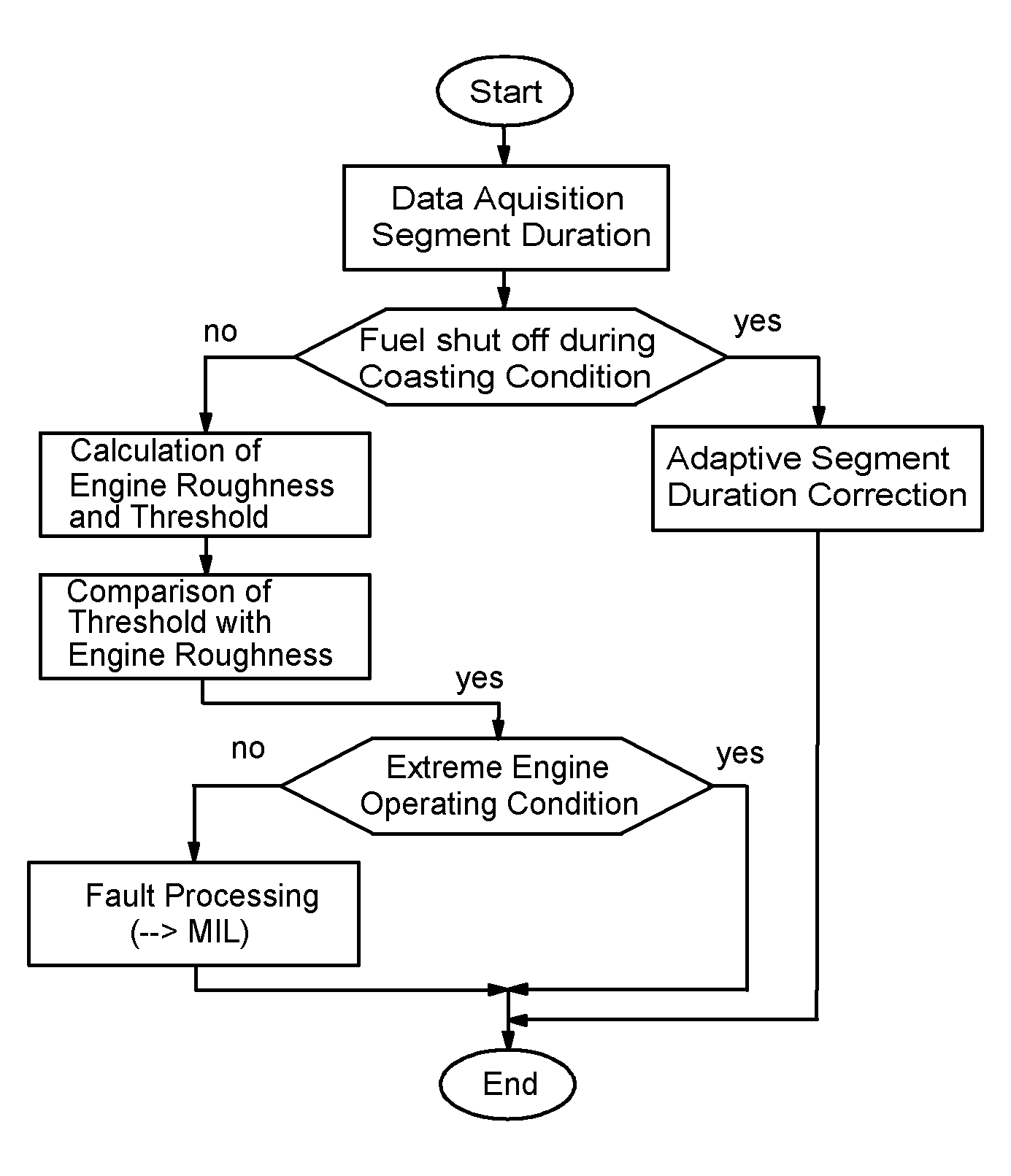

Fig 1: Misfire Monitoring Structure Flow Chart
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
