VTG Control Unit For xDrive: Design: Notes

The VTG control unit has 2 connections.

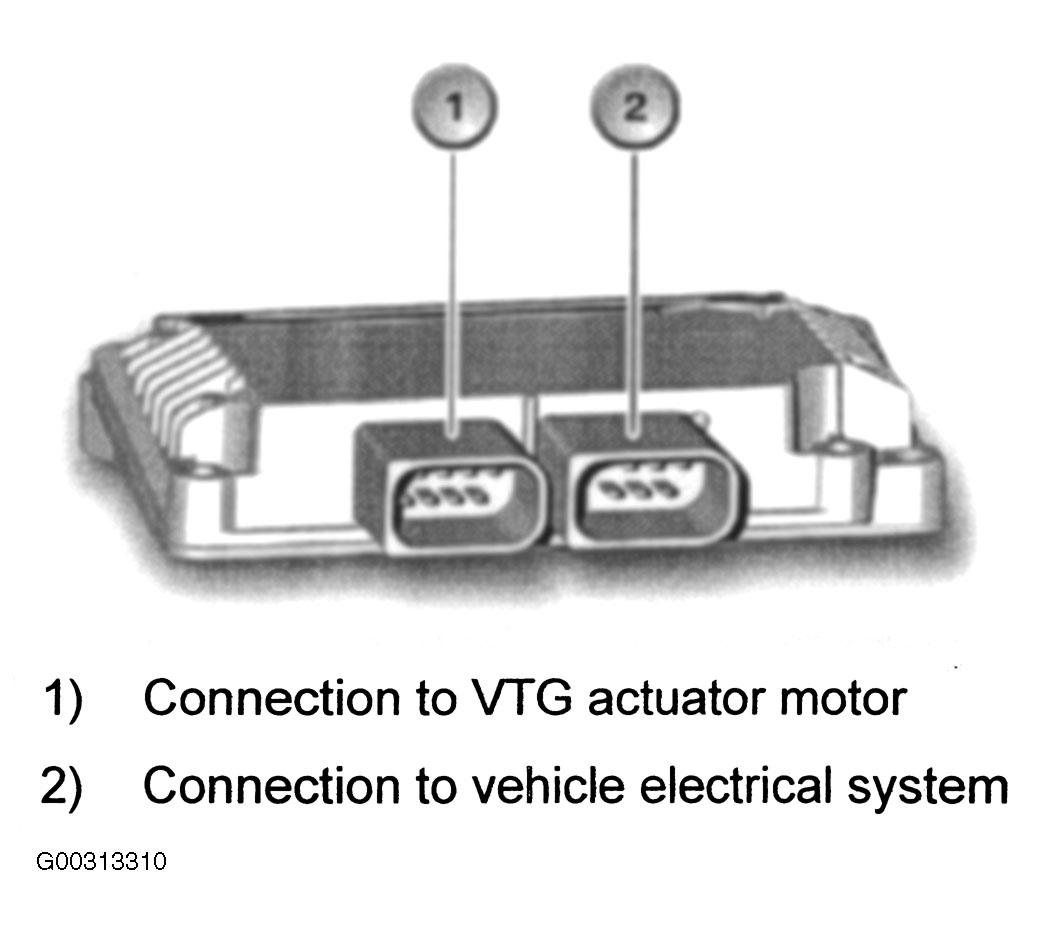

Fig 1: Identifying VTG Control Unit Connectors
G00313310Courtesy of BMW OF NORTH AMERICA, INC.
