Monitoring Structure Of Catalyst

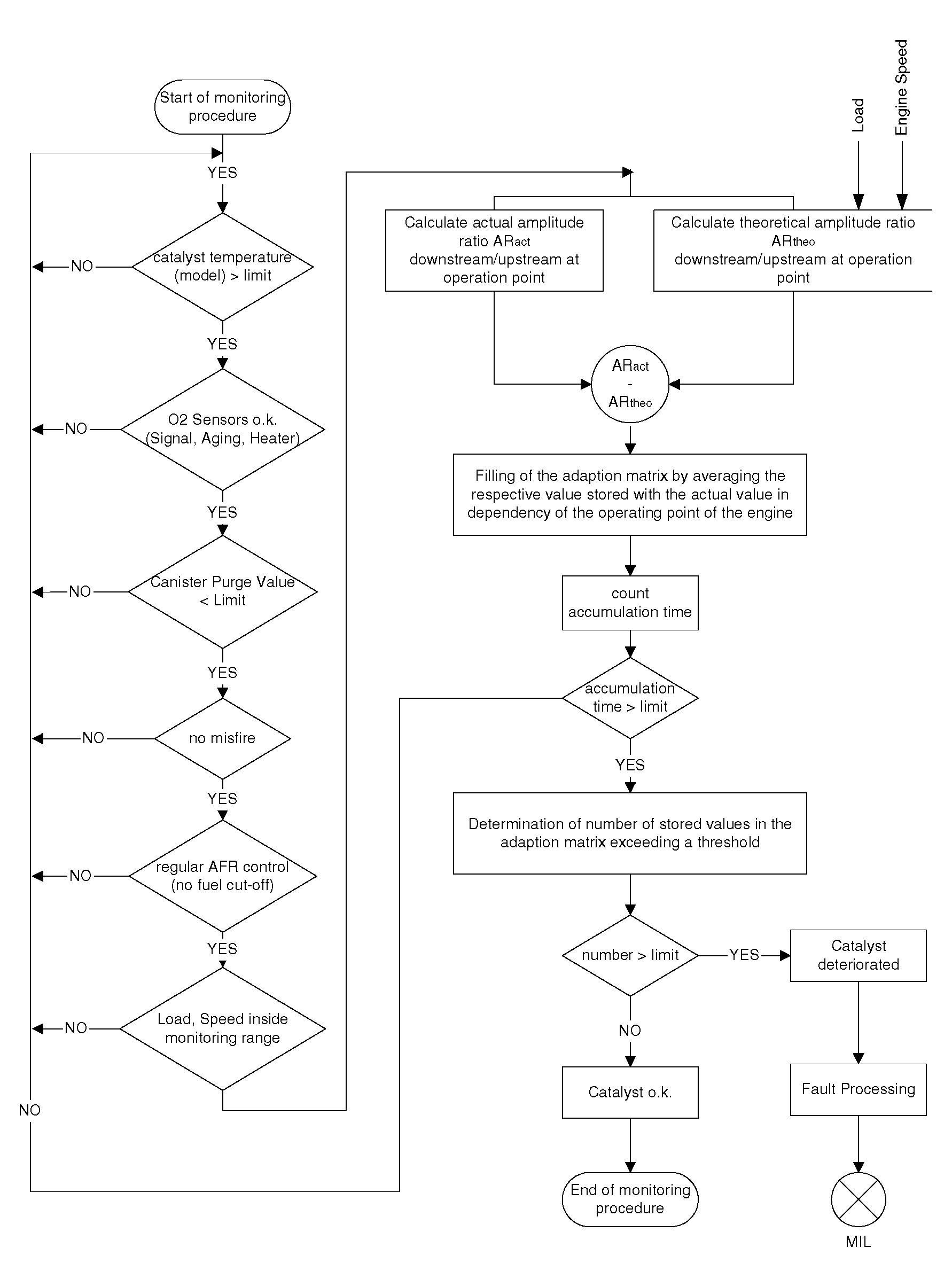

Fig 1: Flow Chart - Monitoring Structure Of Catalyst
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
