DME Control Module X60006 Connector End View

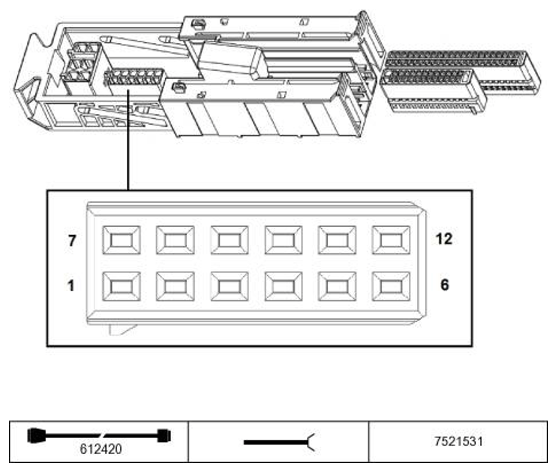

Fig 1: DME Control Module X60006 Connector End View
G11217870Courtesy of BMW OF NORTH AMERICA, INC.
Pin Assignments At Plug Connector X60006

Pin Type Description /Signal type Connection /Measuring notes
1 A Positive activation Injection system, cylinder 1
2 A Positive activation Injection system, cylinder 2
3 A Positive activation Injection system, cylinder 3
4 A Positive activation Injection system, cylinder 4
5 A Positive activation Injection system, cylinder 5
6 A Positive activation Injector, cylinder 6
7 A Negative activation Injection system, cylinder 1
8 A Negative activation Injection system, cylinder 2
9 A Negative activation Injection system, cylinder 3
10 A Negative activation Injection system, cylinder 4
11 A Negative activation Injection system, cylinder 5
12 A Negative activation Injector, cylinder 6
