41 00... Repair Solution For Straight Shank/Hexagon Rivet Nut

Protection measures!

• Wear safety goggles
• Wear protective gloves

1. Carefully spot-drill rivet head with a larger drill bit/countersink
   IMPORTANT: Avoid paintwork damage

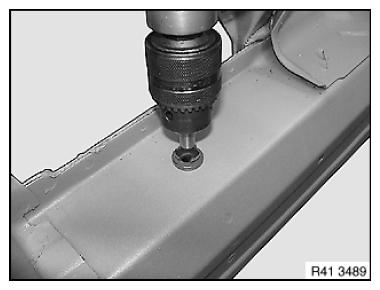

Fig 1: Spot-Drilling Rivet Head With Larger Drill Bit/Countersink
Courtesy of BMW OF NORTH AMERICA, INC.
2. Knock rivet head away with a chisel

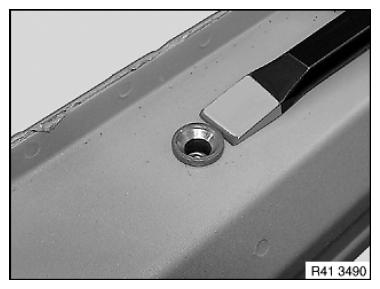

   Fig 2: Knocking Rivet Head Away Using Chisel

   Courtesy of BMW OF NORTH AMERICA, INC.
3. Punch through rivet shank into cavity, remove if necessary

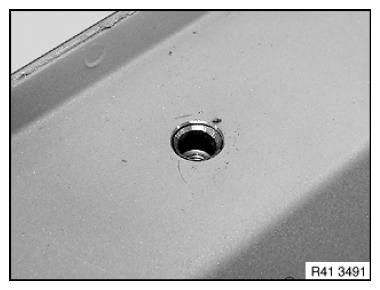

   Fig 3: Identifying Rivet Shank Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.
4. Clean component, eliminate paintwork damage if necessary

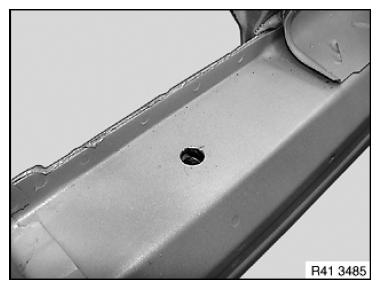

   Fig 4: Identifying Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.

   If the rivet shank can be removed:

   IMPORTANT: To avoid corrosion, stop chips/debris by means of cavity sealing.
   Follow NOTES ON CORROSION PROTECTION .
5. Preserving cavity

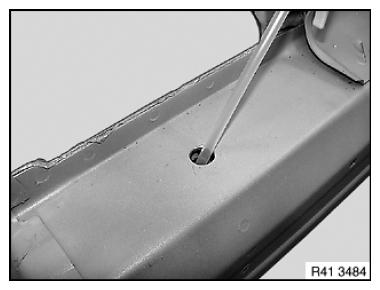

   Fig 5: Preserving Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.

   If the rivet shank cannot be removed:

   WARNING: Risk of injury!
   Observe NOTES ON CAVITY FOAM .
   IMPORTANT: To avoid corrosion and rattling noises, stop chips/debris and rivet nut shank with cavity foam.
   Remove foam remnants with isohexane (benzine).

1. 5. Stop rivet shank by means of specific foaming
2. 6. Set rivet nut with hand rivet gun
   NOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.
Fig 6: Preserving Cavity
Courtesy of BMW OF NORTH AMERICA, INC.

Hexagon/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308

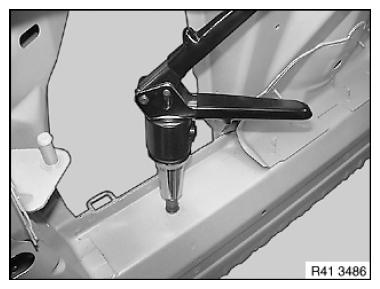

Fig 7: Setting Rivet Nut Using Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.

Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512

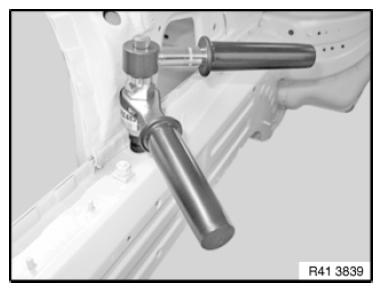

Fig 8: Setting Rivet Nut With Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.
