ACC System Overview

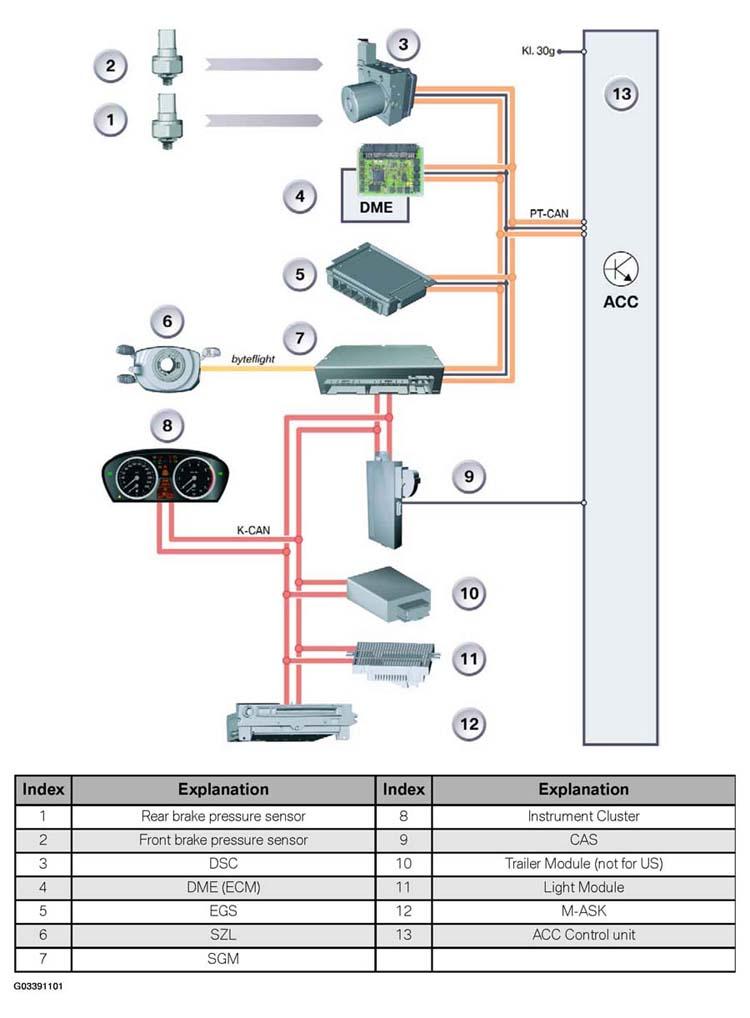

Fig 1: ACC System Overview Schematic
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
