CAS System Overview

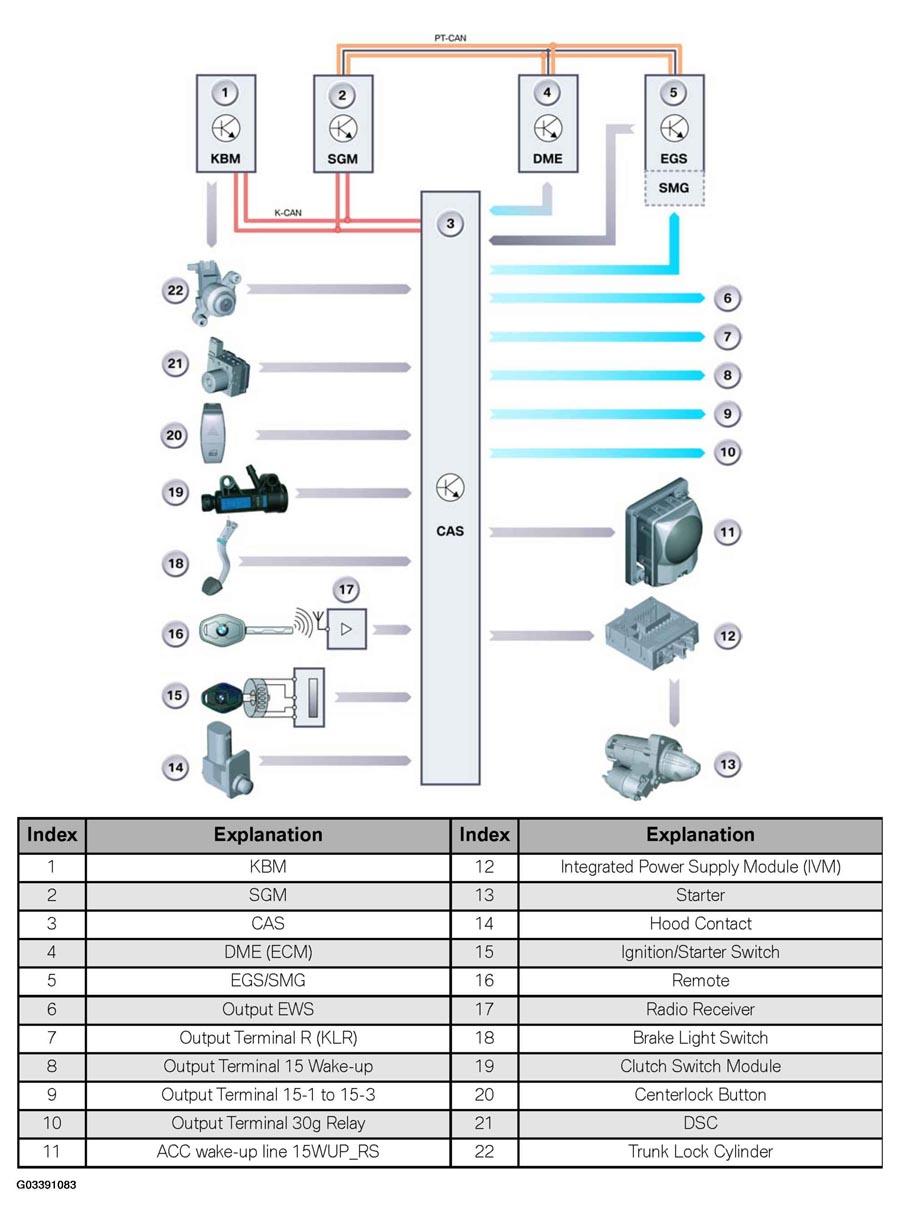

Fig 1: CAS System Overview Inputs/Outputs
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
