DWA Led

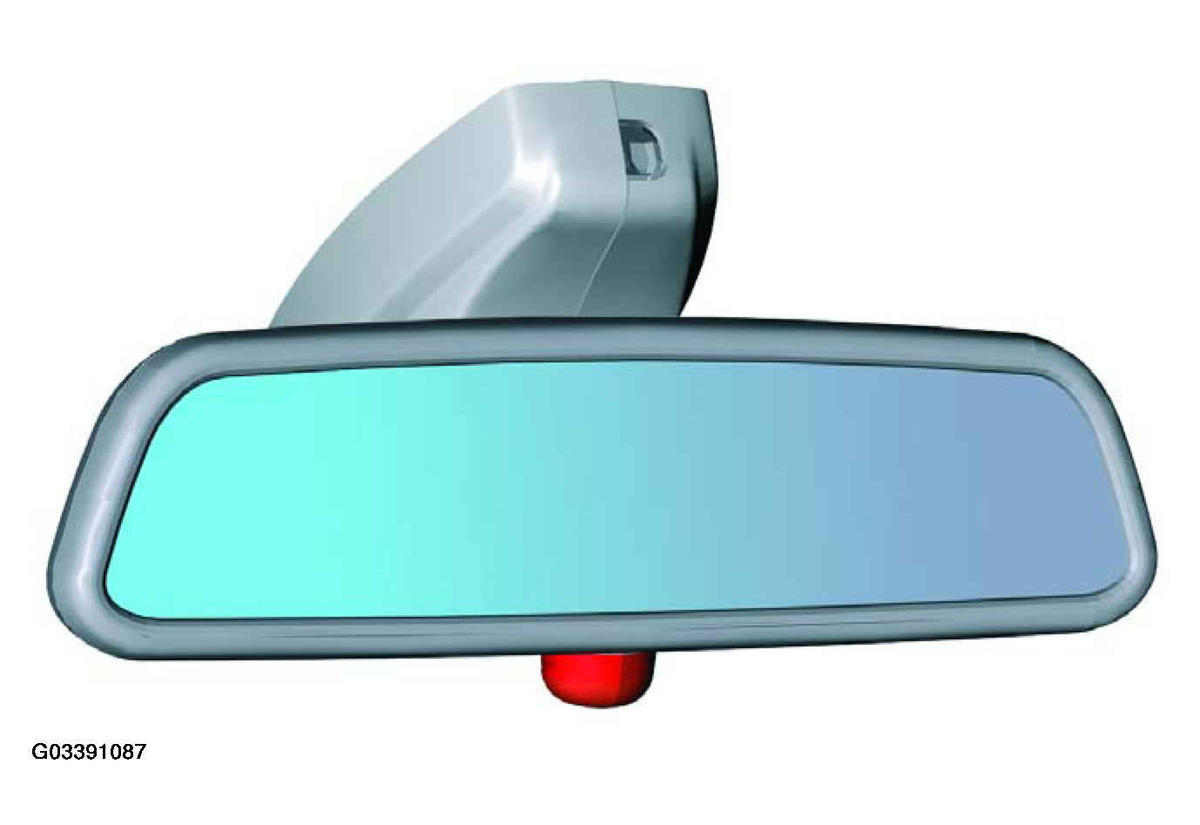

The DWA LED is located on the underside of the interior mirror and provides a visual indication of the status of the alarm system. The DWA LED is directly actuated by the DWA control unit via a wire. The following displays are possible:
- DWA LED off: DWA is disarmed.
- DWA LED flashes (frequency = 0.5 Hz): DWA is primed.
- DWA LED flashes with a frequency of 2 Hz for 10 seconds and then continues with a frequency of 0.5 Hz: DWA is primed but a door or hatch is not closed or a sensor is defective.
- DWA LED flashes with a frequency of 2 Hz for 5 minutes and then continues with a frequency of 0.5 Hz: alarm is triggered.
- DWA LED lights up for 2 seconds and then flashes with a frequency of 0.5 Hz: the ultrasonic interior motion sensor and the tilt alarm sensor are deactivated.
The DWA LED is on the bottom of the inside rearview mirror. The LED gives a visual indication of the status of the anti-theft alarm. It is directly actuated by the DWA control unit in the emergency power siren via a wire.
