Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

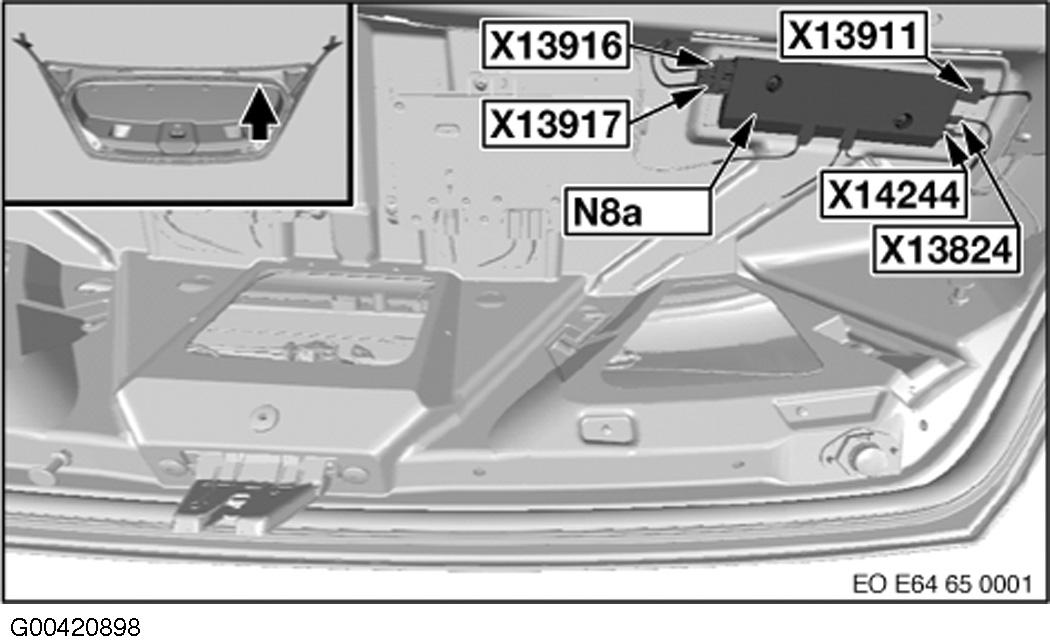

| Antenna Amplifier (Convertible) (N8) | On trunk lid. See Figure. |
| Antenna Amplifier (Sedan) (N8) | Right rear of roof. See Figure. |
| Anti-Theft Horn & Tilt Alarm Sensor (H1b) | Right rear wheelwell. See Figure. |

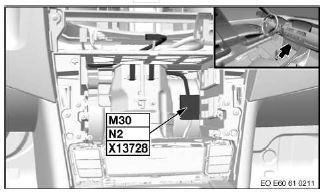

| Blower Output Stage Unit (N2) | Behind center of dash. See Figure. |
| Horn (High) (H3) | Right front wheelwell. See Figure. |
| Horn (Low) (H2) | Right front wheelwell. See Figure. |

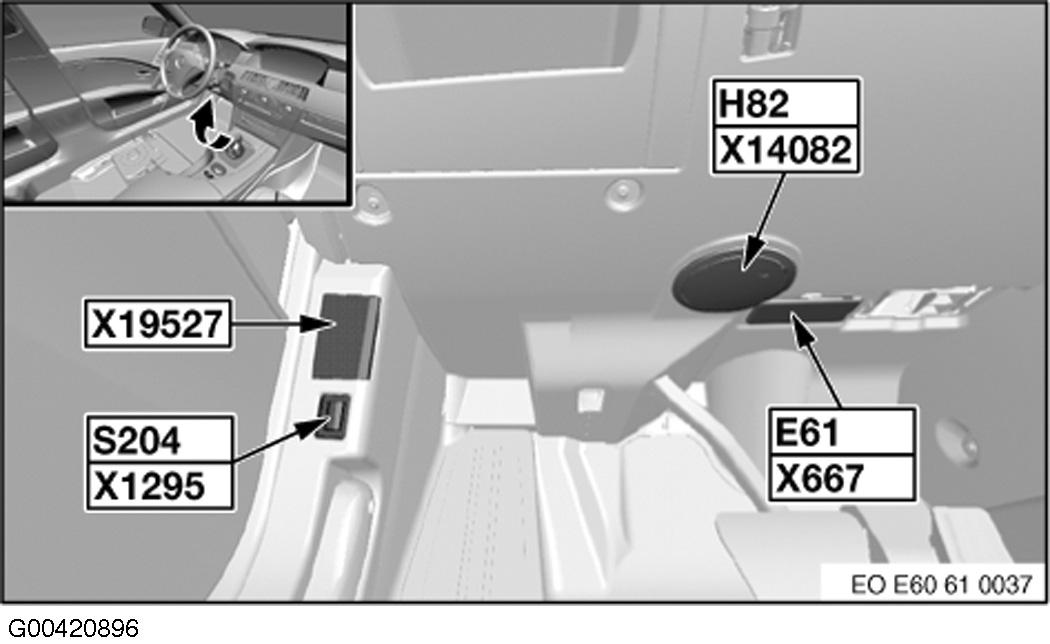

| OBDII Socket (X19527) | Near left kick panel. See Figure. |
