A/C Compressor

The A/C compressor in the E60 is identical to the clutchless design introduced on the E65/E66

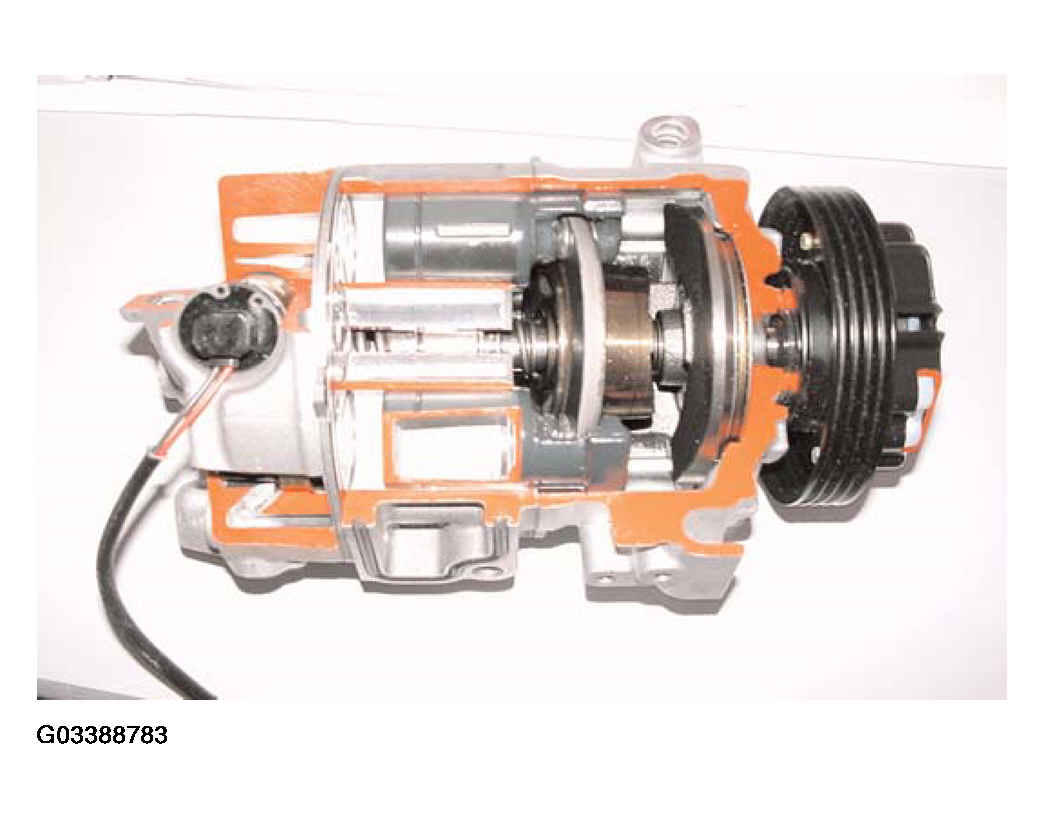

Fig 1: Identifying A/C Compressor
G03388783Courtesy of BMW OF NORTH AMERICA, INC.
