Functions Changed After Vehicle Programming (00 11 04 (111))

Publication date: 2006-03-01
Reference number: 00 11 04 (111)

FUNCTIONS CHANGED AFTER VEHICLE PROGRAMMING

TECHNICAL SERVICE BULLETIN

Reference Number(s): 00 11 04 (111), Date of Issue: March 2006

BMW:	E60, E61, E63, E64
GROUP:	00 - Maintenance and General Hints

SITUATION

Functions changed after vehicle programming

After a vehicle has been programmed, the customer may notice changes in certain functions. Changes in function depend on the current vehicle data status and the new data status.

PROCEDURE

Connect the vehicle to the BMW diagnosis system.
Read off the present vehicle data status as follows:
- Call up the "Progman" program.
- Select "Vehicle order" and confirm.
  The current vehicle data status is displayed.
- Make a note of this data status.
Locate the vehicle data status in the left-hand column of the table.
Click on the hotspot on this line in the right-hand column.
Print off the enclosure and attach to the job order.

If the target data status in the table does not correspond to the current Progman version in the workshop, you should still proceed as described above.

VEHICLE DATA STATUS/TARGET DATA STATUS

Vehicle data status	Target data status / Progman version
	E060-06-03-510 Progman V 21.0
E060-05-12-510	No change
E060-05-12-500	No change
E060-05-09-535	No change
E060-05-09-530	No change
E060-05-09-510	No change
E060-05-06-510	No change
E060-05-06-500	No change
E060-05-03-520	No change
E060-05-03-510	No change
E060-04-09-555	Enclosure F05
E060-04-09-504	Enclosure F05
E060-04-09-503	Enclosure F05
E060-04-06-500	Enclosure F04
E060-04-03-506	Enclosure F03
E060-04-03-505	Enclosure F03
E060-03-12-528	Enclosure F02
E060-03-12-527	Enclosure F02
E060-03-12-525	Enclosure F02
5.35	Enclosure F02
5.33	Enclosure F02
5.31	Enclosure F02
5.22	Enclosure F02
5.21	Enclosure F02
5.13	Enclosure F02
4.64	Enclosure F02
4.61	Enclosure F02
4.60	Enclosure F02
4.54	Enclosure F01

The Enclosures lead to a detailed description of the changes in function. These descriptions can be printed out and given to the customer.

Customers should be informed of any changes in function. Let them keep the printout as an enclosure to the Owner's Handbook.

ENCLOSURE F01

Function changes (50603510 V21.0 F01)

Programming the vehicle will produce the following changes in function. Please keep this document with the Owner's Handbook.

The following changes in function are described:

Air volume setting with automatic air-conditioning system automatic program
Automatic air-conditioning system automatic program intensity levels renamed with enhanced scope*
Elimination of "AUTO" selection in the automatic air-conditioning system control display with enhanced scope*
Head-up display*: Elimination of display when cruise control is deactivated*
Status information faded out when Control Display switched off: revised displays
BMW contact*: Revised menu guidance
"Professional" navigation system*: New menu in map view. New "perspective" map view.
BMW "Professional" radio*: Playback of compressed audio files
Service requirements: Modified display if service is not performed on time

AIR VOLUME SETTING WITH AUTOMATIC AIR-CONDITIONING SYSTEM AUTOMATIC PROGRAM

With immediate effect, the automatic air-conditioning system automatic program also assumes the task of controlling the air volume, not only the air distribution. The cooling function is automatically activated in the automatic program.

AUTOMATIC AIR-CONDITIONING SYSTEM AUTOMATIC PROGRAM INTENSITY LEVELS RENAMED WITH ENHANCED SCOPE*

Automatic air-conditioning system automatic program intensity levels have been renamed "high", "medium" and "low".

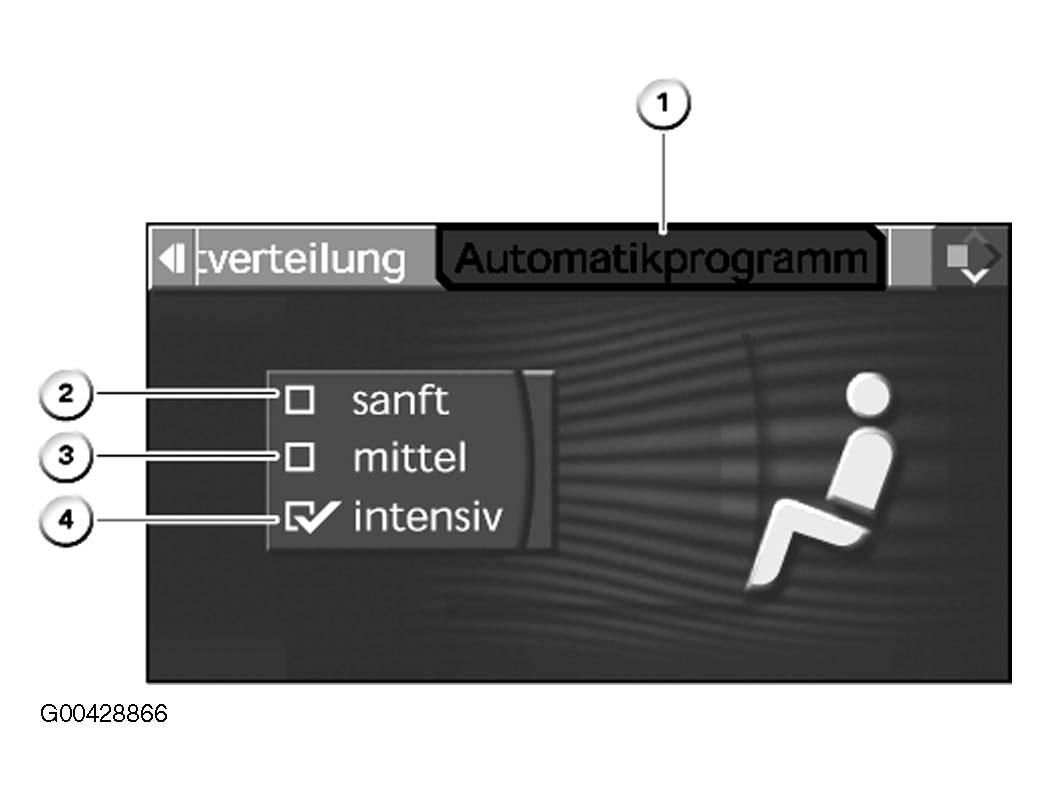

Fig 1: Automatic Program Intensity Levels

Item	Description
1	Automatic mode
2	Low
3	Medium
4	High

ELIMINATION OF "AUTO" SELECTION IN THE AUTOMATIC AIR-CONDITIONING SYSTEM CONTROL DISPLAY WITH ENHANCED SCOPE*

The "AUTO" selection in the "Air distribution" menu in the control display is eliminated. The automatic program is thus no longer available separately for driver and front passenger. The "AUTO" button on the center console controls the automatic program for both driver and front passenger together.

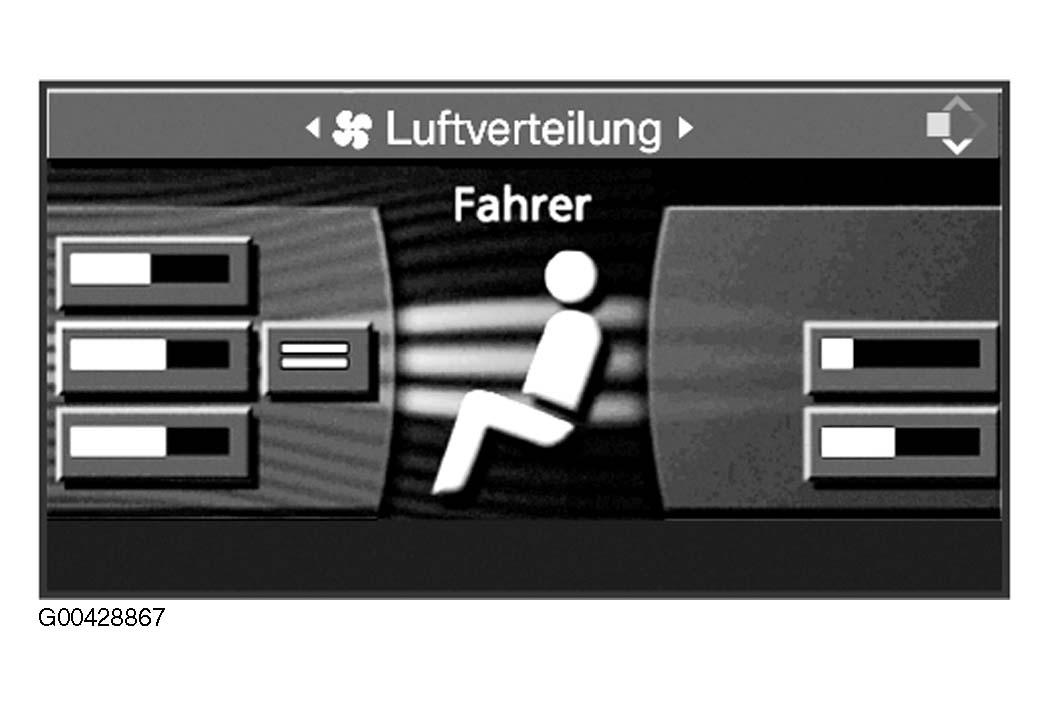

Fig 2: Air Distribution Menu

New display of "Air distribution" menu. The "AUTO" option in the lower part of the control display is eliminated.

Other function changes: The "Automatic program" submenu on the control display has been relocated. The submenu is accessed as follows:

Press the "MENU" button.
Move the controller to the left to call up "Air conditioner".
Select "Automatic" program.

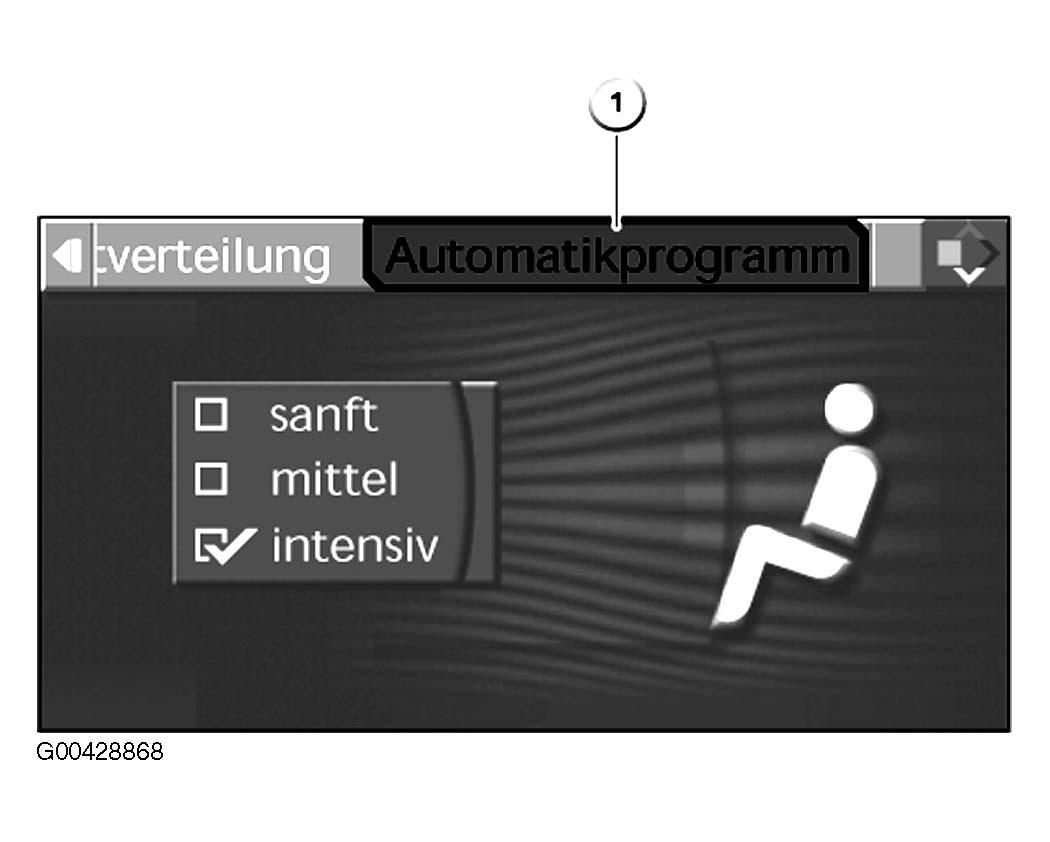

Fig 3: Automatic Program Submenu

Item	Description
1	Automatic program for driver and front passenger

HEAD-UP DISPLAY: ELIMINATION OF DISPLAY WHEN CRUISE CONTROL IS DEACTIVATED

To date, the desired speed has been displayed in the head-up display, even when cruise control is deactivated (orange symbol). This display no longer appears when the system is deactivated.

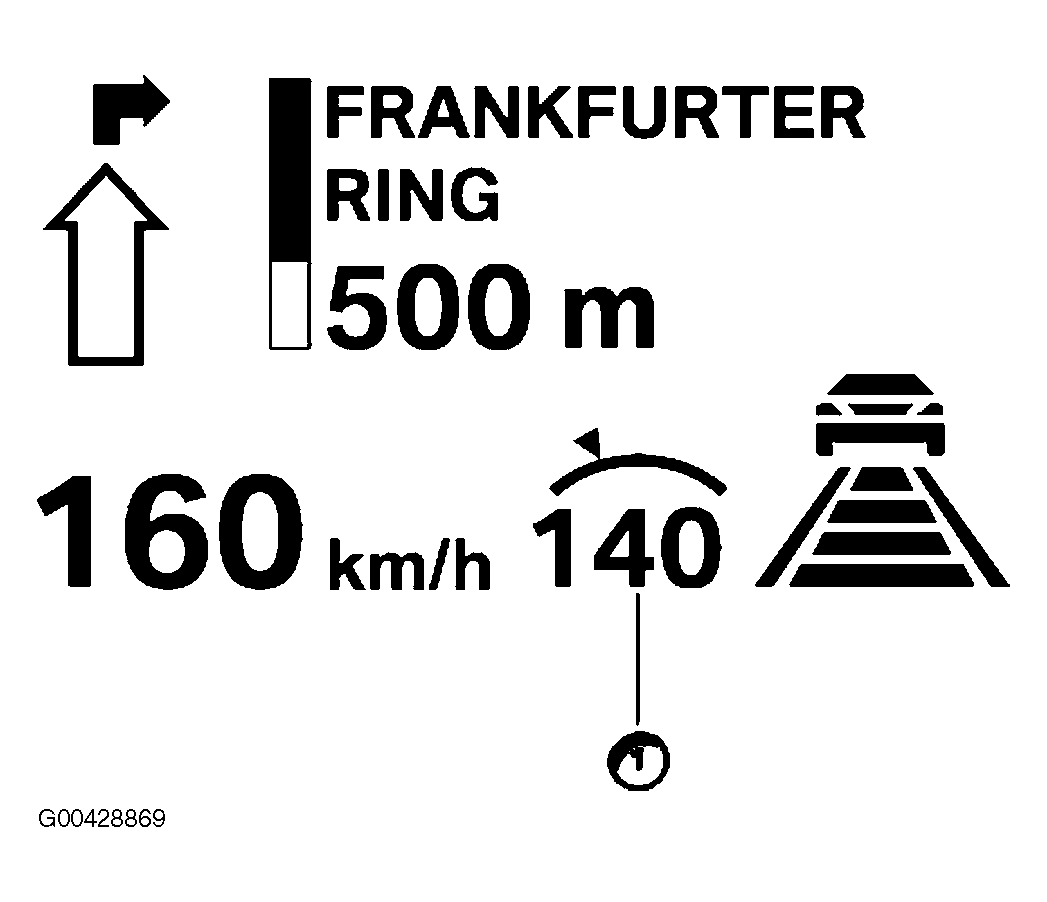

Fig 4: Head-Up Display

Item	Description
1	Cruise control display

STATUS INFORMATION FADED OUT WHEN CONTROL DISPLAY SWITCHED OFF: MODIFIED DISPLAYS

Status information on the control display is now faded out when the control display is switched off.

The status information displays have been modified.

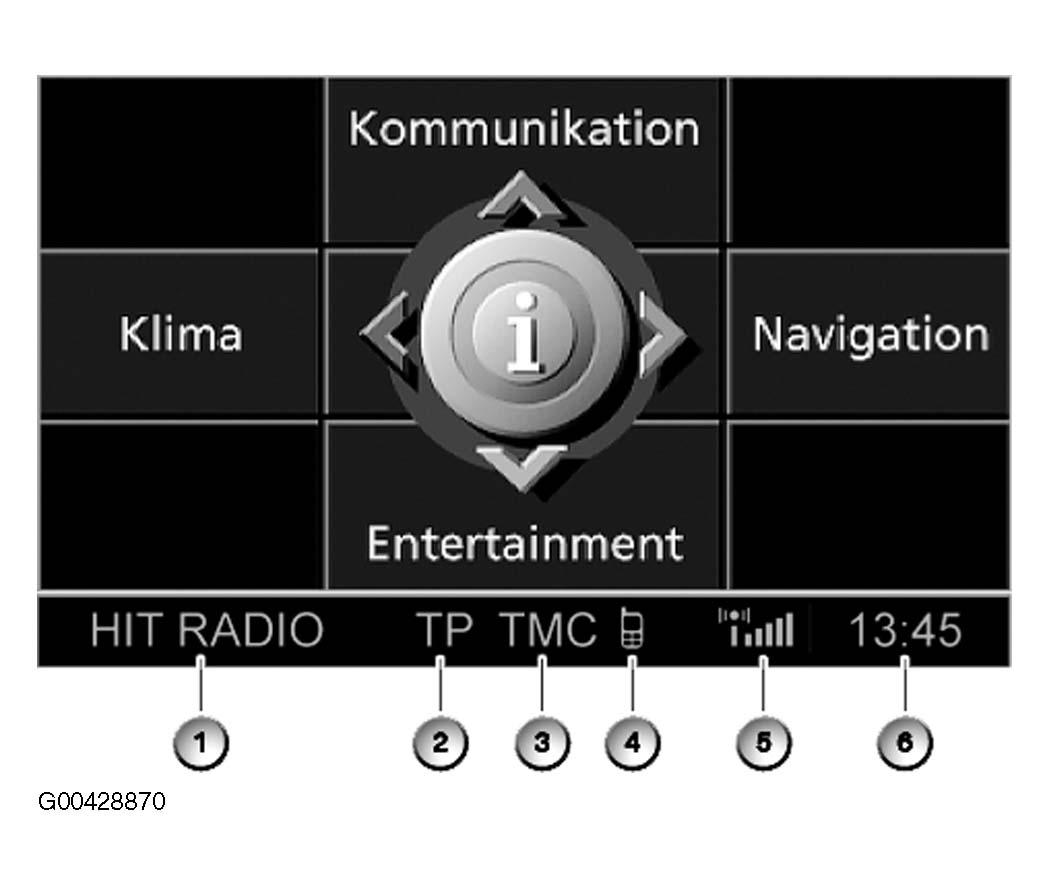

Fig 5: Control Display

Item	Description
1	Display for: Entertainment Telephone* in "Communication"
2	Traffic report display*
3	Traffic information display*
4	"Missed call" present
5	Telephone display (reception quality)
6	Time

BMW CONTACT*: REVISED MENU GUIDANCE

Establish contact to BMW Service or BMW Hotline through the option "BMW contact".

The submenu is accessed as follows:

Press the "MENU" button.
Move the controller to the front to call up "Communication".
Select "BMW contact" and press the controller. The menu item "BMW contact" is called up.
Select "BMW contact numbers" and press the controller.

Fig 6: BMW Contact Menu

Item	Description
1	BMW contact

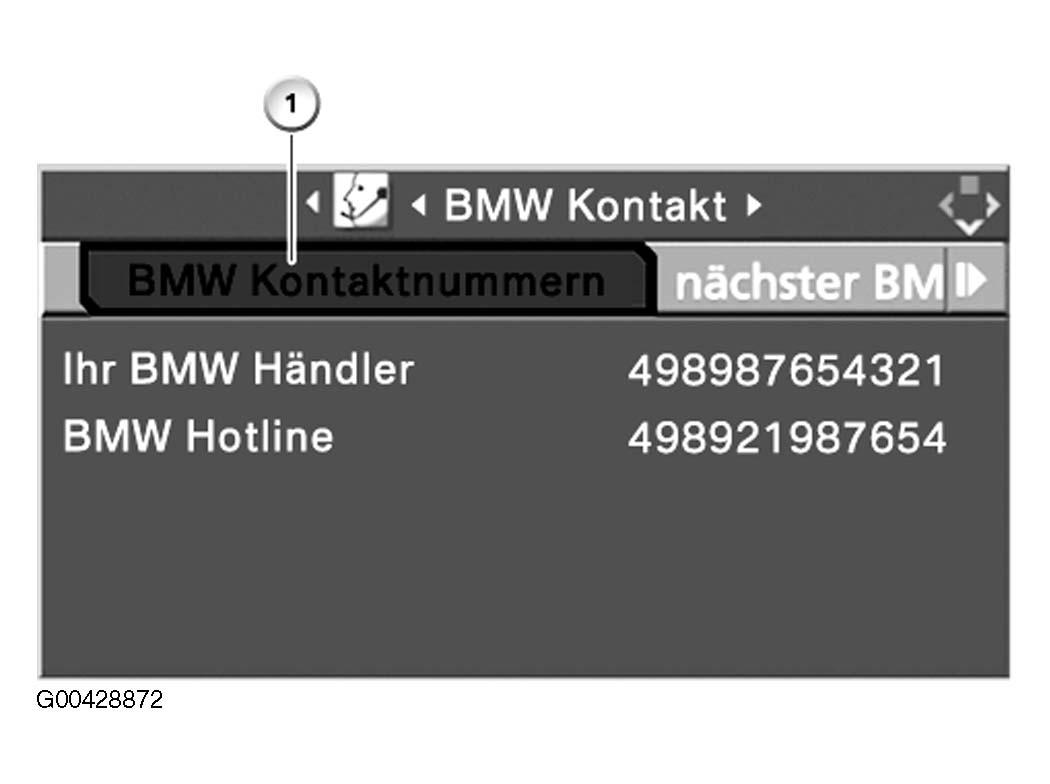

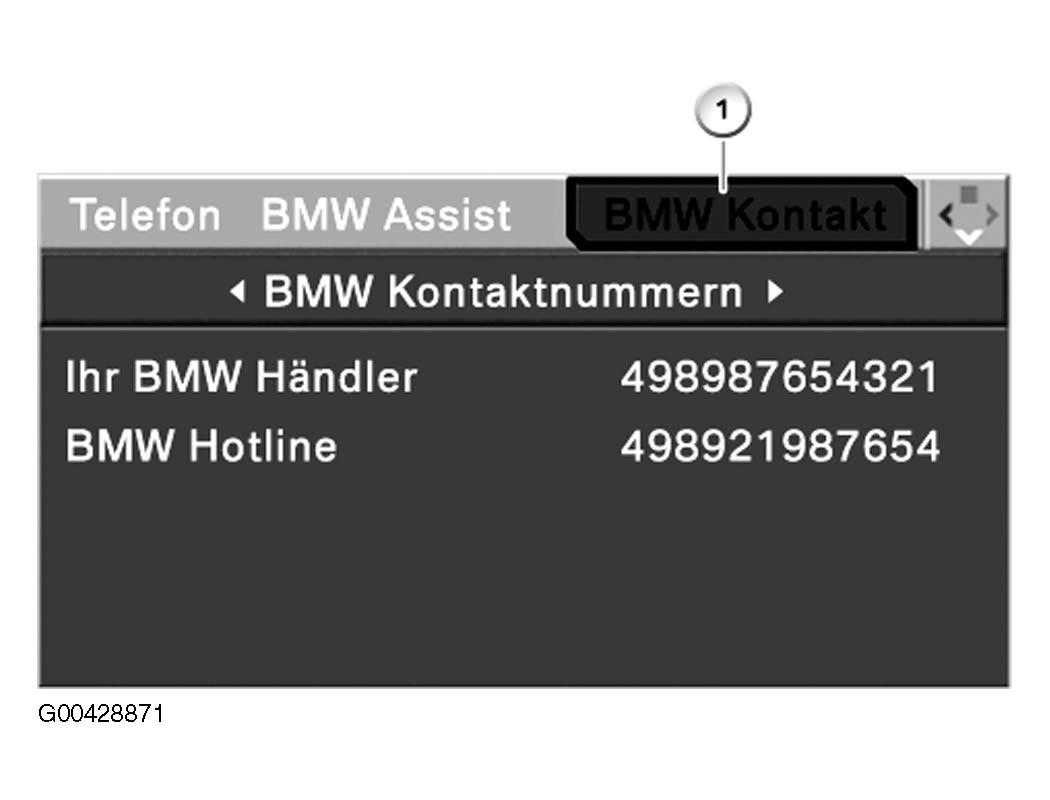

Fig 7: BMW Contact Submenu

Item	Description
1	BMW contact number

"PROFESSIONAL" NAVIGATION SYSTEM*: NEW MENU IN MAP VIEW. NEW "PERSPECTIVE" MAP VIEW.

The map view now has a menu with 7 panels on the left-hand side.

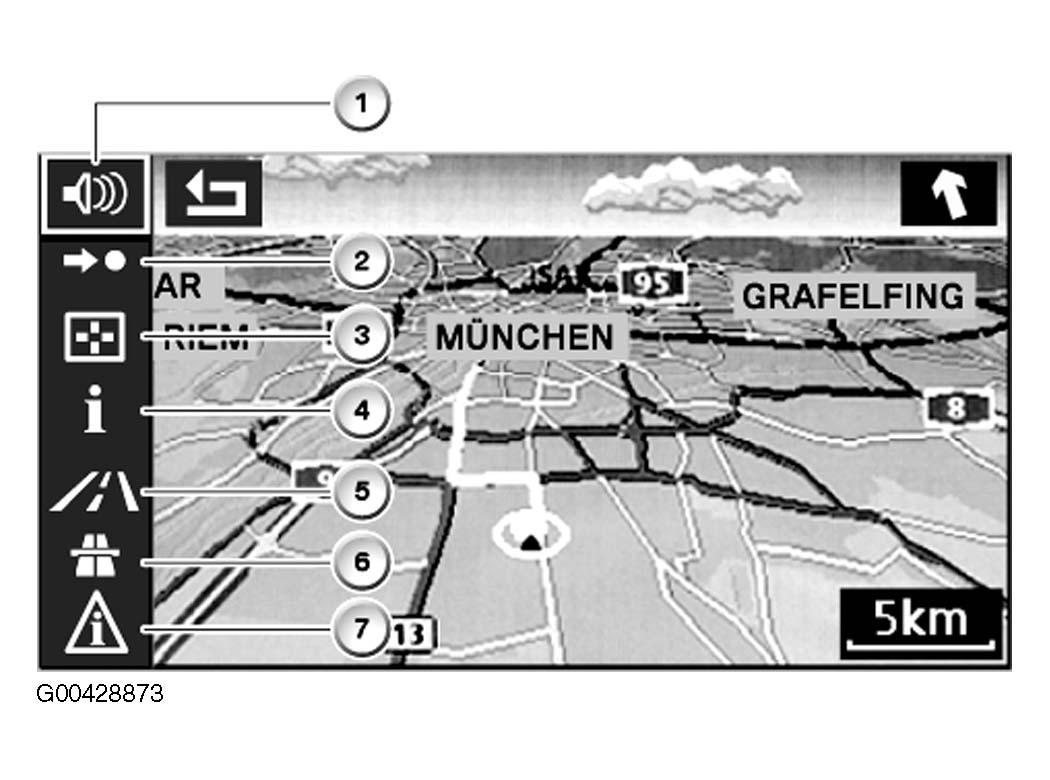

Fig 8: Navigation System Map View

Item	Description
1	Switch spoken instructions on/off
2	Start/finish route guidance
3	Select destination using map
4	Show information
5	Change map view: "Map north-oriented" "Map indicating direction of travel" "Perspective"
6	Change route criteria
7	Manually call up traffic information

The new "perspective" map view can also be selected as follows:

Select "Navigation" and press the controller.
Move the controller to the rear twice to move the marking to the fourth panel from the top. Turn the controller until the required map view is selected.

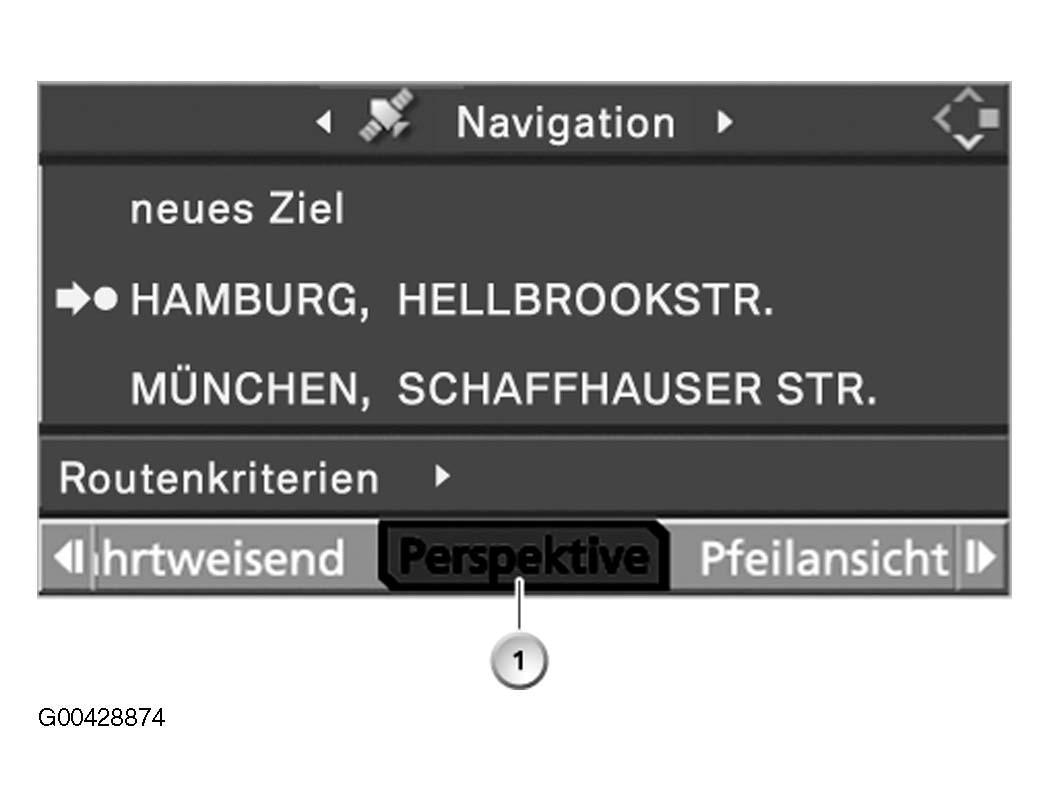

Fig 9: Navigation Menu

Item	Description
1	Perspective display

BMW "PROFESSIONAL" RADIO*: PLAYBACK OF COMPRESSED AUDIO FILES

If the vehicle is equipped with a separate drive, CDs with MP3 files (compressed audio files) can be played by the CD player.

SERVICE REQUIREMENTS: MODIFIED DISPLAY IF SERVICE IS NOT PERFORMED ON TIME

The display now includes the distance driven since the service was due.

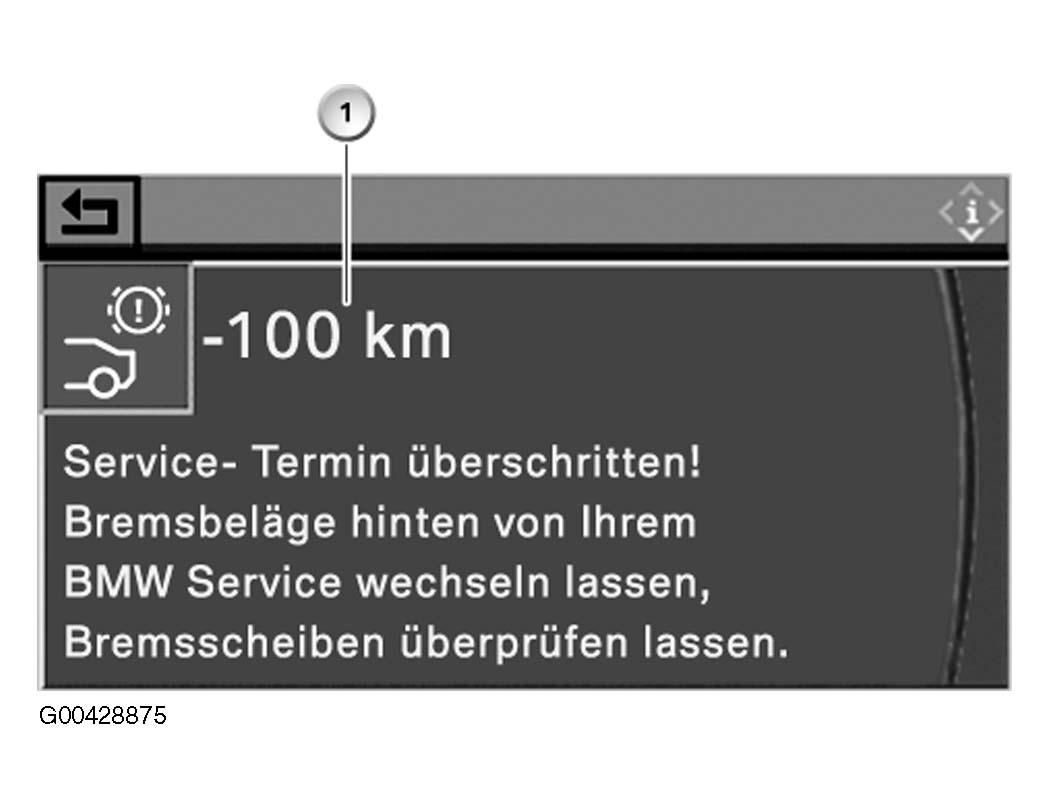

Fig 10: Service Requirements Display

Item	Description
1	Modified display if service is not performed on time

*indicates special or national-market specifications or special equipment.

ENCLOSURE F02

Function changes (50603510 V21.0 F02)

Programming the vehicle will produce the following changes in function. Please keep this document with the Owner's Handbook.

The following changes in function are described:

Air volume setting with automatic air-conditioning system automatic program
Elimination of AUTO selection in the automatic air-conditioning system control display with enhanced scope.*
Head-up display*: Elimination of display when cruise control is deactivated*
Status information faded out when control display switched off. Modified displays
BMW contact*: Revised menu guidance
"Professional" navigation system*: New menu in map view. New "perspective" map view.
BMW "Professional" radio*: Playback of compressed audio files
Service requirements: Modified display if service is not performed on time

AIR VOLUME SETTING WITH AUTOMATIC AIR-CONDITIONING SYSTEM AUTOMATIC PROGRAM

ELIMINATION OF "AUTO" SELECTION IN THE AUTOMATIC AIR-CONDITIONING SYSTEM CONTROL DISPLAY WITH ENHANCED SCOPE*

Fig 11: Air Distribution Menu

New display of "Air distribution" menu. The "AUTO" option in the lower part of the control display is eliminated.

Other function changes: The "Automatic program" submenu on the control display has been relocated. The submenu is accessed as follows:

Press the "MENU" button.
Move the controller to the left to call up "Air conditioner".
Select "Automatic" program.

Fig 12: Automatic Program Submenu

Item	Description
1	Automatic program for driver and front passenger

HEAD-UP DISPLAY: ELIMINATION OF DISPLAY WHEN CRUISE CONTROL IS DEACTIVATED

To date, the desired speed has been displayed in the head-up display, even when cruise control is deactivated (orange symbol). This display no longer appears when the system is deactivated.

Fig 13: Head-Up Display

Item	Description
1	Cruise control display

STATUS INFORMATION FADED OUT WHEN CONTROL DISPLAY SWITCHED OFF: MODIFIED DISPLAYS

Status information on the control display is now faded out when the control display is switched off.

The status information displays have been modified.

Fig 14: Control Display

Item	Description
1	Display for: Entertainment Telephone* in "Communication"
2	Traffic report display*
3	Traffic information display*
4	"Missed call" present
5	Telephone display (reception quality)
6	Time

BMW CONTACT*: REVISED MENU GUIDANCE

Establish contact to BMW Service or BMW Hotline through the option "BMW contact".

The submenu can be called up as follows:

Press the "MENU" button.
Move the controller to the front to call up "Communication".
Select "BMW contact" and press the controller. The menu item "BMW contact" is called up.
Select "BMW contact numbers" and press the controller.

Fig 15: BMW Contact Menu

Item	Description
1	BMW contact

Fig 16: BMW Contact Submenu

Item	Description
1	BMW contact number

"PROFESSIONAL" NAVIGATION SYSTEM*: NEW MENU IN MAP VIEW. NEW "PERSPECTIVE" MAP VIEW

The map view now has a menu with 7 panels on the left-hand side.

Fig 17: Navigation System Map View

Item	Description
1	Switch spoken instructions on/off
2	Start/finish route guidance
3	Select destination using map
4	Show information
5	Change map view: "Map north-oriented" "Map indicating direction of travel" "Perspective"
6	Change route criteria
7	Manually call up traffic information

The new "perspective" map view can also be selected as follows:

Select "Navigation" and press the controller.
Move the controller to the rear twice to move the marking to the fourth panel from the top. Turn the controller until the required map view is selected.

Fig 18: Navigation Menu

Item	Description
1	Perspective display

BMW "PROFESSIONAL" RADIO*: PLAYBACK OF COMPRESSED AUDIO FILES

If the vehicle is equipped with a separate drive, CDs with MP3 files (compressed audio files) can be played by the CD player.

SERVICE REQUIREMENTS: MODIFIED DISPLAY IF SERVICE IS NOT PERFORMED ON TIME

The display now includes the distance driven since the service was due.

Fig 19: Service Requirements Display

Item	Description
1	Modified display if service is not performed on time

*indicates special or national-market specifications or special equipment.

ENCLOSURE F03

Function changes (50603510 V21.0 F03)

Programming the vehicle will produce the following changes in function. Please keep this document with the Owner's Handbook.

The following changes in function are described:

Elimination of "AUTO" selection in the automatic air-conditioning system control display with enhanced scope*.
Head-up display*: Elimination of display when cruise control is deactivated*
Status information faded out when control display switched off: Modified displays
BMW contact*: Revised menu guidance
"Professional" navigation system*: New menu in map view. New "perspective" map view.
BMW "Professional" radio*: Playback of compressed audio files
Service requirements: Modified display if service is not performed on time

ELIMINATION OF "AUTO" SELECTION IN THE AUTOMATIC AIR-CONDITIONING SYSTEM CONTROL DISPLAY WITH ENHANCED SCOPE*

Fig 20: Air Distribution Menu

New display of "Air distribution" menu. The "AUTO" option in the lower part of the control display is eliminated.

Other function changes: The "Automatic program" submenu on the control display has been relocated. The submenu is accessed as follows:

Press the "MENU" button.
Move the controller to the left to call up "Air conditioner".
Select "Automatic" program.

Fig 21: Automatic Program Submenu

Item	Description
1	Automatic program for driver and front passenger

HEAD-UP DISPLAY: ELIMINATION OF DISPLAY WHEN CRUISE CONTROL IS DEACTIVATED

To date, the desired speed has been displayed in the head-up display, even when cruise control is deactivated (orange symbol). This display no longer appears when the system is deactivated.

Fig 22: Head-Up Display

Item	Description
1	Cruise control display

STATUS INFORMATION FADED OUT WHEN CONTROL DISPLAY SWITCHED OFF: MODIFIED DISPLAYS

Status information on the control display is now faded out when the control display is switched off.

The status information displays have been modified.

Fig 23: Control Display

Item	Description
1	Display for: Entertainment Telephone* in "Communication"
2	Traffic report display*
3	Traffic information display*
4	"Missed call" present
5	Telephone display (reception quality)
6	Time

BMW CONTACT*: REVISED MENU GUIDANCE

Establish contact to BMW Service or BMW Hotline through the option "BMW contact".

The submenu can be called up as follows:

Press the "MENU" button.
Move the controller to the front to call up "Communication".
Select "BMW contact" and press the controller. The menu item "BMW contact" is called up.
Select "BMW contact numbers" and press the controller.

Fig 24: BMW Contact Menu

Item	Description
1	BMW contact

Fig 25: BMW Contact Submenu

Item	Description
1	BMW contact number

"PROFESSIONAL" NAVIGATION SYSTEM*: NEW MENU IN MAP VIEW. NEW "PERSPECTIVE" MAP VIEW

The map view now has a menu with 7 panels on the left-hand side.

Fig 26: Navigation System Map View

Item	Description
1	Switch spoken instructions on/off
2	Start/finish route guidance
3	Select destination using map
4	Show information
5	Change map view: "Map north-oriented" "Map indicating direction of travel" "Perspective"
6	Change route criteria
7	Manually call up traffic information

The new "perspective" map view can also be selected as follows:

Select "Navigation" and press the controller.
Move the controller to the rear twice to move the marking to the fourth panel from the top. Turn the controller until the required map view is selected.

Fig 27: Navigation Menu

Item	Description
1	Perspective display

BMW "PROFESSIONAL" RADIO*: PLAYBACK OF COMPRESSED AUDIO FILES

If the vehicle is equipped with a separate drive, CDs with MP3 files (compressed audio files) can be played by the CD player.

SERVICE REQUIREMENTS: MODIFIED DISPLAY IF SERVICE IS NOT PERFORMED ON TIME

The display now includes the distance driven since the service was due.

Fig 28: Service Requirements Display

Item	Description
1	Modified display if service is not performed on time

*indicates special or national-market specifications or special equipment.

ENCLOSURE F04

Function changes (50603510 V21.0 F04)

Programming the vehicle will produce the following changes in function. Please keep this document with the Owner's Handbook.

The following changes in function are described:

Head-up display*: Elimination of display when cruise control is deactivated*
Status information faded out when control display switched off: Modified displays
BMW contact*: Revised menu guidance
"Professional" navigation system*: New menu in map view. New "perspective" map view.
BMW "Professional" radio*: Playback of compressed audio files
Service requirements: Modified display if service is not performed on time

HEAD-UP DISPLAY: ELIMINATION OF DISPLAY WHEN CRUISE CONTROL IS DEACTIVATED

To date, the desired speed has been displayed in the head-up display, even when cruise control is deactivated (orange symbol). This display no longer appears when the system is deactivated.

Fig 29: Head-Up Display

Item	Description
1	Cruise control display

STATUS INFORMATION FADED OUT WHEN CONTROL DISPLAY SWITCHED OFF: MODIFIED DISPLAYS

Status information on the control display is now faded out when the control display is switched off.

The status information displays have been modified.

Fig 30: Control Display

Item	Description
1	Display for: Entertainment Telephone* in "Communication"
2	Traffic report display*
3	Traffic information display*
4	"Missed call" present
5	Telephone display (reception quality)
6	Time

BMW CONTACT*: REVISED MENU GUIDANCE

Establish contact to BMW Service or BMW Hotline through the option "BMW contact".

The submenu can be called up as follows:

Press the "MENU" button.
Move the controller to the front to call up "Communication".
Select "BMW contact" and press the controller. The menu item "BMW contact" is called up.
Select "BMW contact numbers" and press the controller.

Fig 31: BMW Contact Menu

Item	Description
1	BMW contact

Fig 32: BMW Contact Submenu

Item	Description
1	BMW contact number

"PROFESSIONAL" NAVIGATION SYSTEM*: NEW MENU IN MAP VIEW. NEW "PERSPECTIVE" MAP VIEW

The map view now has a menu with 7 panels on the left-hand side.

Fig 33: Navigation System Map View

Item	Description
1	Switch spoken instructions on/off
2	Start/finish route guidance
3	Select destination using map
4	Show information
5	Change map view: "Map north-oriented" "Map indicating direction of travel" "Perspective"
6	Change route criteria
7	Manually call up traffic information

The new "perspective" map view can also be selected as follows:

Select "Navigation" and press the controller.
Move the controller to the rear twice to move the marking to the fourth panel from the top. Turn the controller until the required map view is selected.

Fig 34: Navigation Menu

Item	Description
1	Perspective display

BMW "PROFESSIONAL" RADIO: PLAYBACK OF COMPRESSED AUDIO FILES

If the vehicle is equipped with a separate drive, CDs with MP3 files (compressed audio files) can be played by the CD player.

SERVICE REQUIREMENTS: MODIFIED DISPLAY IF SERVICE IS NOT PERFORMED ON TIME

The display now includes the distance driven since the service was due.

Fig 35: Service Requirements Display

Item	Description
1	Modified display if service is not performed on time

*indicates special or national-market specifications or special equipment.

ENCLOSURE F05

Function changes (50603510 V21.0 F05)

Programming the vehicle will produce the following changes in function. Please keep this document with the Owner's Handbook.

The following changes in function are described:

Status information faded out when control display switched off: Modified displays
BMW contact*: Revised menu guidance
"Professional" navigation system*: New menu in map view. New "perspective" map view.
BMW "Professional" radio*: Playback of compressed audio files
Service requirements: Modified display if service is not performed on time

STATUS INFORMATION FADED OUT WHEN CONTROL DISPLAY SWITCHED OFF: MODIFIED DISPLAYS

Status information on the control display is now faded out when the control display is switched off.

The status information displays have been modified.

Fig 36: Control Display

Item	Description
1	Display for: Entertainment Telephone* in "Communication"
2	Traffic report display*
3	Traffic information display*
4	"Missed call" present
5	Telephone display (reception quality)
6	Time

BMW CONTACT*: REVISED MENU GUIDANCE

Establish contact to BMW Service or BMW Hotline through the option "BMW contact".

The submenu can be called up as follows:

Press the MENU button.
Move the controller to the front to call up "Communication".
Select "BMW contact" and press the controller. The menu item "BMW contact" is called up.
Select "BMW contact numbers" and press the controller.

Fig 37: BMW Contact Menu

Item	Description
1	BMW contact

Fig 38: BMW Contact Submenu

Item	Description
1	BMW contact number

"PROFESSIONAL" NAVIGATION SYSTEM*: NEW MENU IN MAP VIEW. NEW "PERSPECTIVE" MAP VIEW

The map view now has a menu with 7 panels on the left-hand side.

Fig 39: Navigation System Map View

Item	Description
1	Switch spoken instructions on/off
2	Start/finish route guidance
3	Select destination using map
4	Show information
5	Change map view: "Map north-oriented" "Map indicating direction of travel" "Perspective"
6	Change route criteria
7	Manually call up traffic information

The new "perspective" map view can also be selected as follows:

Select "Navigation" and press the controller.
Move the controller to the rear twice to move the marking to the fourth panel from the top. Turn the controller until the required map view is selected.

Fig 40: Navigation Menu

Item	Description
1	Perspective display

BMW "PROFESSIONAL" RADIO*: PLAYBACK OF COMPRESSED AUDIO FILES

If the vehicle is equipped with a separate drive, CDs with MP3 files (compressed audio files) can be played by the CD player.

SERVICE REQUIREMENTS: MODIFIED DISPLAY IF SERVICE IS NOT PERFORMED ON TIME

The display now includes the distance driven since the service was due.

Fig 41: Service Requirements Display

Item	Description
1	Modified display if service is not performed on time

*indicates special or national-market specifications or special equipment.

Functions Changed After Vehicle Programming (00 11 04 (111))
