Telephone System Schematic

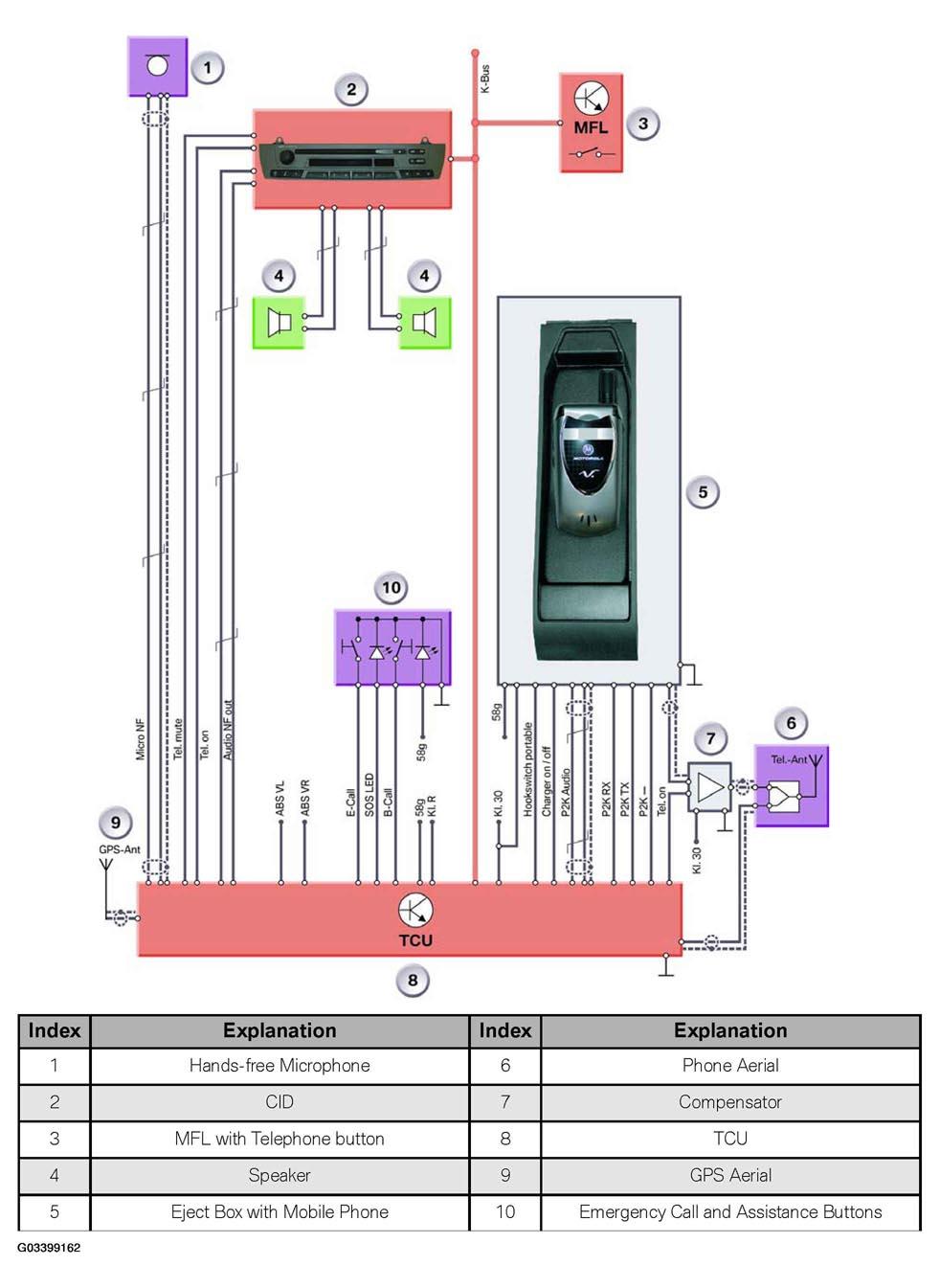

Fig 1: Telephone System Schematic
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
