Service Action 489 - Programming Control Units - Transmission Control (24 02 07)
Publication date: 2007-03-23Reference number: 24 02 07
SERVICE ACTION 489 - PROGRAMMING CONTROL UNITS - TRANSMISSION CONTROL
TECHNICAL SERVICE BULLETIN
| BMW: | X5 4.8i and X5 3.0si from SOP to 12/22/2006 |
| GROUP: | 24 - Automatic Transmission |
PERFORM THE PROCEDURE OUTLINED IN THIS SERVICE INFORMATION ON ALL AFFECTED VEHICLES BEFORE CUSTOMER DELIVERY OR NEXT TIME THEY ARE IN THE SHOP FOR MAINTENANCE OR REPAIRS.
SUBJECT
Service Action: Programming Control Units - Transmission Control
SITUATION
A warning gong will sound or a warning is displayed in the instrument cluster if the driver's door is opened with a drive position selected.
If the driver were to leave the vehicle with the engine running and drive position "D" or "R" selected, the automatic transmission would automatically shift into park position "P". If the vehicle is not already secured by the parking brake in this situation, there is a possibility that the vehicle could move forward or backward a few feet until the parking lock engages.
This Service Action will shorten the response time of this function.

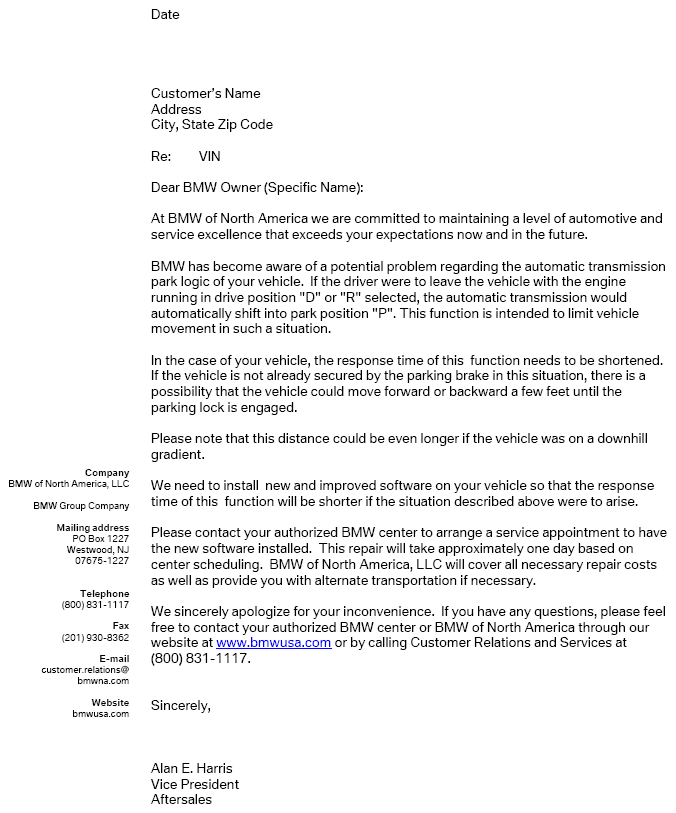

Customers will be mailed letters notifying them of the Service Action shortly (copy of the customer letter is attached).
To minimize customer's inconvenience caused by this Service Action, you are being asked to pick-up (and deliver after repair), if necessary, the affected vehicle from customer's home, and provide appropriate alternative transportation.
Customers will be impressed when you return their cars cleaned inside and out and with a full tank of gas. Reimbursement information for the vehicle fueling and valet costs can be found in the Warranty portion of this bulletin.
AFFECTED VEHICLES
This Service Action involves E70 X5 vehicles with N62TU and N52K engines which were produced from SOP to 12/21/2006.
In order to determine if a specific vehicle is affected by this Service Action, it will be necessary to utilize the "Service Menu" of DCSnet (Dealer Communication System) or the Key Reader. Based on the response of the system, either proceed with the corrective action or take no further action. The Chassis Number Ranges listed below are only for informational purposes and are not to be considered as the only deciding factor.
| Model | Chassis Number Range |
|---|---|
| X5 3.0si | LY74717 - LY78516 |
| X5 4.8i | LY63658 - LY66311 |
CORRECTION
Perform a complete vehicle coding, programming control units as necessary, using the latest version of Progman.
PROCEDURE
Code the complete vehicle per SI B09 05 01 (Coding, Individualization, and Programming), procedure E, using Progman V24.02.00 or higher.
Only E70 vehicles with a current integration level of E070-06-12-540 or less are affected.
If the display only shows the "BMW logo", it is necessary to run the "Recreate boot file" service function in diagnostics. Refer to SI B65 49 06 for further information on this procedure.
This service function is accessible by the path:
Function selection / Service functions / Car Communication Computer
LABEL INSTRUCTIONS
This Service Action has been assigned code number 489 After the vehicle has been checked, and corrected if necessary, obtain a label (SD 92-320) and:
- emboss your BMW dealer warranty number in the middle of the label (1);
- punch out code number 489 printed on the label and,
- affix the label to the B pillar as shown.
If the vehicle already has a label from a previous Service Action/Recall Campaign, affix the new label next to the old one. Do not affix one label on top of another one because a number from an underlying label could appear in the punched-out hole of the new label.
WARRANTY INFORMATION
Covered under the terms of the BMW New Vehicle Limited Warranty.
Defect Code: 00 24 36 01 00
Labor Operation: 00 57 536 - Reimbursement via a different technical campaign
Labor Allowance: 1 FRU
Vehicle not delivered yet
Labor Operation: 00 57 537 - Program control units and perform complete vehicle coding
Labor Allowance: 13 FRU
Labor Operation: 00 57 559 - Program control units and perform complete vehicle coding (including programming of the CAS)
Labor Allowance: 14 FRU
Vehicle in customer's possession
Labor Operation: 00 57 028 - Program control units and perform complete vehicle coding
Labor Allowance: 14 FRU
Labor Operation: 00 57 029 - Program control units and perform complete vehicle coding (including programming of the CAS)
Labor Allowance: 16 FRU
Note 1: Should the vehicle be affected at the same time by another repair in which programming of control units is also required, programming may be claimed only once.
Note 2: In the case where Progman requires the replacement of control modules, or additional programming because certain control modules failed to program correctly, print out the Measures Plan and Status Report/Final Report as described in the Progman programming procedure (SI B09 05 01 ), and attach these reports to the RO in the vehicle file. This additional work should use Defect Code 00 24 36 01 00 along with a Labor Operation and Labor Allowance selected from KSD.
RE-FUELING COST
BMW of North America, LLC, will provide reimbursement to have the gas tank topped off once as required, for each vehicle affected by this Service Action. Attach the appropriate fuel purchase receipt to the repair order to document cost.
Defect Code: 85 99 00 66 NA - Refuel E70 X5 Affected by this Service Action
Sublet: Actual cost to top off the fuel tank
Sublet Code: 4
VALET COST
BMW of North America, LLC, will provide reimbursement for vehicle valet services (pick up & delivery) for each vehicle affected by this Recall Campaign. Attach the appropriate receipt to the repair order.
Defect Code: 99 99 77 77 NA - Valet Service for E70 X5 Affected by this Service Action
Sublet: $25.00
Sublet Code: 4
