61 61 ... Overview Of Windshield Washer System And Headlight Cleaning System (SRA)

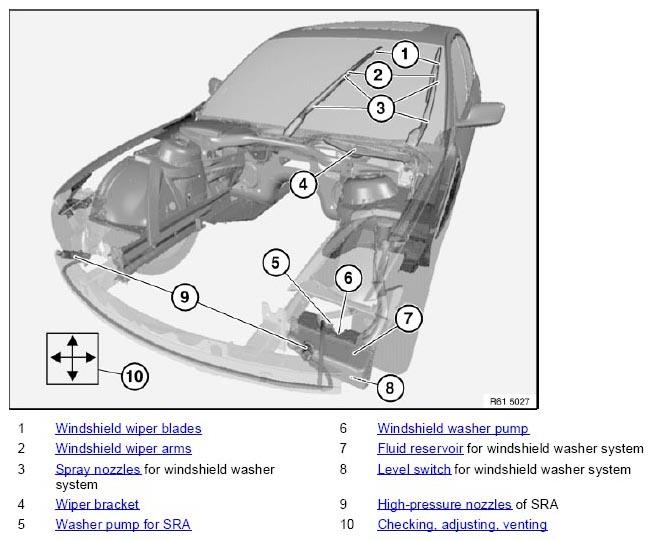

Fig 1: Identifying Windshield Washer System And Headlight Cleaning System (SRA) Components
Courtesy of BMW OF NORTH AMERICA, INC.
