63 11... Installing headlight repair kit

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove HEADLIGHT .

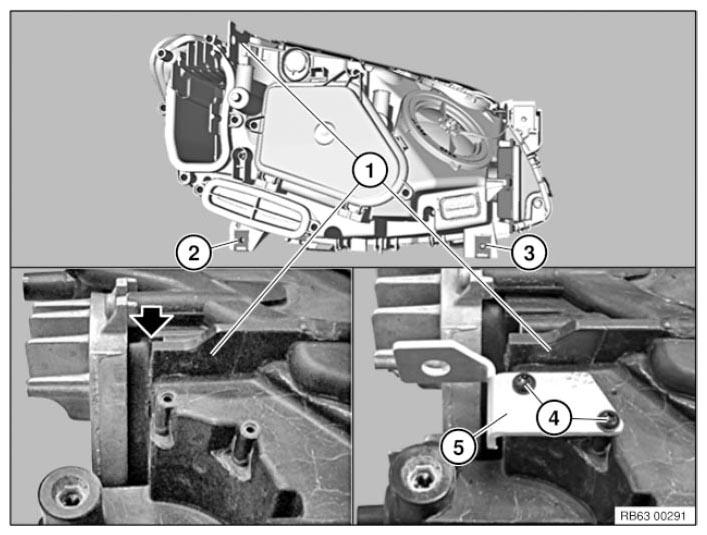

Fig 1: Identifying Headlight Retaining Tabs, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Damaged retaining tabs (1, 2, 3) can be replaced with the repair kit.
Replacement of headlight is not required!
If necessary, use screws from BMW Parts Department 7 225 228 repair kit.

Remove damaged retaining tab (1) as shown (see arrow).

Fit holder (5) and secure with screws (4).

NOTE: If necessary, drill out screw holes in holder.

Retaining tab 2 of first image:

Remove damaged retaining tab (1) as shown.

Fit holder (3) and secure with screws (4).

Slide clamp (2) onto holder (3).

Retaining tab 3 of first image:

Remove damaged retaining tab (5) as shown.

Fit holder (7) and secure with screws (8).

Slide clamp (6) onto holder (7).

NOTE: If necessary, drill out screw holes in holder.

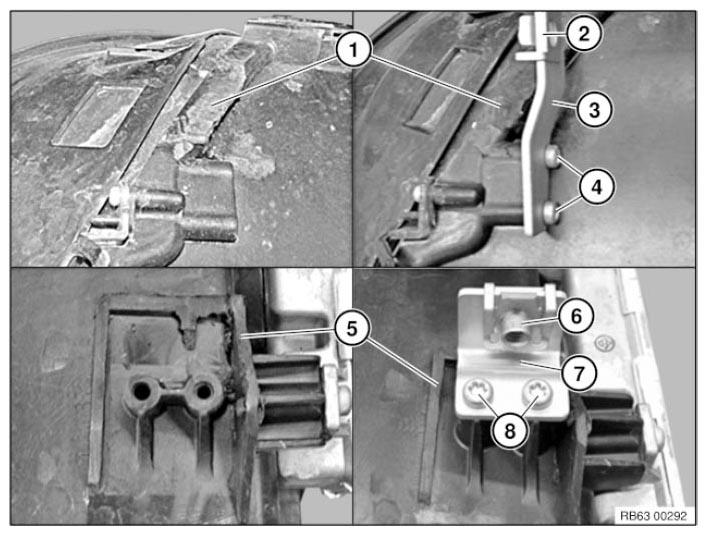

Fig 2: Identifying Holder, Retaining Tabs, Clamp And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

ADJUST HEADLIGHTS .
